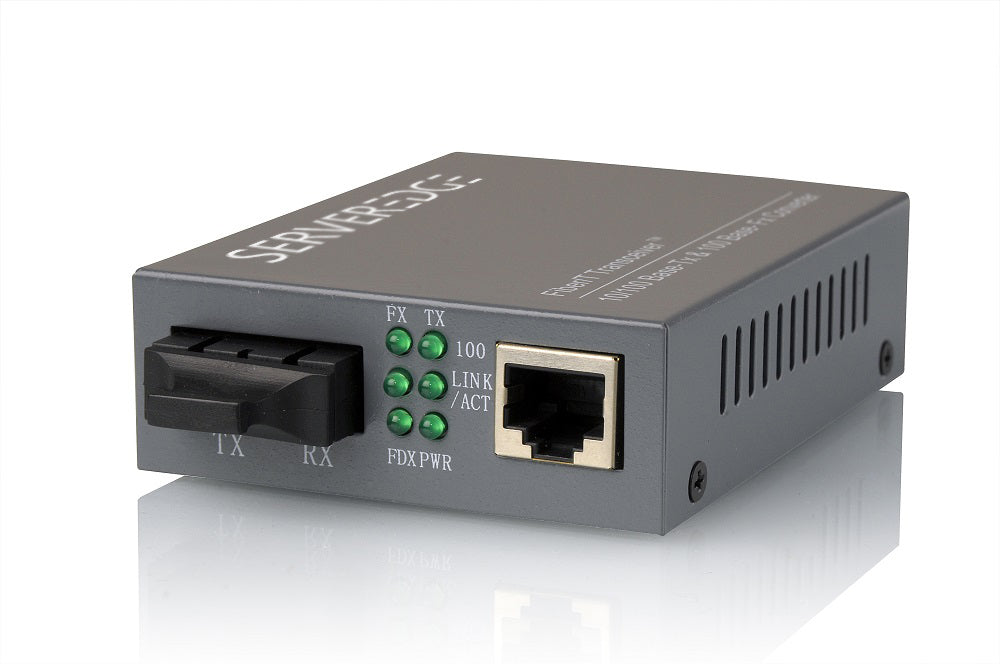

The Serveredge SED-100SSC-60 fibre media converter allows you to connect your copper infrastructure to the fibre channel and vice versa. The built-in 10/100 switch enables the fibre cable connection to operate at 100Mbps connected to either a 10BaseT or a 100BaseTX network, while remaining completely 100BaseFX standard-compliant. Fibre connection can also operate in full duplex mode whether the RJ-45 port is connected to a full duplex switch or a half duplex hub, with the built-in switch providing the network segmentation that permits the maximum fibre distance. Each media converter provides a 10/100 BaseT/TX Auto-negotiating RJ-45 twisted-pair connector port featuring store-and-forward switching architecture. Auto-MDIX capability on the twisted-pair port allows for convenient connections.
PRODUCT FEATURE
* Built-in Twisted-Pair port 10/100 Switch
* Auto-Negotiation RJ45 Connector with Auto-MDIX
* SC Connector
* LEDs for Functions, Links & Activity
* Link Fault Signaling for use with Managed Switches
* 1024 Mac Address Capacity
* Store and Forward Architecture
* Full and Half Duplex Operation
* Singlemode spans up to 60Km
* Wall or Chassis Mountable
* IEEE 802.3 10BaseT and IEEE 802.3u 100BaseTX & IEEE 802.3u 100BaseFX Compliant
* Compliant to FCC part 15 Class A, CISPR Class A, VCCI Class A, CE Mark, CTick
PRODUCT SPECIFICATION
Latency: < 4.2 μs (LIFO)
Throughput @ 100Base: 148,809 pps (64-byte packets)
Speed:
100BaseTX: 100/200 Mbps for half/full duplex
10BaseT: 10/20 Mbps for half/full duplex
Switching Method: Store-and-Forward
Maximum MAC Addresses: 1,024 entries
Memory: 256 KB
FIBRE INTERFACE, SINGLEMODE MODELS
Type: MQW Laser
Wavelength: 1300 nm nominal (1270 nm maximum, 1350 nm minimum)
Maximum Output Power: + 3.0 dBm
Minimum Output Power: - 3.0 dBm
Sensitivity: -37.0 dBm
Maximum Input Power: - 0.0 dBm
Link Power Budget: 34.0 dB
PHYSICAL CHARACTERISTICS
Case Dimensions: 110mm x 81mm x 23mm
Weight: 150 grams
ENVIRONMENTAL CHARACTERISTICS
Operating Temperature: 32°F ~ 104°F (0°C ~ 40°C)
Storage Temperature: -13°F ~ 158°F (-25°C ~ 70°C)
Relative Humidity: 10 ~ 90%, non-condensing
POWER
External power adapter: 12 Volts DC; 600 mA
Power Consumption: 5 Watts Maximum
