DIN Rail mounted termination blocks, active equipment and enclosures are employed widely in industrial applications including process control and automation, rail infrastructure and power networks.

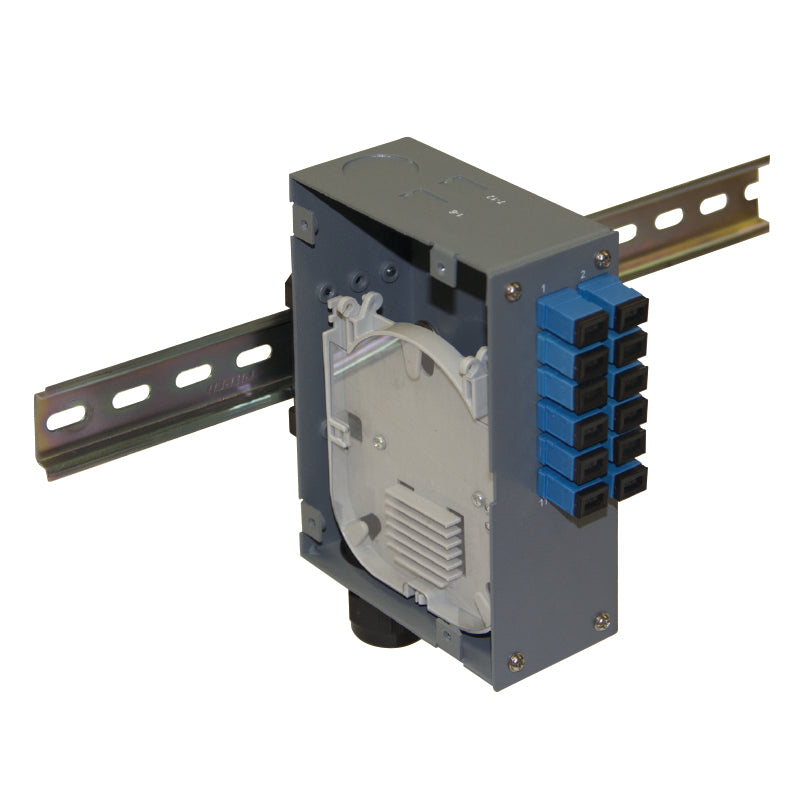

Series Alpha produces a compact DIN rail mount fibre termination enclosure that integrates seamlessly with existing DIN rail mounted equipment. These enclosures can be optioned to suit a range of cable construction types core counts and connector configurations.
Contact Series Alpha to order your DIN Rail Enclosure unloaded or fully loaded for patching, splicing or MTP solutions
PRODUCT FEATURE
* The units compact size makes it perfect for installation in limited space
* Convienient DIN Rail mounting allows for quick installation in existing termination cabinets
* Rugged housing provides protection of terminations in harsh environments
* Compact size, robust construction and industrial appearance integrates seamlessly with existing industrial equipment
PRODUCT SPECIFICATION
| Connector | LC |
| Description | 24 Port Compact DIN Rail Mount Enclosure |
| Dimensions WxHxD (mm) | 114 x 105 x 155 (w/out clip) |
| Weight (kg) | 1.4 |
| Splice Capacity (max) | 24 Fibre |
| Gland Entry Size (mm) | Ø 25 x 4 |
| Material & Colour | Mid Grey Powdercoated 1.2mm & 1.6mm Steel |
