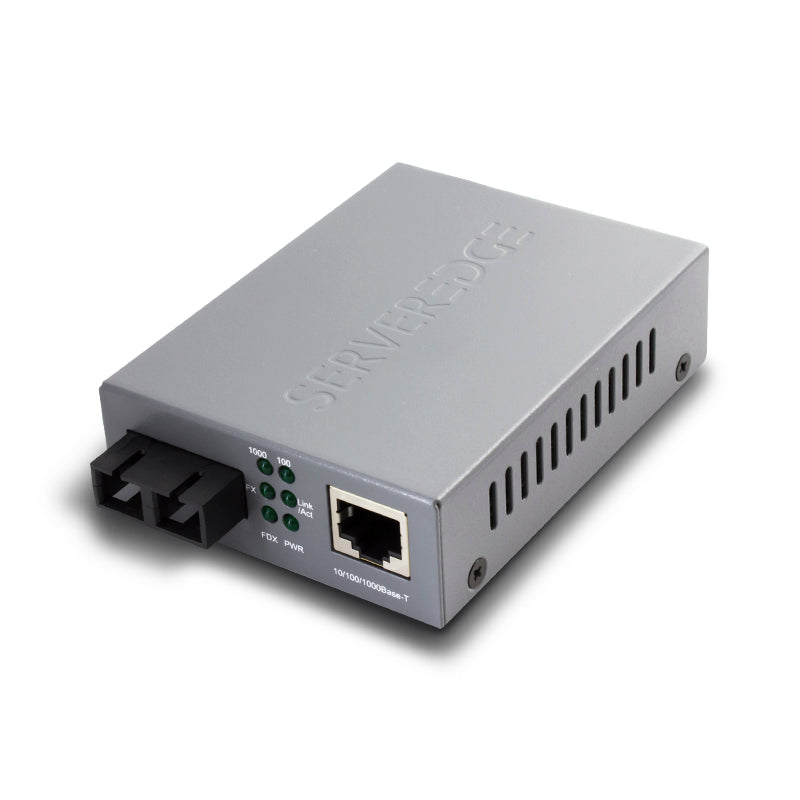

10/100/1000Base-TX to 1000Base-FX Multimode SC Fibre Media Converter (550m)

SKU: SED-1000MSC(550m)

The Serveredge Gigabit Media Converter SED-1000MSC(550m) allows you to transparently connect your Gigabit Copper cabling system (10Base-T, 100Base-TX or 1000Base-T) with the fibre optic cabling system(1000Base-FX).

2 Years
Manufacturer's Warranty



The Serveredge Gigabit Media Converter SED-1000MSC (550m) allows you to transparently connect your Gigabit copper cabling system (10Base-T, 100Base-TX or 1000Base-T) with the fibre optic cabling system (1000Base-FX). This media converter provides a long distance connection between legacy 10Base-T, 100BaseTX networks and the 1000Base Gigabit Ethernet networks. The SED-1000MSC(550m) incorporates advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Fibre Fault Alert & loop back.
This unit can be used as a standalone unit or as a slide-in module in a Media Converter Chassis.




PRODUCT FEATURE

* Built-in Twisted-Pair Port 10/100/1000 Switch

* Auto-Negotiation RJ45 Connector with Auto-MDIX

* SC, ST, MTRJ or LC Connector

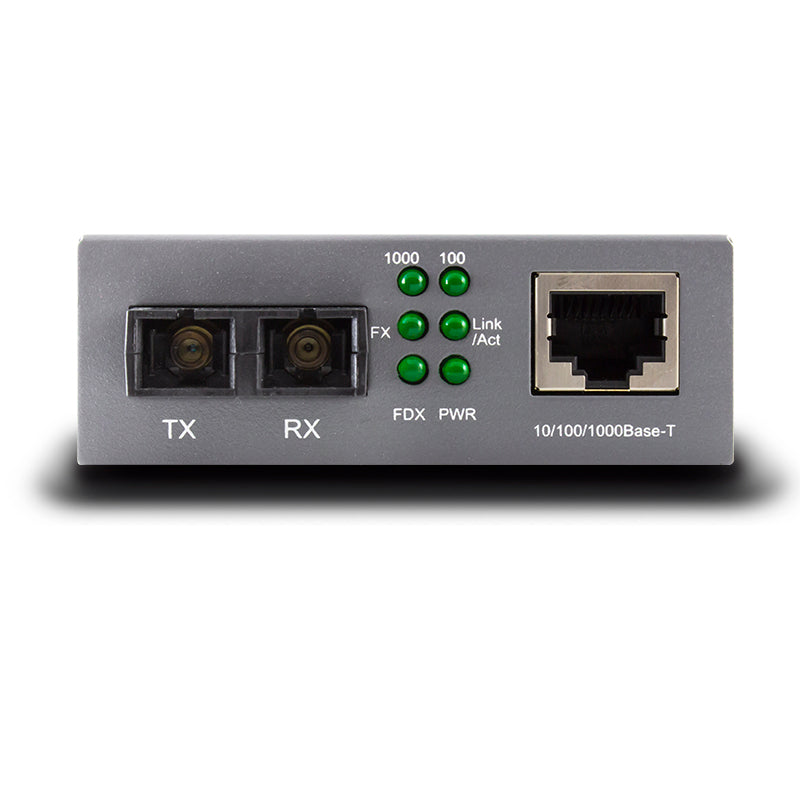

* LEDs for Functions, Links & Activity

* Link Fault Signaling for use with Managed Switches

* 1024 Mac Address Capacity

* Store and Forward Architecture

* Singlemode spans up to 12 Km

* Wall or Chassis Mountable

* Compliant to FCC part 15 Class A, CE Mark, CTick





PRODUCT SPECIFICATION

PERFORMANCE
Latency: < 4.2 μs (LIFO)
Throughput @ 100Base: 148,810 pps (64-byte packets)
Throughput @ 1000Base: 1,488,110 pps (64-byte packets)

FIBRE INTERFACE, MULTIMODE MODELS
Type: Laser Diode
Wavelength: 850 nm nominal
Maximum Output Power: - 4.0 dBm
Minimum Output Power: - 9.5 dBm
Sensitivity: -13.5 dBm
Maximum Input Power: - 13.5 dBm
Link Power Budget: 4.0 dB

PHYSICAL CHARACTERISTICS
Case Dimensions: 110mm x 81mm x 23mm
Weight:
150 grams

ENVIRONMENTAL CHARACTERISTICS
Operating Temperature: 32°F ~ 104°F (0°C ~ 40°C)
Storage Temperature: -13°F ~ 158°F (-25°C ~ 70°C)
Relative Humidity:
5% ~ 90%, non-condensing

POWER

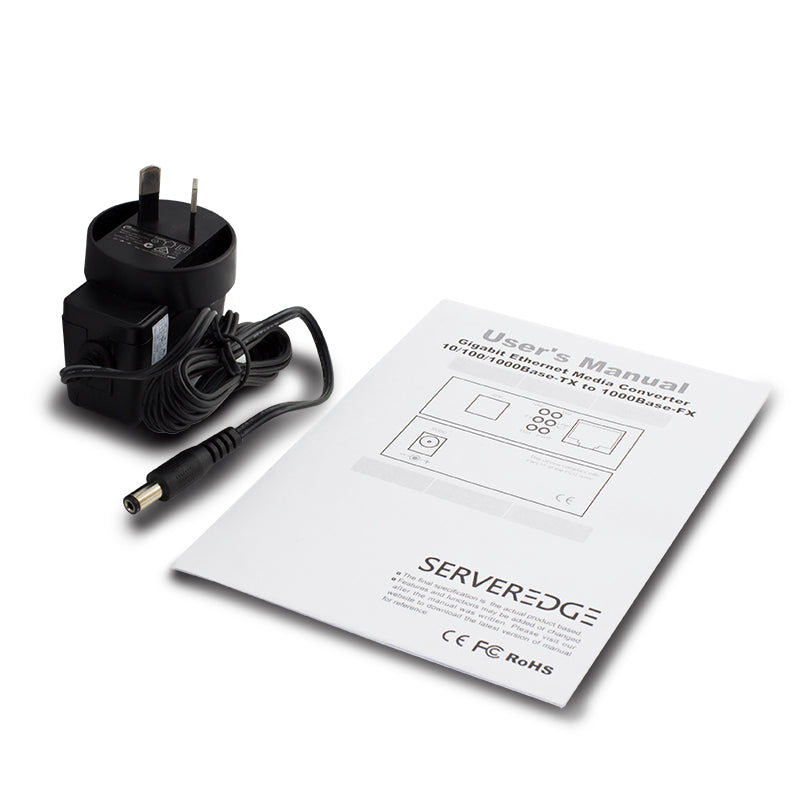

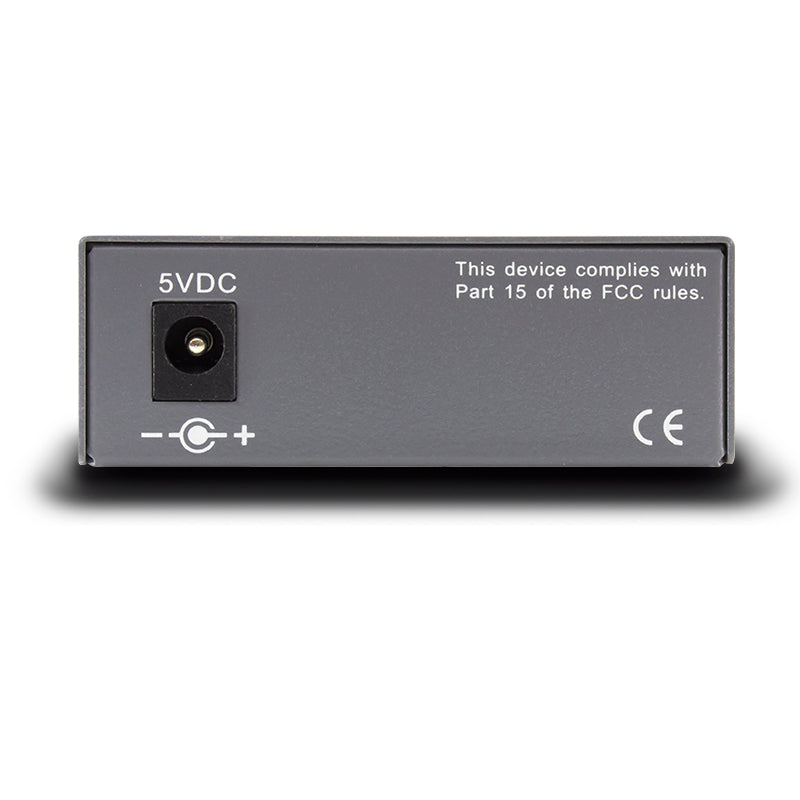

External power adapter: 5 Volts DC; 1~2A
