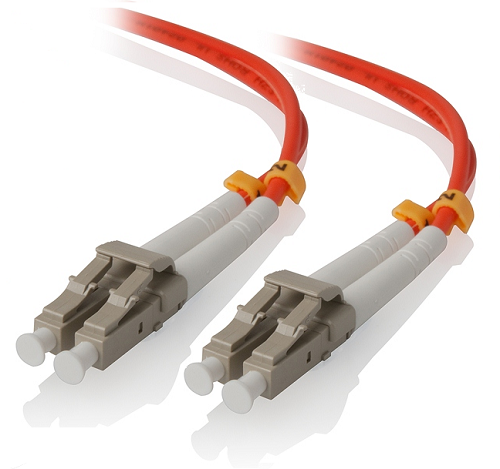

The Multi Mode OM1 cables are designed to support Gigabit Fibre & ethernet channel, the cables are capable of supporting 1Gigabit applications upto over 25m length. These Fibre Cables are constructed with the high quality components such as genuine Corning Inficore 3 glass and high grade connectors with ceramic ferrules to ensure the maximum performance accuracy and durability. The cables meet or exceed industry standard specifications; each cable is individually tested for maximum reliability and comes with performance reports.
PRODUCT FEATURE
* Multi Mode OM1 fibre optic cable
* Available in various lengths starting from 0.5m to 20m
* Low Smoke Zero Halogen Jacket for minimal toxic emissions in case of fire
* 100% optically tested and provided with test reports
PRODUCT SPECIFICATION
* Connector Type: LC, LC
* Wavelengths: 62.5 µm (OM1)/125 µm
* Attenuation: At 850 nm: <3.5 dB per km / At 1300 nm: <1.0 dB per km
* Insertion loss: <0.2 dB per 300 m @ 850 nm or 1300 nm
* Fiber: Glass
* Number of fibers: 2
* Jacket: LSZH (Low Smoke Zero Halogen)
* Cable outer diameter: 3mm +/-0.2mm
* Safety: ETL/c-ETL
AVAILABLE LENGTHS
| Part No. |
Length |
| LCLC-0.5-OM1 | 0.5m |
| LCLC-01-OM1 | 1m |
| LCLC-02-OM1 | 2m |
| LCLC-03-OM1 | 3m |
| LCLC-05-OM1 | 5m |
| LCLC-10-OM1 | 10m |
| LCLC-15-OM1 | 15m |
| LCLC-20-OM1 | 20m |
