18RU 600mm Wide & 550mm Deep Fully Assembled Swing Frame Hinged Wall Mount Cabinet


18RU Fully Assembled Hinged Wall Mounted Cabinet - 650 X 600 X 964 Toughened Glass Door, Quick Release Lockable Side Panel, L-Shaped Rails, 1 x Shelf, Cut Out Slots for Fans, 20 x M6 Screw, Nuts & Washer

BARCODE               :   9352399001139

25 Years
Manufacturer's Warranty


Serveredge wall mount rack enclosures are perfect for storing your standard rack mount equipment on a wall in locations such as wiring receptacles, POS stations and offices where access to floor space is very limited.

This Serveredge rack is made of a sturdy steel frame & can mount up to 60 Kg of rack mount hardware in 18RU of rack space. Vertical mounting rails in the rack are adjustable to the required mounting depth and can accommodate all standard 19-inch rack equipment. The wall mount rack features a tempered lockable glass door for complete visibility of your equipment and its status at all times. It also includes well-ventilated lockable side panels to ensure easy access and security of your equipment. The top, bottom and rear panels of this rack includes convenient cable routing glands to cover all possible cable entry and management options.

The rack ships fully assembled and comes with a 25 Year manufacturer’s warranty* (Please see full T&Cs for the warranty information).



• Designed for limited space environments where equipment needs to be secure and out of the way
• Adjustable front and rear vertical rack mount rails
• Locking front tempered glass door
• Lockable and removable side panel

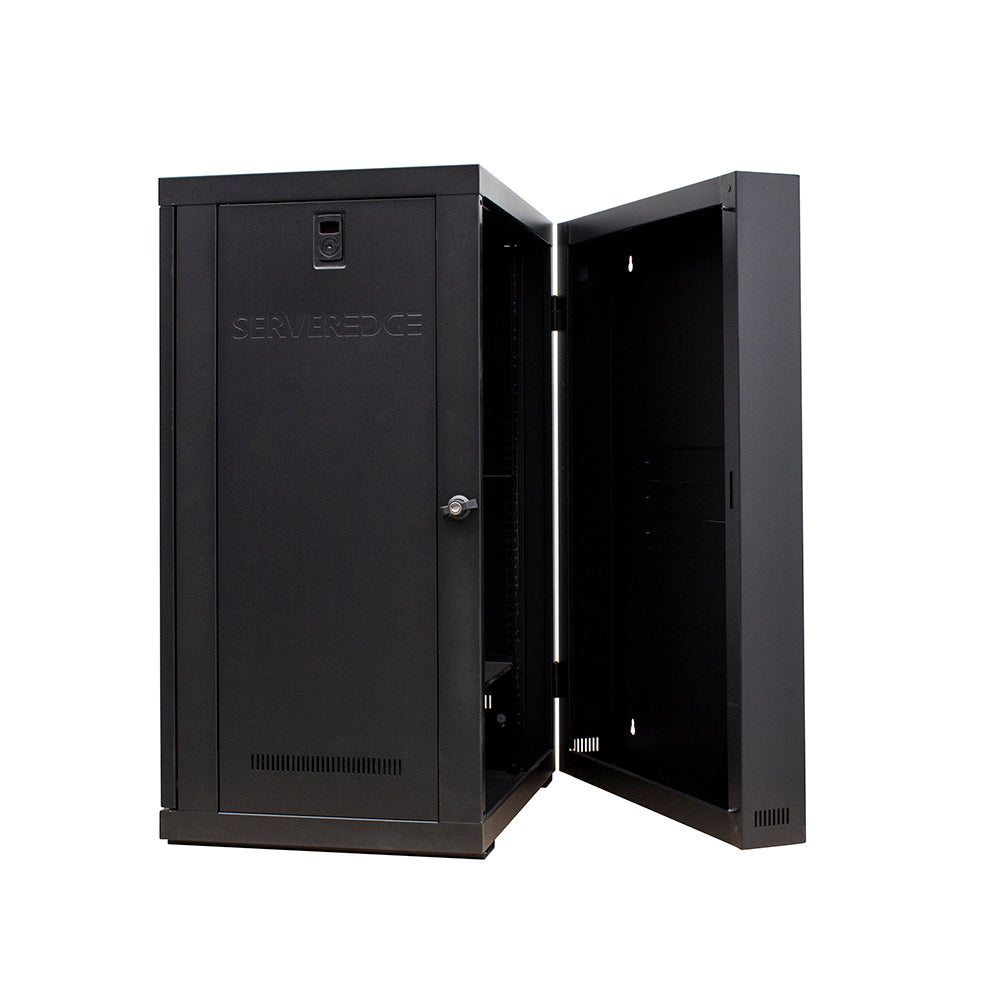

• Hinged cabinet swings away (Right to left) from wall bracket for easy equipment access
• Cable routing glands on top, bottom and rear panels of the rack
• Ground lugs on front door, side panels and main frame

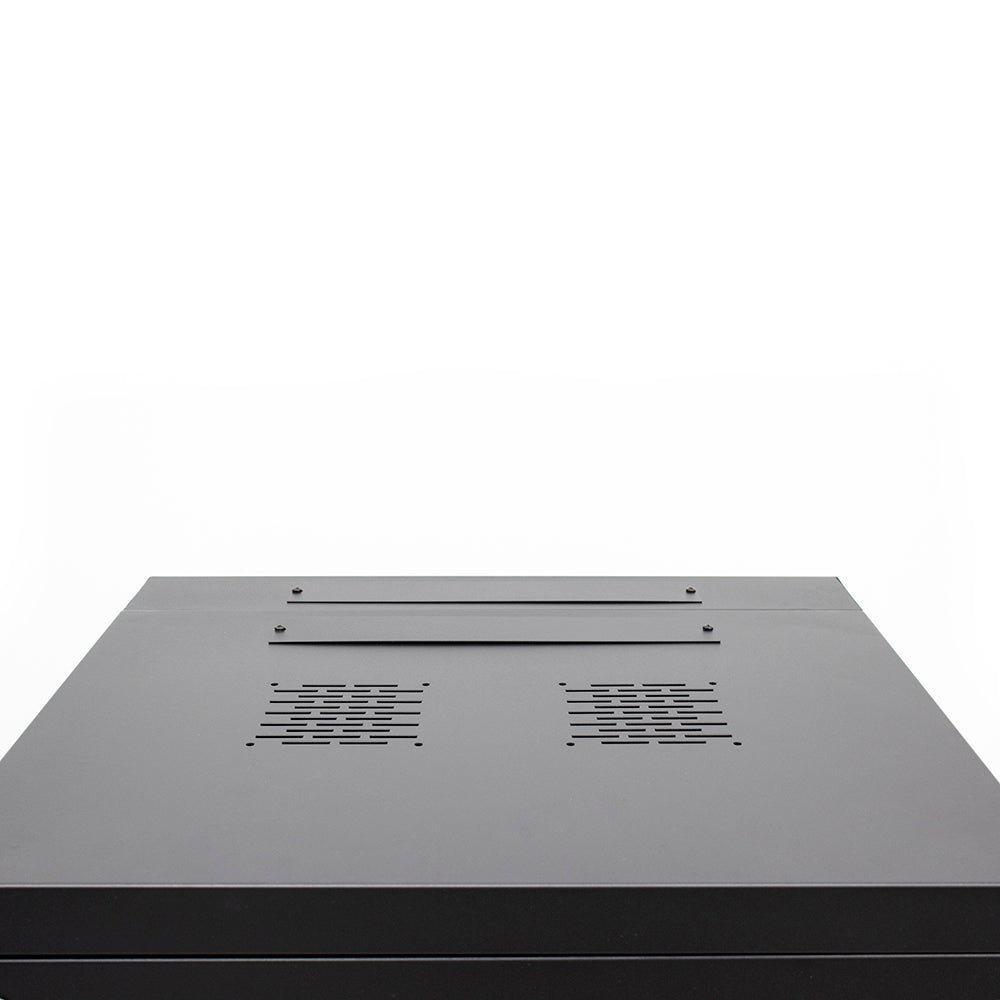

• Cut out slots for roof mount fans (Fans to be purchased separately)
• Fully assembled for quick installation
• Complaint to Standards ANSI/EIA RS-310-D, IEC297-2, DIN4191; PART1, DIN4194; PAT7, GB/T3047M 2-92
• Warranty: 25-year* T&Cs Apply. Please refer to the warranty disclosure document.



Unit Dimensions (WDH/mm) 600 X 550 [450 + 100(swing frame)] X 914
Shipping Dimensions (WDH/mm) 650 X 600 X 964
Unit Weight (Kgs) 34.8
Shipping Weight (Kgs) 37.1
Colour Black
Static Loading Capacity 80



CBN-18RU-66WM × 1
Cantilever Shelf (300mm Deep) × 1
Keys × 4
M6 Screw, Nuts & Washer × 20
Earth Cable x 1 (Installed between the front door & the frame) × 1
