19" LCD CAT6 KVM Console Rack Drawer - 16 Port CAT6 KVM USB/PS2/VGA With Optional IP Access

SKU: SED-KLC6-1619V2

19" LCD CAT6 KVM Console Rack Drawer - 16 Port CAT6 KVM USB/PS2/VGA With Optional IP Access
1 Year
Manufacturer's Warranty

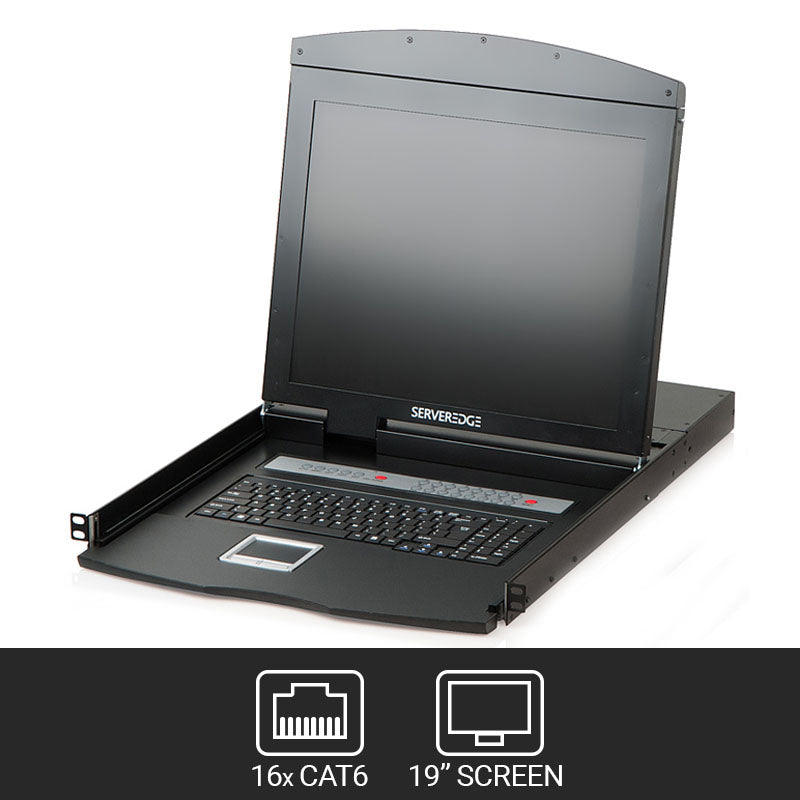

The Serveredge SED-KLC6-1619 rack console features a 19" Widescreen A Grade LCD screen and an integrated CAT5 / CAT6 - 16 port KVM switch. The keyboard is a 104 key notepad keyboard.This state-of-the-art modular rack console offers a space saving, streamlined approach to your rack environment by integrating your LCD monitor, KVM switch, Keyboard, and Mouse options in one unit.

Setup is fast and easy. Simply plug in this cutting edge modular rack console with integrated KVM and you are ready to go. To use, slide the rack console unit out and open the cover to reveal the widescreen monitor and built-in keyboard and mouse. To conserve valuable rack space, close the cover and slide the console module back out of the way when finished. Product comes with 1 Year warrenty.




• Ultra thin keyboard with keypad
• Compatible with all 1RU 19" standard cabinets
• User Friendly OSD menu
• Automatic On/Off power
• Mouse touchpad with two function button
• Compatible with PS/2, USB standard interface
• Supports maximum resolution of 1920*1080 (Native resolution of 1366*768)
• Supports multiple operating systems: WIN95/98/98SE/ME/200/XP, WIN 7, WIN NT, UNIX, LINUX
• Compliant with DDC, DDC2, DDC2B standard and VESA standard
• Supports VGA, SVGA, XGA video input




Product Dimensions

Product (W x D x H) 442.4 x 700.6 x 44.5 mm
Product Weight 15.24 kg


A Grade LCD Monitor

Diagonal Size 19" TFT
Max. Resolution 1920 x 1080
Contrast Ratio (typical) 1000:1
Viewing Angle (H x V) 160° x 160°
True Response Time (ms) 1.3
LCD Panel MTBF (hrs) 50,000
VGA Signal Input Analog RGB, 0.7Vp-p
Sync. Type Separate H/V, Composite, SOG
Plug & Play DDC EDID 1.3


KVM Switch

Simultaneous Users 1 x local
KVM Port 16 x RJ45
Connectivity VGA connector dongle up to 40 meters
Cat5/6 Cable
Local Console Monitor port: 1 x HDDB15-pin VGA, Resolution: Up to 1920 x 1440,
Input Device: 2 x USB type A for keyboard & mouse
Expansion Up to 256 servers by 8-level cascade
Compatibility Multi-platform: Mix various PC, SUN, MAC, IBM, HP & DELL servers. Support: Windows Vista / 2003 / XP / 2000, Linux, Netware, Unix, DOS


Module Options

Keyboard 104 key notepad keyboard with full numerical pad and multiple keyboard language options. PS/2 or USB support
Mouse 2 Button GlidepointTM touchpad



Operation 32° - 122°F (0° - 50°C)
Storage 23° - 140°F (-5° - 60°C)
Relative Humidity 90%, non-condensing
Shock 50G peak acceleration (11ms, half-sine wave)
Vibration 58-100Hz/0.98G (11ms/cycle)



SED-KLC6-1619 1
Rack Mount Kit 1
User Manual 1
Power Cord and Adapter 1
Installation Guide 1
Warranty Card 1
