2 Port Switched Elite Series PDU (8) IEC C13 Output & (1) IEC C14 Input, 10A, 240V


2 Years
Manufacturer's Warranty

The Serveredge Elite Series PDU’s offers convenient remote control of critical devices with just a few clicks on a smart phone or computer webpage. By cutting off power to specific outlets and restarting devices remotely, it saves time and money by eliminating the need for on-site technicians to address issues.

Managers can easily monitor power usage information for each output port from anywhere via the Internet, gaining valuable insights into device power consumption. Overload event alerts can be set up, notifying managers via Email and TRAP, allowing them to respond quickly to crises and minimize potential disasters.

The Elite Series PDU’s features two environmental sensor ports for tracking temperature and humidity variables, providing crucial climate information accessible from any web browser. With SNMP compliance, critical data can be easily tracked without external software. The included central management software efficiently handles a large number of PDUs, managing power, temperature, and humidity information, while the database stores power consumption data and offers history curve charts for reference. Stay in control and optimize your infrastructure with the Elite POM PDU's intelligent power management and monitoring capabilities.


System Function

  • Built-in embedded system:

Support 10/100M Ethernet interface, provides webpage and SNMP remote management.

  • Local display information:

Seven-segments can display current, IP address and temperature and humidity values.

  • Multiple protocols:

Support ICMP, ARP, IP, TCP, UDP, DHCP, HTTP, HTTPS, FTP, NTP, SNMP v1/2/3, TLS1.2, IPv4 and IPv6, Telnet, SSHv2

  • Management Account Certification:

Radius certification support.

  • Multi-account management:

Multi-group account management system. And provide three-tier permission management.

  • IP filtering:

Support IP filtering, improve network security mechanisms.

  • Power record:

Store up to 100000 power and event data.

  • Remote firmware upgrade:

Provides remote firmware upgrade mechanism.

  • System operation message:

Send the normal operation of the message automatically by trap.

  • Hardware key definition:

User-definable button function.

  • Temperature unit conversion:

Temperature units can choose Celsius or Fahrenheit

  • System configuration restore:

Support the output of the system settings, to easily deploy a large amount of the same model of PDU.

  • Multilingual Support:

Support Chinese, English, French, German, Spanish, Russian, Czech, Arabian, Persian.


Power Management

 Remote Control

Remote per outlet on/off by web and SNMP.


Mail Notification

Notify specified user by mail and SNMP when outlet action.

Ping Event Control

When the specified IT device does not respond to PING, the output will perform a preset power action.

Power Sequence

User-definable power on/off sequence time.

Group Control

Set multiple outlets as a single group while controlling the power output.


Schedule Control

Timed & scheduled on/off/reboot control.


Event Reaction

Outlet action via pre-set event, including power, environment event and receiving trap from another device.


Environment Detection

Optional accessory probe to detect temperature and humidity.







200-240 VAC


200-240 VAC

Max. Current

10 A


50/60Hz, full range


(2) C13

Max. Capacity

2400 VA


(2) Green LED @ Front


C14 Inlet

(2) Green LED @ Back

Power Ind.

(1) Red LED @ Front

(1) Red LED @ Back




          ENET Connection

        (1) RJ45

ENV Connection

(1) RJ11

Function Selection

(1) Hole

Signal Ind.

(1) Yellow LED @ Front

(1) Yellow LED @ Back

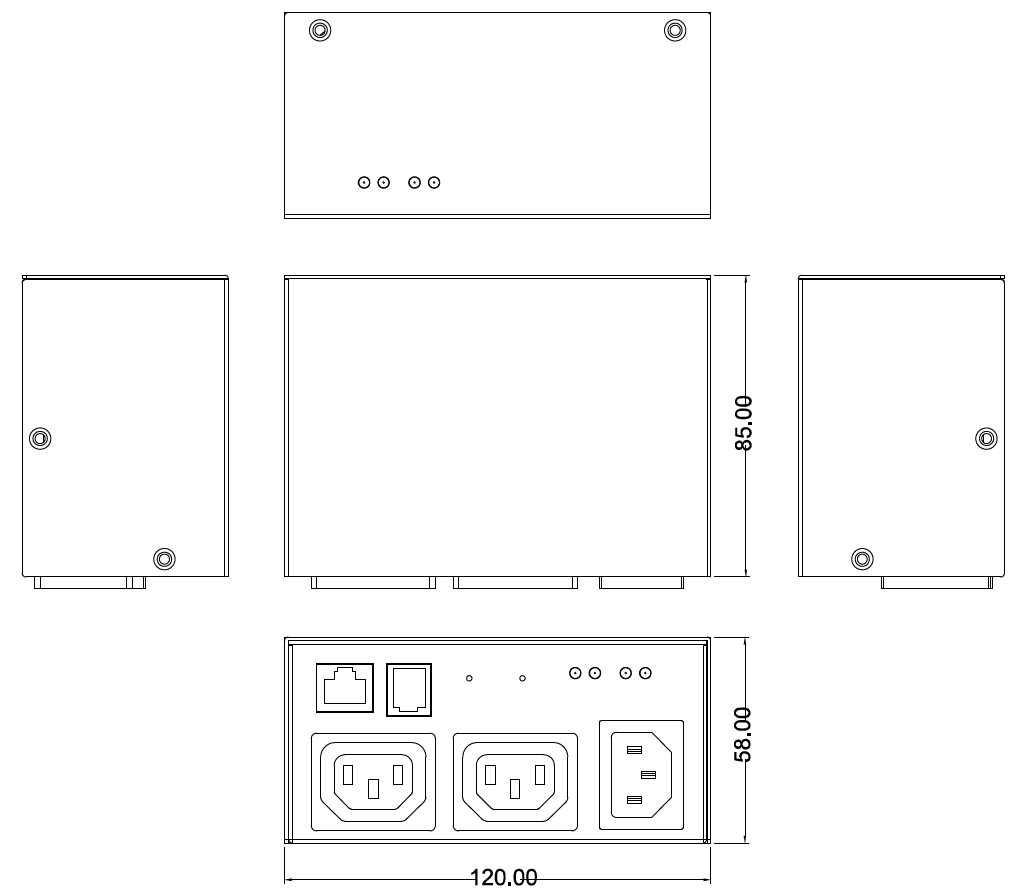

Net Size

120 x 85 x 58 mm

Operation Temp.

0 ~ 50℃

Net Weight

0.87 kg

Operation Humid.

0% ~ 90% RH

Package Size

230 x 175 x 65mm

Storage Temp.

-20℃ ~ 65℃

Package Weight

1 kg

Storage Humid.

0% ~ 90% RH





2 years
