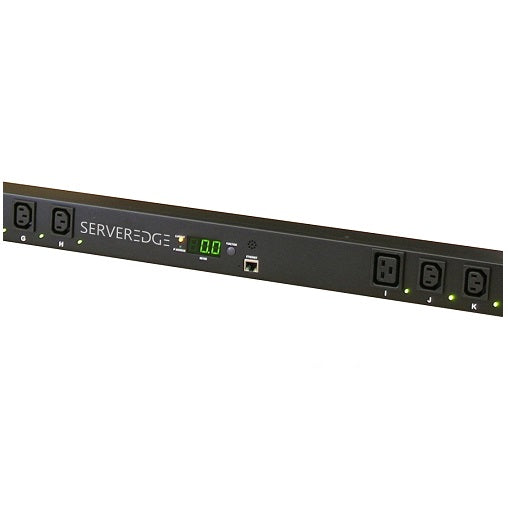

Serveredge Switched rack mountable PDU (SEDG-24PSW-C13C16-32A) provides 21 X IEC 13 outputs & 3 X IEC19 outputs to power all your rack equipment with a 3mtr 32A IP56 3 Pin Round Captive Input Plug. The PDU is vertically mountable and saves valuable rack space. The Serveredge switched PDU enables the user to control and monitor the power remotely. The web based interface allows the user switch on/off functionality for power cycling of connected equipment remotely on each individual output port. A true digital RMS meter allows real time current monitoring of the connected equipment with data logging and reporting. It allows for a user defined alarm threshold for overloads and warnings. Optional SEDG-ENHD probe is available to support temperature and humidity monitoring
PRODUCT FEATURE
* Remote power management (Power cycling/ Monitoring) of connected equipment
* 21 X IEC 13, 3 X IEC C19 Output & 3mtr 32A IP56 3 Pin Round Captive Input Plug
* Full-featured network management interface via Http, Https, SNMP, DHCP, UDP protocols
* Allows user with Individual outlet control for remote switch on/off (power cycling)
* Capabale of Total Remote Power Monitoring by Meter, Web, SNMP, Free Bundle Software via the True RMS current meter
* Supports user defined alarm threshold for overloads and warnings raised by sending emails and traps information in case of a threshold breach.
* Email, Trap, Audible Alarm can be set up by user as alarms
* Optional probe to support temperature and humidity monitoring [SEDG-ENHD]
WARNING: It is recommended that no more than one device be power on each output port, not complying with this recommendation may result in a void of warranty.
PRODUCT SPECIFICATION
General |
|
Output |
IEC 320 C13 x 21 |
Input |
IEC 320 C20 with 3mtr 32A IP56 3 Pin Round Captive Plug x 1 |
Network |
RJ45 |
Current Meter | 3 Digits Seven Segments for True RMS Meter, Range: 0A ~ 20 A, Resolution-0.1A, Precision: +/-2%+/-0.1AMP |
Connectivity Status |
|
DHCP Indication | Green LED Light |
SSL Indication | Yellow LED Light |
Output Status | Green LED Light/port |
Power Ratings |
|
Voltage | 200~240 V |
Frequency | 50-60 Hz |
Current | 32A Maximum |
Environmental |
|
Temperature | 0 ~ 40 Degree Celsius |
Humidity | 0% ~ 90% |
PACKAGING INCLUDES
SEDG-24PSW-C13C16-32A | 1 |
Rack Mount Kit | 1 |
User Manual | 1 |
Free Bundled Software | 1 |
