The Multi Mode OM3 cables are designed to support high transfer speed, the cables are capable of supporting up to 1 gigabit applications at the same time being backward compatible with 5 /125 OM2 infrastructure. The cables meet or exceed industry standard specifications; each cable is individually tested for maximum reliability and comes with performance reports.
PRODUCT FEATURE

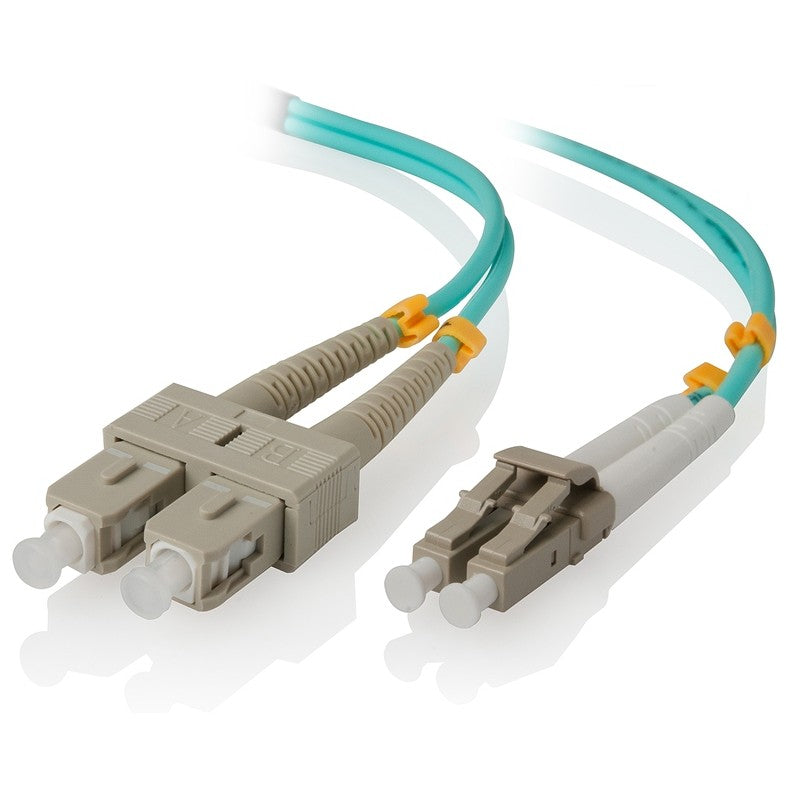

* Multi Mode OM3 fibre optic cable
* Available in various lengths starting from 1m to 25m
* Low Smoke Zero Halogen Jacket for minimal toxic emissions in case of fire
* 100% optically tested and provided with test reports
PRODUCT SPECIFICATION
* Connector Type: LC, SC
* Wavelengths: 50 µm (OM3)/125 µm
* Attenuation: At 850 nm: <2.3 dB per km / At 1300 nm: <0.6 dB per km
* Insertion loss: <0.2 dB per 300 m @ 850 nm or 1300 nm
* Fiber: Glass
* Number of fibers: 2
* Jacket: LSZH (Low Smoke Zero Halogen)
* Cable outer diameter: 3mm +/-0.2mm
* Safety: ETL/c-ETL
AVAILABLE LENGTHS
| Part No. |
Length |
| LCSC-01-OM3 | 1m |
| LCSC-02-OM3 | 2m |
| LCSC-03-OM3 | 3m |
| LCSC-05-OM3 | 5m |
| LCSC-10-OM3 | 10m |
| LCSC-15-OM3 | 15m |
| LCSC-20-OM3 | 20m |
| LCSC-25-OM3 | 25m |
