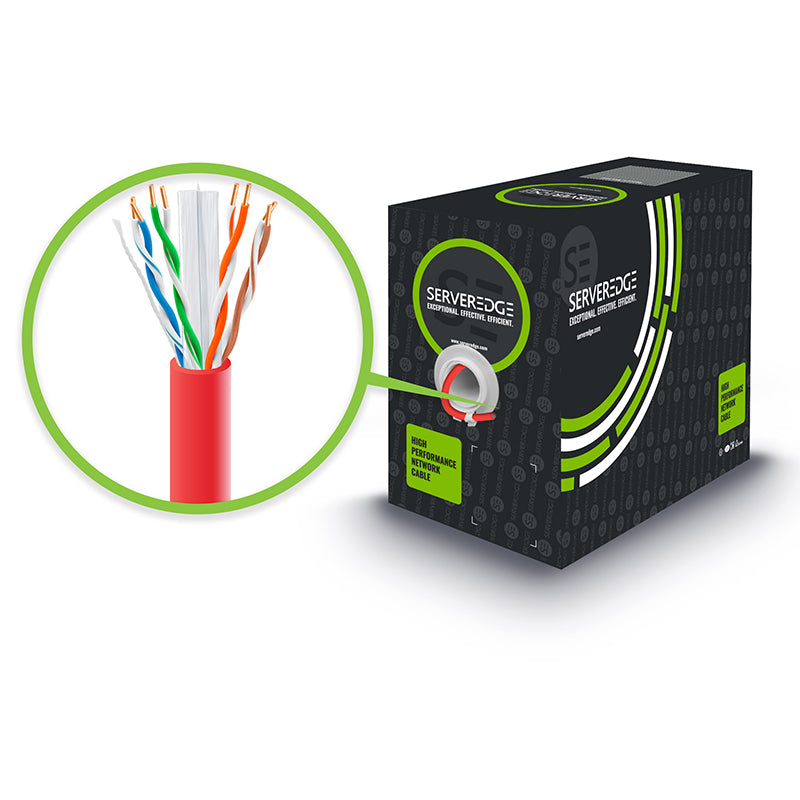

305m 23AWG Red PVC Solid CAT6 Network Cable - UTP / 4 Pair


The CAT6 solid cable is used mostly in bandwidth-intensive voice, data, or video distribution applications.

25 Years
Manufacturer's Warranty


Serveredge CAT6 305m Network Cable - UTP, Solid, PVC, 23AWG can be used to connect a variety of devices in a high-speed network.  The cable is twisted in pairs, separated by an integrated pair divider, and protected by a PVC jacket. It is packaged in an easy to use pull box carton.  The cable meets and exceeds all CAT6 TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). The cable is made from the highest quality copper to maximize performance and minimize Near-End Crosstalk (NEXT).




• ISO/IEC 11801 Ed. 2.2 (Class E)
• IEC 61156-5:2009 (Category 6)
• ANSI/TIA-568-C.2 (Category 6)
• Supports all applications designed to operate over Category 6 or lower rated systems
• Sequential measurement markings on jacket
• Come in a variety of colours
• Easy & Effective to use pull box packaging
• Supports up to 1000BASE-T applications
• 25 Year Warranty




Sheath material: PVC
Wall thickness of sheath: 0.50mm
Rip cord under sheath: Yes
Insulation material: High-density polyethylene
Insulation thickness: 0.23mm
Conductor material: Soft annealing bare copper wire
Cable construction: 4 twisted pairs stranded together.
Cable colours: White/Blue, White/Orange,
White/Green, White/Brown
Twisted pair lay length: ≤38mm




Serveredge products are manufactured to the highest standards using high quality materials at an affordable price. This Serveredge product comes standard with a 2 year standalone warranty or a 25 years warranty as part of a certified structured cabling system. Subject to Serveredge Terms and Conditions*
