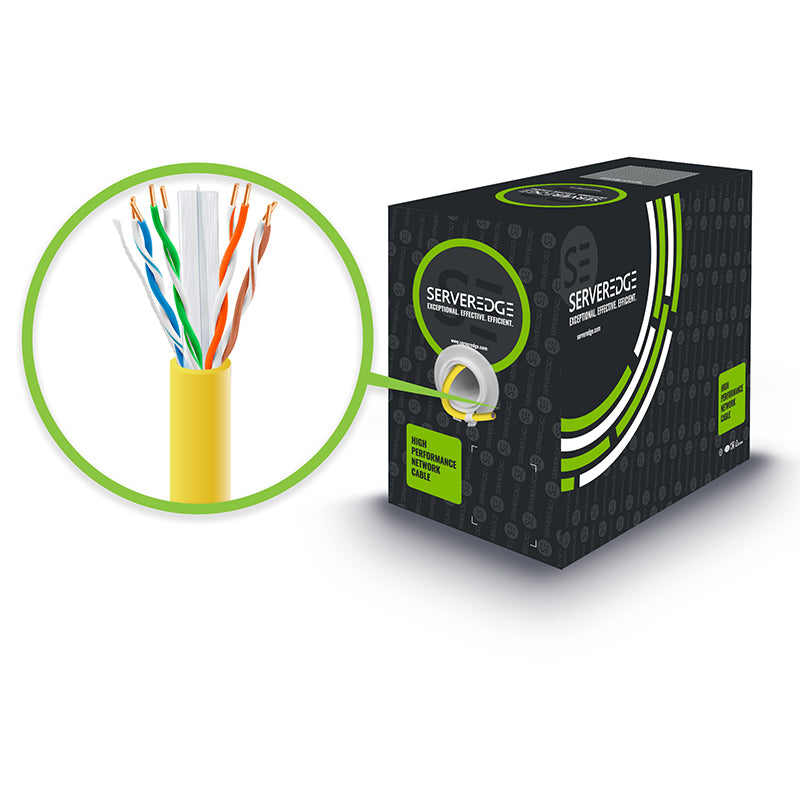

305m 23AWG Yellow PVC Solid CAT6 Network Cable - UTP / 4 Pair


The CAT6 solid cable is used mostly in bandwidth-intensive voice, data, or video distribution applications

25 Years
Manufacturer's Warranty

Serveredge CAT6 305m Network Cable - UTP, Solid, PVC, 23AWG can be used to connect a variety of devices in a high-speed network.  The cable is twisted in pairs, separated by an integrated pair divider, and protected by a PVC jacket. It is packaged in an easy to use pull box carton.  The cable meets and exceeds all CAT6 TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). The cable is made from the highest quality copper to maximize performance and minimize Near-End Crosstalk (NEXT).



• Supports all applications designed to operate over Category 6 or lower rated systems

• Sequential measurement markings on jacket

• Packaged in an easy to use pull box carton

• Ideal for running inside walls

• Comes in a varierty of colors


Sheath material: PVC

Wall thickness of sheath: 0.50mm

Rip cord under sheath: Yes

Insulation material: High-density polyethylene

Insulation thickness: 0.23mm

Conductor material: Soft annealing bare copper wire

Cable construction: 4 twisted pairs stranded together

Cable colours: White/Blue, White/Orange, White/Green, White/Brown

Twisted pair lay length: ≤38mm

Standards Compliance
• ISO/IEC 11801 Ed. 2.2 (Class E)
• IEC 61156-5:2009 (Category 6)
• ANSI/TIA-568-C.2 (Category 6)
• Supports up to 1000BASE-T application



Serveredge products are manufactured to the highest standards using high quality materials at an affordable price. This Serveredge product comes standard with a 2 year standalone warranty or a 25 years warranty as part of a certified structured cabling system. Subject to Serveredge Terms and Conditions*
