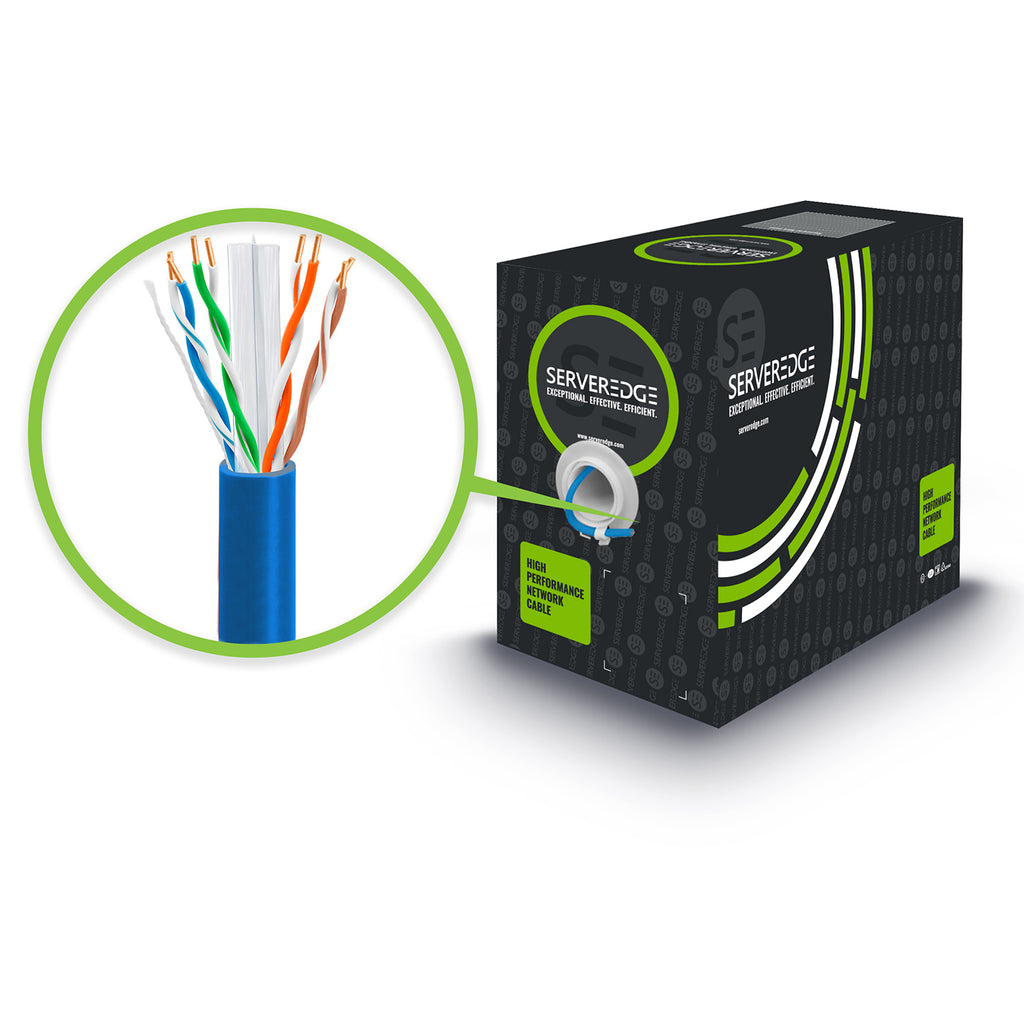

Serveredge CAT6A 305m UTP Solid Network Cable can be used to connect a variety of devices in a high-speed network. The cable is twisted in four pairs and protected by a PVC jacket. It is packaged in an easy to use pull box carton. The cable is made from the highest quality copper to maximize performance and minimize Near-End Crosstalk (NEXT)..
PRODUCT FEATURE
• ISO/IEC 11801 Ed. 2.2 (Class EA)
• IEC 61156-5:2009 (Category 6A)
• ANSI/TIA-568-C.2 (Category 6A)
• Supports all applications designed to operate over Category 6A or lower rated systems
• Sequential measurement markings on jacket
• Easy & Effective to use pull box packaging
• Supports up to 10GBASE-T applications
• 25 Year Warranty
PRODUCT SPECIFICATION
Sheath material: PVC
Wall thickness of sheath: 0.50mm
Rip cord under sheath: Yes
Insulation material: High-density polyethylene (HDPE)
Insulation thickness: 0.22mm
Conductor material: Soft annealed bare copper wire
Cable construction: 4 twisted pairs stranded together
Cable colour: Blue
Twisted pair lay length: ≤38mm
GUARANTEE / WARRANTY
Serveredge products are manufactured at the highest standards using highest quality materials at an affordable price.
This Serveredge product comes with a 2 years warranty standalone or a 25 years warranty as part of a certified structured cabling
project.
Subject to Serveredge Terms and Conditions*
