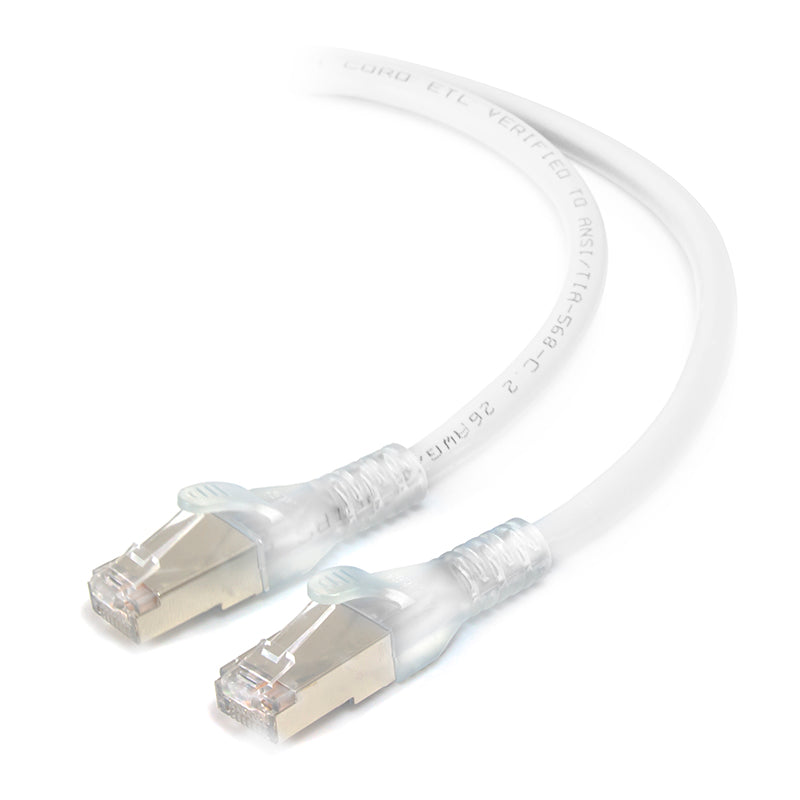

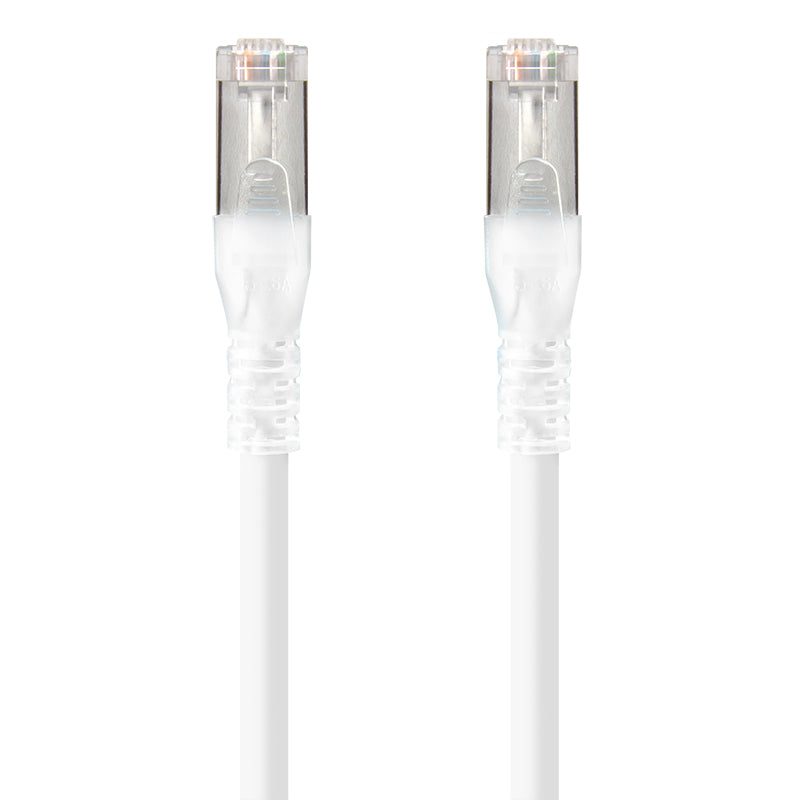

3m White 10GbE Shielded CAT6A LSZH Network Cable

SKU: C6A-03-WHITE-SH

3m White 10GbE Shielded CAT6A LSZH Network Cable

Lifetime
Manufacturer's Warranty


The Cat6A shielded cables are designed to meet and exceed the requirements for the next generation 10 GBASE-T applications. The cabling system provides an End to End solution that provides a guaranteed 75 Mhz of usable bandwidth. The solution consists of Pre-Terminated Cables, Patch Panels, Modular Jacks, Connectors and Bulk Installation Cables.



PRODUCT FEATURE

* Performance rated for 750 MHz bandwidth

* Suit for up to 10G LANS, include 10GBASE-T Ethernet, 1000BASE-TX Fast Ethernet and Lower

* Each twisted pair in the cable is individually wrapped in aluminium foil Mylar (100% Coverage)

* Overall Copper Braided Shielded

* Comes with LSZH (Low Smoke Zero Halogen) Jacket

* Category 6A SFTP cable wired straight through. 26 AWG, gold plated 8x8 (RJ45) plugs

* Snag-free strain relief molded boot provides secure and accurate connection

* Suppresses ANEXT (Alien Near End Cross Talk) and delivers superior 10GbE performance up to 100mt

* A-Tick Compliant as per ACMA requirement

* ETL verified to TIA/EIA-568C.2.1 Category 6a

* Compliant to IEC 802.3an standards & ISO/IEC 11801

* UL Approved

* Lifetime Warranty



PRODUCT SPECIFICATION


* Wiring Scheme: T568A

* Standard: Category 6a TIA/EIA-568C-2.1

* Connector: 50 micron gold-plated RJ45

* Temperature Rating: 75°C

* Voltage Rating: 30V

* Approvals: A-Tick, ETL, UL, IEEE, RoHS Compliant

* Package Type: Polybag

* Jacket: LSZH (Low Smoke Zero Halogen)

* Connector Type: 8P8C (RJ45)

* Conductor Type: 26AWG (7/0.16) Stranded Bare Copper





AVAILABLE LENGTHS


Part No.
Length
C6A-0.3-WHITE-SH 0.3m
C6A-0.5-WHITE-SH 0.5m
C6A-01-WHITE-SH 1m
C6A-1.5-WHITE-SH 1.5m
C6A-02-WHITE-SH 2m
C6A-03-WHITE-SH 3m
C6A-05-WHITE-SH 5m
C6A-10-WHITE-SH 10m
