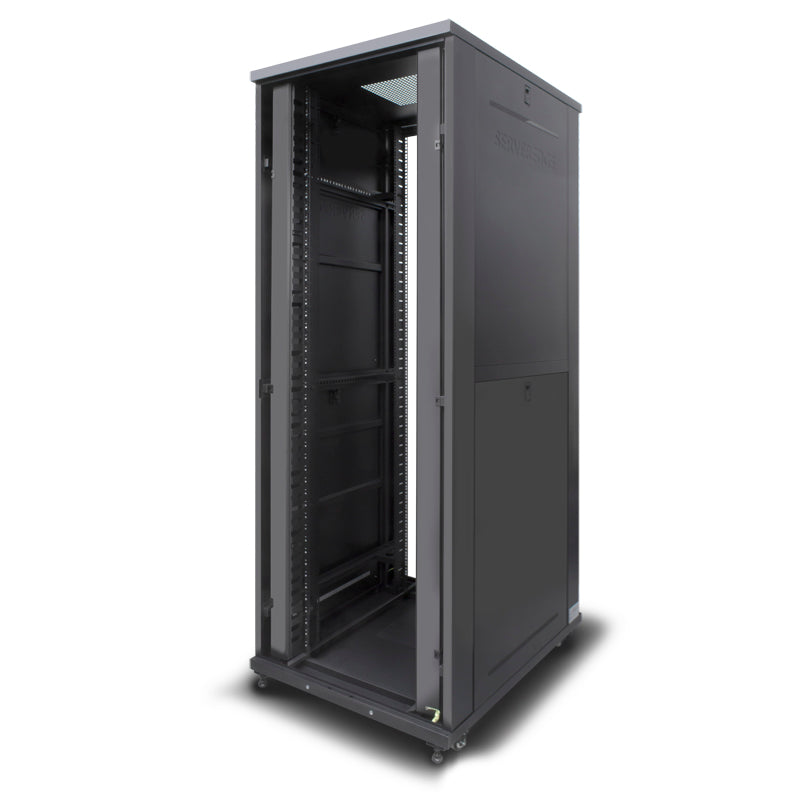

Serveredge ESSENTIALS series fully assembled server racks is a perfect solution to option a server rack as per your requirement. The Rack includes the frame, lockable side panels, roof, bottom, 4 x Levelling Feet, 4 x Castors with Brakes, 2 x Vertical Cable Management Rails and RU marked mounting rails. All other parts such as Doors, Fan Kits, PDUs, Shelves, additional Cable Managers & Trays and other accessories can be ordered from a variety of options to suit the need of the application environment. The Serveredge racks are suitable for securely storing your high-density server & standard rack mount equipments in data centres and computer room environments. The rack comes equipped with features like top-panel cable routing ports, adjustable mounting rails, split lockable side panels and more.
PRODUCT FEATURE
* 1000 Kg of stationary load capacity
* Ships fully assembled for quick installation
* Locking removable split side panels
* Confirm to Standard ANSI/EIA RS-31 -D, IEC297-2, DIN4191; PART1, DIN4194;PAT7, GB/T3 47M 2-92
* 25-year warranty
PRODUCT SPECIFICATION
| Installed whole system maximum rack depth (mm) | 1100 |
| Rack Height | 48RU |
| Shipping Dimensions (WDH/mm) | 850 X 1250 X 2358 |
| Shipping weight (kg) | 128 |
| Unit Dimensions (WDH/mm) | 800 X 1200 X 2258 |
| Unit weight (kg) | 120 |
| Colour | Black |
| Weight Capacity - Stationary (kg) | 1000 |
| Grounding lug | Front Door, Back Door, Side Panel and Frame |
PACKAGING INCLUDES
| Frame (Including roof & bottom) | 1 |
| Pair of Split Side Panels | 2 |
| Braked Castor Kit | 4 |
| Levelling feet | 4 |
| Earthing Cable | 1 |
| Full Height RU Marked and Notched Mounting rails | 4 |
| Vertical Cable Management Rail | 2 |
