4K2K HDMI HDBaseT Extender Kit Over Single Cat5e/CAT6 with 3D - Upto 100 meters


The Serveredge 3D HDMI HDBaseT Extender transmits full uncompressed 3D HD video and audio over CAT5e / 6 cable of up to 100/70 meters.
2 Years
Manufacturer's Warranty


The Serveredge HD-EXR-100-HDBT is a 4K2K HDMI over HDBaseT extender kit (Tx/Rx) for HDMI transmission up to 100 meters (UHD resolution up to 70m) over a single CAT5e/CAT6/CAT6A cable with Bi-directional IR control capability. The kit is HDCP compliant and supports HDMI up to 10.2Gps, including support for 1080p 60, Deep Colour, HD-3D, 4Kx2K video, HD Audio Formats and Audio Return Channel. It only needs power supply at either Transmitter or Receiver end.

It’s an advanced and inexpensive all-in-one connectivity solution to minimise-cost with use of only a single CAT cable betweenTransmitter and Receiver. its perfect for applications like hospitality (hotels, conference rooms), digital signage (airports, shopping malls), surveillance cameras, whole-home networking, and point-to-point consumer applications.




4K/UHD capability
Supports Ultra High Definition sources and displays. Future proofs AV systems in preparation for technology improvements, 4K/UHD streaming services and playback devices

HDCP Compliant
Adheres to latest specification for High-bandwidth Content Protection. Allows protected content stream to pass between devices

Only Single Power Supply Required
Only requires single power supply at either transmitter or receiver end. Saves time and integration costs

Extended distance HDMI extension
Transmits HDMI signals up to 100m @ 1080P over CAT5e/6/6A or 4K/UHD up to 70m. Uses easy-to-integrate category cable for low-cost, reliable system installation

Warranty : 2 Years





Transmitter Unit

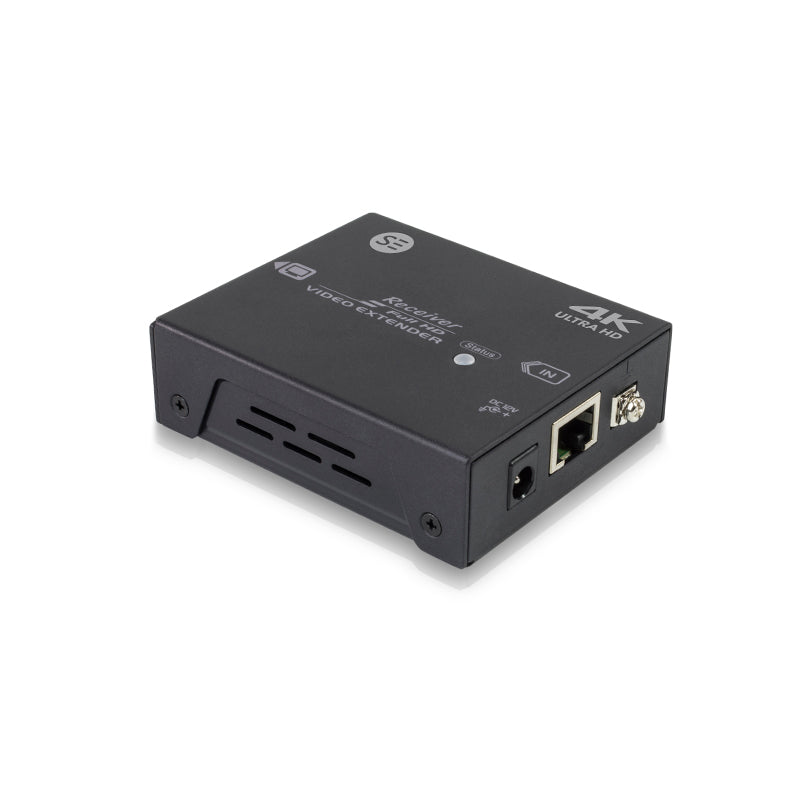

Receiver Unit


Input → Output HDMI x 1 → RJ-45 x 1 RJ-45 x 1 → HDMI x 1
LED (Link / Video status) Dual Colour x 1 Dual Colour x 1
Video Resolution (max)* UHD (3840 x 2160)
Extension Distance* Full HD 1920 x 1080 @ 100M
UHD 3840 x 2160 @ 70M
Power Supply DC 12V
(Single power supply at either one end of
two units (Tx & Rx))
Enclosure Metal
Weight 120 195
H x W x D (mm) 22 x 52 x 80 25 x 67 x 80


*Above video resolution and extension distance are based on a single CATx 24AWG solid cable without cascade. STP cabling is recommended for environments with high EMI or RFI. For the best performance results, using stranded cabling or other thinner cables, and coiling of excess cable lengths should be avoided.

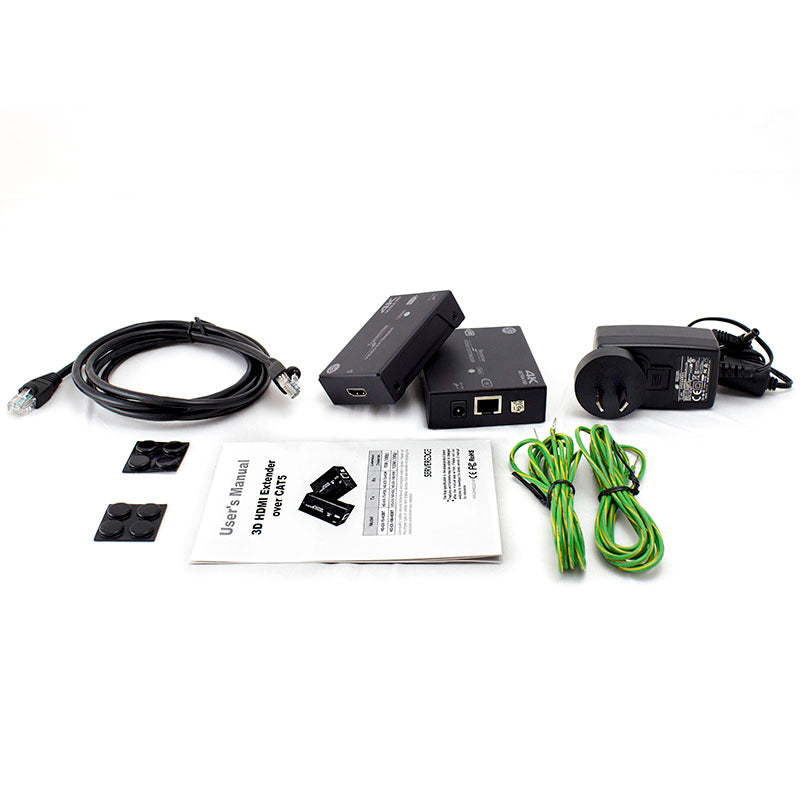

HDMI Extender Transmitter Unit 1
HDMI Extender Receiver Unit 1
Power Adapter Set (option: Power Adapter with necessary AC Cord/Plug-in Power Adapter) 1 Set/Pc
Grounding Wire 2
User's Manual 1
Foot Pad Set 2
