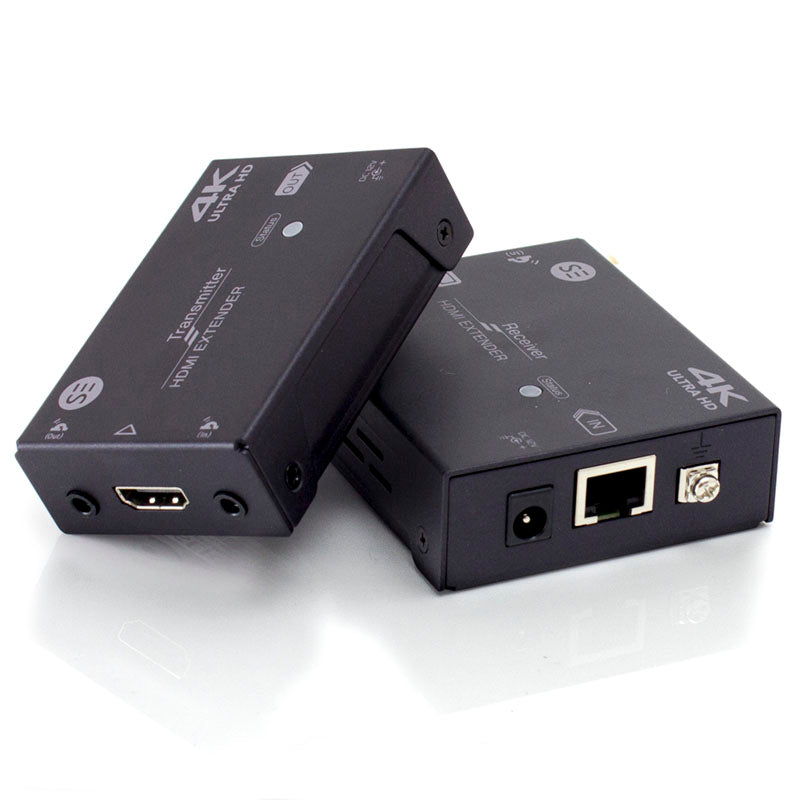

The Serveredge HD-EXR-70-HDBT is a 4K2K HDMI over HDBaseT extender kit (Tx/Rx) for HDMI transmission up to 70 meters (UHD resolution up to 35m) over a single CAT5e/CAT6/CAT6A cable with Bi-directional IR control capability. The kit is HDCP compliant and supports HDMI up to 10.2Gps, including support for 1080p 60, Deep Colour, HD-3D, 4Kx2K video, HD Audio Formats and Audio Return Channel. It only needs power supply at either Transmitter or Receiver end.
It's an advanced and inexpensive all-in-one connectivity solution to minimise-cost with use of only a single CAT cable between Transmitter and Receiver. its perfect for applications like hospitality (hotels, conference rooms), digital signage (airports, shopping malls), surveillance cameras, whole-home networking, and point-to-point consumer applications.
PRODUCT FEATURE
4K/UHD capability
Supports Ultra High Definition sources and displays. Future proofs AV systems in preparation for technology improvements, 4K/UHD streaming services and playback devices
HDCP Compliant
Adheres to latest specification for High-bandwidth Content Protection. Allows protected content stream to pass between devices
Only Single Power Supply Required
Only requires single power supply at either transmitter or receiver end. Saves time and integration costs
Extended distance HDMI extension
Transmits HDMI signals up to 70m @ 1080P over CAT5e/6/6A or 4K/UHD up to 35m. Uses easy-to-integrate category cable for low-cost, reliable system installation
Bi-directional IR
Delivers 4K/UHD video, audio and Bi-directional 1IR over a single cable. Eliminates multiple cable runs between source and display
Warranty : 2 Years
PRODUCT SPECIFICATION
Transmitter UnitHD-EXL-70-HDBT |
Receiver UnitHD-EXR-70-HDBT |
|
| Input → Output | HDMI x 1 → RJ-45 x 1 | RJ-45 x 1 → HDMI x 1 |
| LED (Link / Video status) | Dual Colour x 1 | Dual Colour x 1 |
| Video Resolution (max)* | UHD (3840 x 2160) | |
| Extension Distance* | Full HD 1920 x 1080 @ 70M UHD 3840 x 2160 @ 35M |
|
| Power Supply | DC 12V (Single power supply at either one end of two units (Tx & Rx)) | |
| Enclosure | Metal | |
| Weight | 170~180 | 250~265 |
| H x W x D (mm) | 20 x 80 x 50 | 23 x 80 x 67 |
*Above video resolution and extension distance are based on a single CATx 24AWG solid cable without cascade. STP cabling is recommended for environments with high EMI or RFI. For the best performance results, using stranded cabling or other thinner cables, and coiling of excess cable lengths should be avoided.

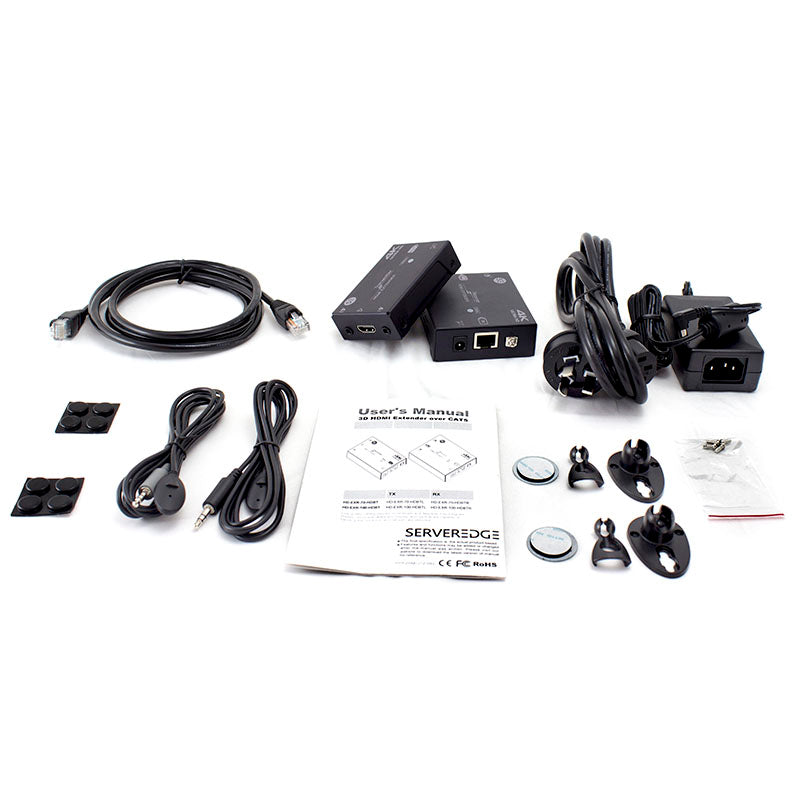

PACKAGING INCLUDES
| HDMI Extender Transmitter Unit | 1 |
| HDMI Extender Receiver Unit | 1 |
| Power Adapter Set (option: Power Adapter with necessary AC Cord/Plug-in Power Adapter) | 1 Set/Pc |
| IR Extension Kit | 1 |
| User's Manual | 1 |
| Foot Pad Set | 2 |
| CAT5 Cable | 1 |
