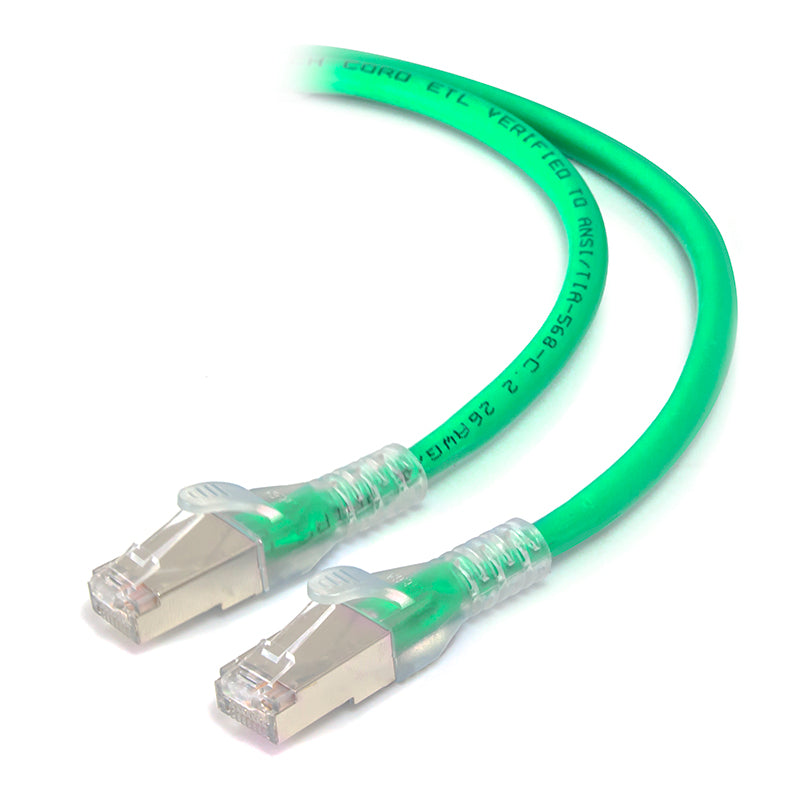

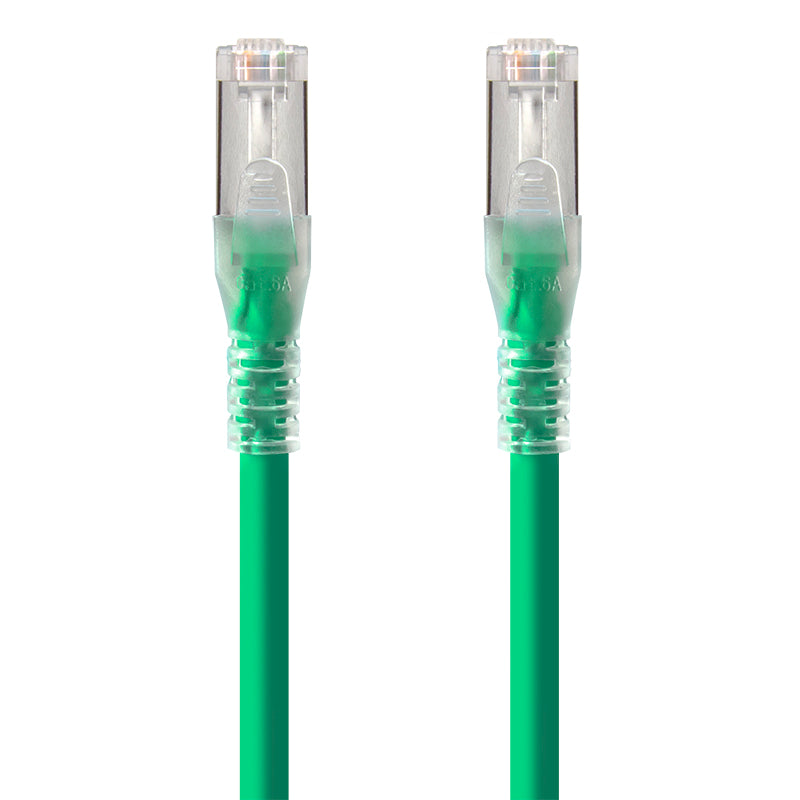

The Cat6A shielded cables are designed to meet and exceed the requirements for the next generation 10 GBASE-T applications. The cabling system provides an End to End solution that provides a guaranteed 75 Mhz of usable bandwidth. The solution consists of Pre-Terminated Cables, Patch Panels, Modular Jacks, Connectors and Bulk Installation Cables.
PRODUCT FEATURE
* Performance rated for 750 MHz bandwidth
* Suit for up to 10G LANS, include 10GBASE-T Ethernet, 1000BASE-TX Fast Ethernet and Lower
* Each twisted pair in the cable is individually wrapped in aluminium foil Mylar (100% Coverage)
* Overall Copper Braided Shielded
* Comes with LSZH (Low Smoke Zero Halogen) Jacket
* Category 6A SFTP cable wired straight through. 26 AWG, gold plated 8x8 (RJ45) plugs
* Snag-free strain relief molded boot provides secure and accurate connection
* Suppresses ANEXT (Alien Near End Cross Talk) and delivers superior 10GbE performance up to 100mt
* A-Tick Compliant as per ACMA requirement
* ETL verified to TIA/EIA-568C.2.1 Category 6a
* Compliant to IEC 802.3an standards & ISO/IEC 11801
* UL Approved
* Lifetime Warranty
PRODUCT SPECIFICATION
* Wiring Scheme: T568A
* Standard: Category 6a TIA/EIA-568C-2.1
* Connector: 50 micron gold-plated RJ45
* Temperature Rating: 75°C
* Voltage Rating: 30V
* Approvals: A-Tick, ETL, UL, IEEE, RoHS Compliant
* Package Type: Polybag
* Jacket: LSZH (Low Smoke Zero Halogen)
* Connector Type: 8P8C (RJ45)
* Conductor Type: 26AWG (7/0.16) Stranded Bare Copper
AVAILABLE LENGTHS
Part No. |
Length |
C6A-0.3-GREEN-SH | 0.3m |
C6A-0.5-GREEN-SH | 0.5m |
C6A-01-GREEN-SH | 1m |
C6A-1.5-GREEN-SH | 1.5m |
C6A-02-GREEN-SH | 2m |
C6A-03-GREEN-SH | 3m |
C6A-05-GREEN-SH | 5m |
C6A-10-GREEN-SH | 10m |
