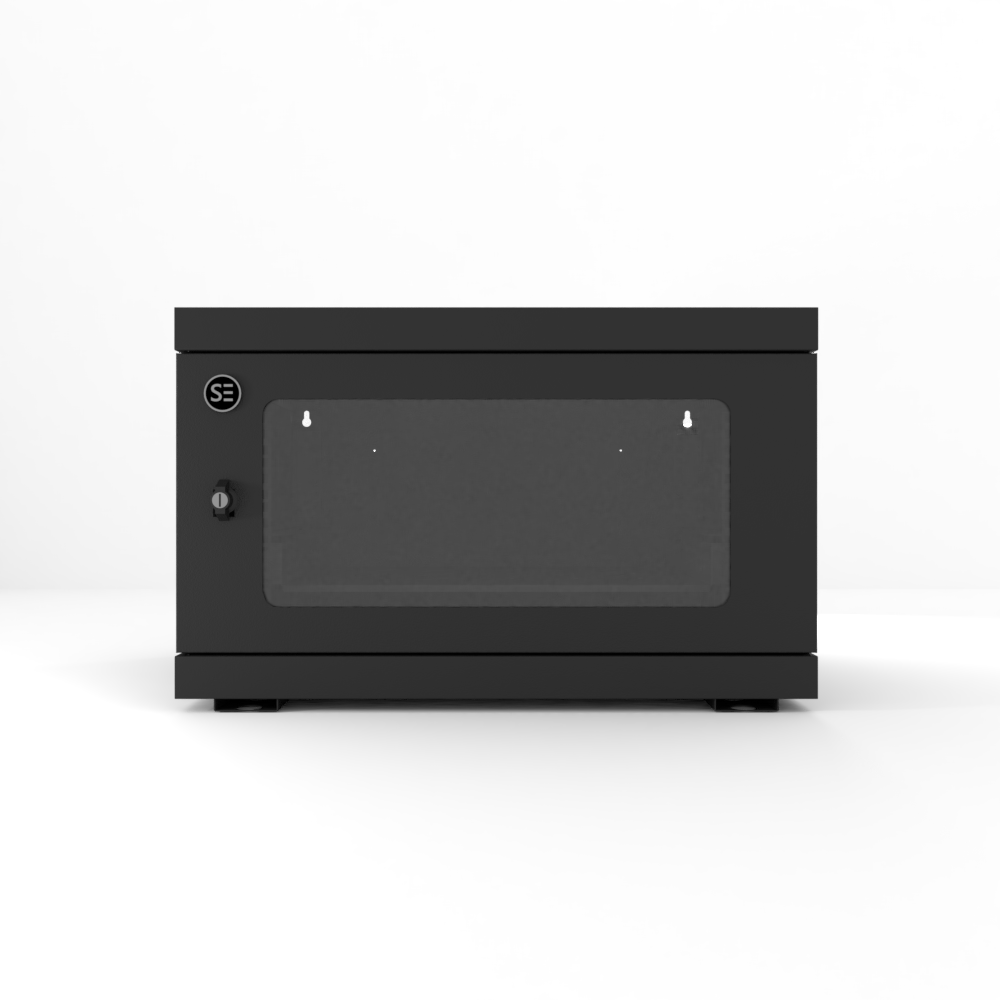

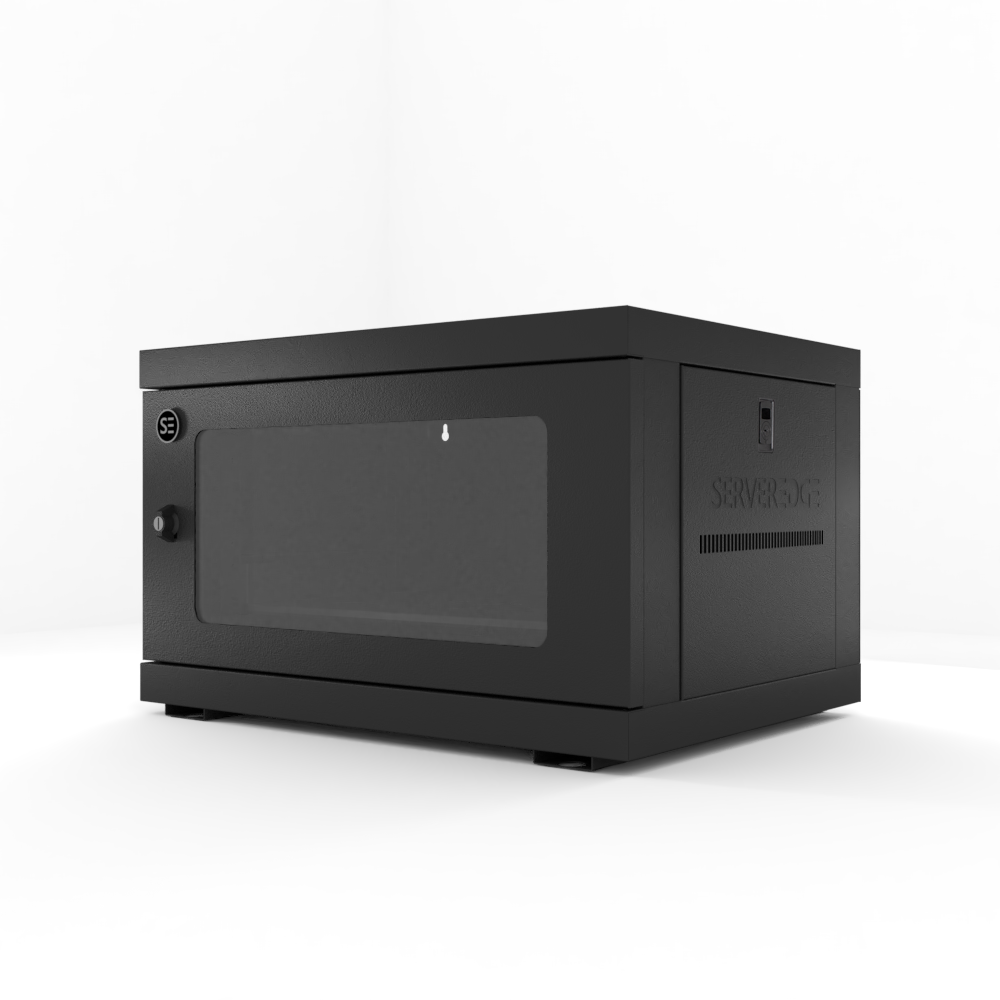

6RU 600mm Wide & 450mm Deep Fully Assembled Wall Mount Server Cabinet


6RU Fully Assembled Wall Mounted Cabinet
25 Years
Manufacturer's Warranty

Serveredge Wall Mount cabinets and rack enclosures are perfect for storing your standard rack mount equipments on wall in various locations such as wiring receptacles, POS stations and offices were you have access to very limited floor space. This Serveredge rack is made up of sturdy wall mounting bracket and steel frame & it can mount up to 8 Kg of rack mount hardware in 6RU of rack space. Vertical Mounting Rails in the rack are adjustable and can accommodate all standard 19 inch rack equipment. These Serveredge wall mount racks feature a toughened & tempered lockable glass door with perforated side panels to assure a generous airflow to keep your equipment operating safely. Side Panels of this rack are lockable & removable to ensure easy access to the mounted devices. The top and bottom panels of this rack include convenient cable routing ports. The rack ships fully assembled and comes with a 25 Year manufacturer™s product warranty.




* Designed for limited space environments where equipment needs to be secure and out of the way

* Adjustable front vertical rack mount rails

* Locking, reversible front door and locking, removable side panels

* Fully assembled for quick installation

* Confirm to Standard ANSI/EIA RS-31 -D, IEC297-2, DIN4191; PART1, DIN4194; PAT7, GB/T3 47M 2-92




* Rack Height : 6RU

* Unit Dimensions: 600mm (W) x 450mm (D) x 380mm (H)

* Unit Weight: 18kg

* Shipping Dimensions: 660mm (W) x 510mm (D) x 440mm (H)

* Shipping Weight: 19kg

* Cantilever Shelf Depth : 300mm

* Colour : Black

* Weight Capacity - Stationary (kg) : 80

* Grounding lug : Front and Back Door Frames



(1) Wall Mount Rack

(1) Cantilever Shelf

(20) M6 screws

(20) M6 cage nuts

(20) M6 washers

(2) Keys
