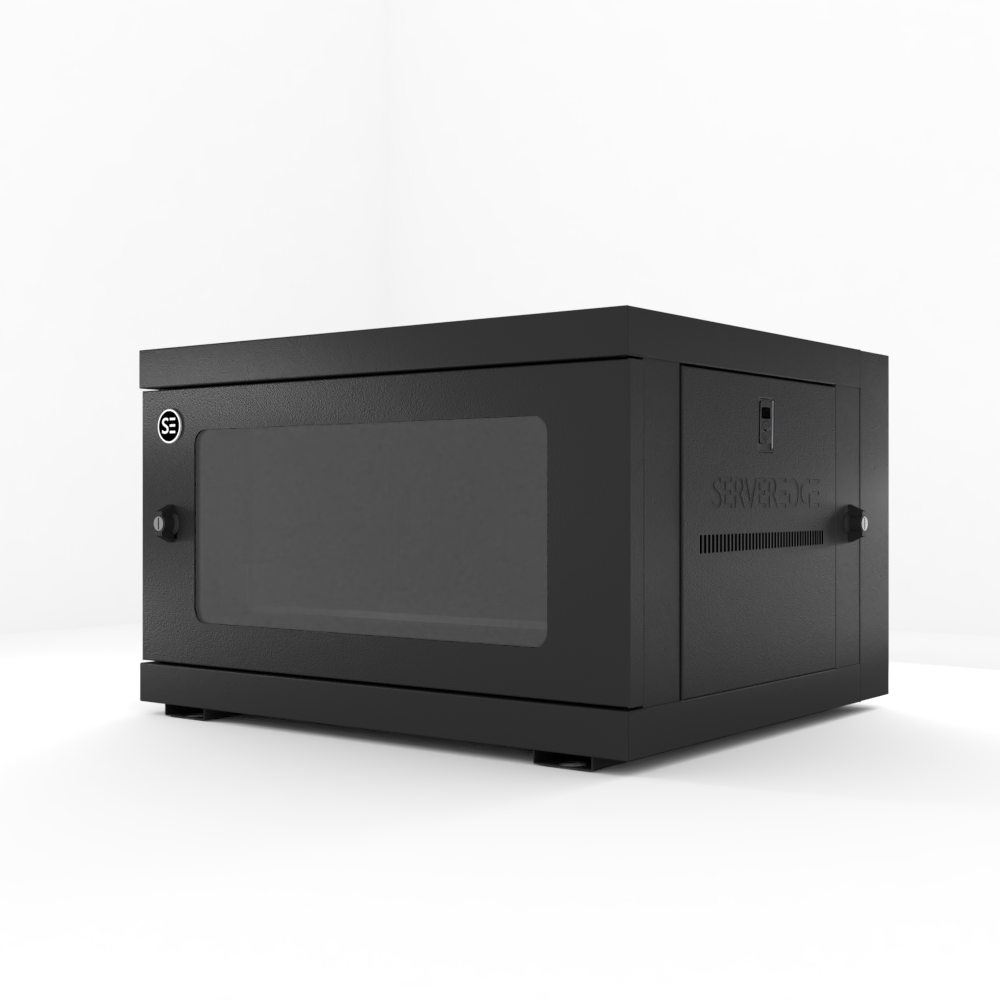

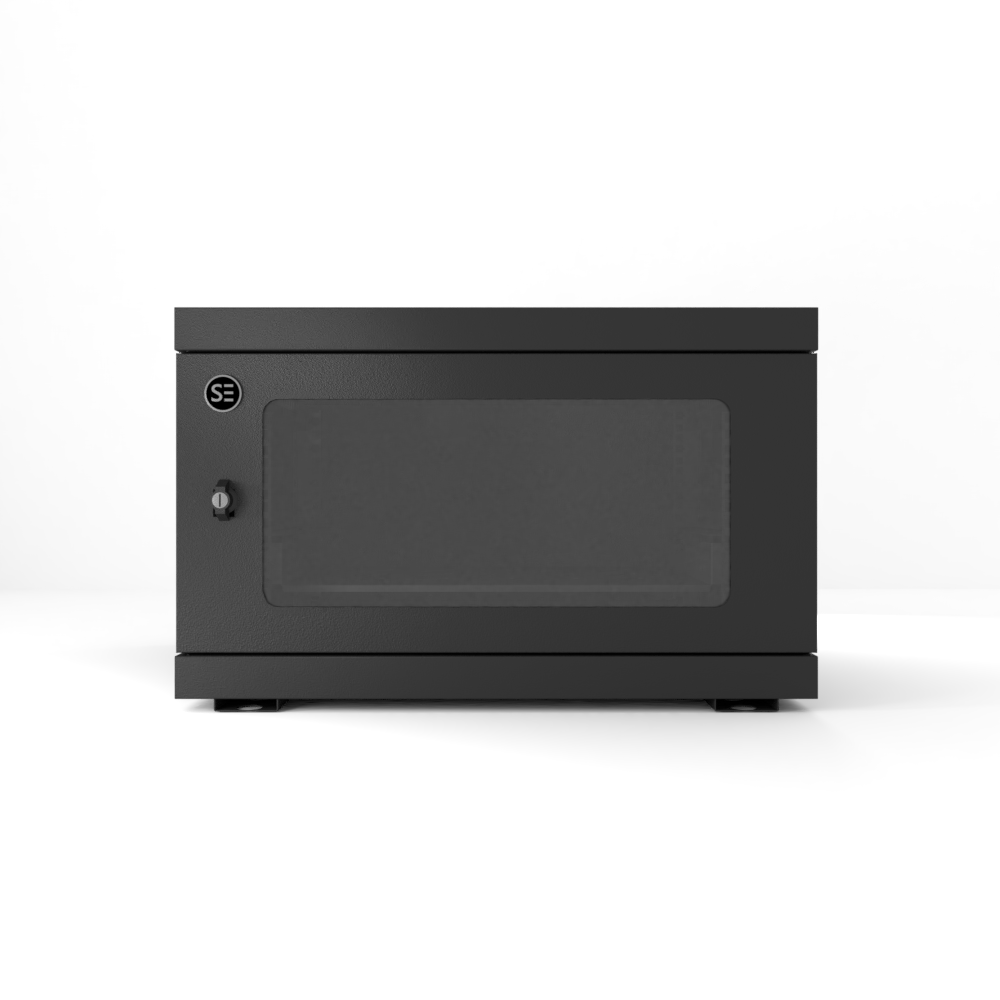

6RU 600mm Wide & 550mm Deep Fully Assembled Swing Frame Hinged Wall Mount Cabinet


6RU Fully Assembled Hinged Wall Mounted Cabinet - 600W x 550D x 370H Toughened Glass Door, Quick Release Lockable Side Panel, L-Shaped Rails, Cut Out Slots for Fans, 20 X Cage Nuts
25 Years
Manufacturer's Warranty


Serveredge Wall mount Swing Frame Cabinets and Enclosures are the ideal storage solution for the standard rack mount equipments in applications with limited floor space. Constructed with a hinged wall mounting bracket & a sturdy welded frame these racks can accommodate equipments up to 80 Kgs. The vertical mounting rails are adjustable and can accommodate any standard rack mount equipment. Swing Frame feature of this rack allows easy access to the rack mounted equipments through its easy removable enclosure that is hinged to swing frame from the wall mounting brackets. Serveredge wall mount swing frame enclosures also features perforated lockable removable side panel assuring generous airflow to keep equipment operating safely. The top and bottom panels of the enclosure include convenient cable routing ports. These wall mount swing cabinets ships fully assembled and comes with a 25-year manufacturer’s product warranty.



* Designed for limited space environments where equipment needs to be secure and out of the way
* Adjustable front vertical rack mount rails
* Locking, reversible front door and locking, removable side panels
* Hinged cabinet swings away from wall bracket for easy equipment
* Fully assembled for quick installation
* Confirm to Standard ANSI/EIA RS-310-D, IEC297-2, DIN4191; PART1, DIN4194; PAT7, GB/T3047M 2-92
* Warranty : 25-year




Installed whole system maximum rack depth (mm) 450
Rack Height 6RU
Shipping Dimensions (WDH/mm)  650 X 600 X 420
Shipping weight (kg) 22
Unit Dimensions (WDH/mm)  600 X 550 X 370
Unit weight (kg) 19.5
Colour  Black
Weight Capacity - Stationary (kg)   80
Grounding lug  Front and Back Door Frames


Free Standing Rack 1
M6 screws 20
M6 cage nuts 20
M6 washers 20
Keys  2
