8 Port Switched Elite Series PDU (8) IEC C13 Output & (1) IEC C20 Input, 10A, 240V

SKU: SEDG-ELT-8PSW-PP-C13

2 Years
Manufacturer's Warranty

The Serveredge Elite Series PDU’s offers convenient remote control of critical devices with just a few clicks on a smart phone or computer webpage. By cutting off power to specific outlets and restarting devices remotely, it saves time and money by eliminating the need for on-site technicians to address issues.

Managers can easily monitor power usage information for each output port from anywhere via the Internet, gaining valuable insights into device power consumption. Overload event alerts can be set up, notifying managers via Email and TRAP, allowing them to respond quickly to crises and minimize potential disasters.

The Elite Series PDU’s features two environmental sensor ports for tracking temperature and humidity variables, providing crucial climate information accessible from any web browser. With SNMP compliance, critical data can be easily tracked without external software. The included central management software efficiently handles a large number of PDUs, managing power, temperature, and humidity information, while the database stores power consumption data and offers history curve charts for reference. Stay in control and optimize your infrastructure with the Elite POM PDU's intelligent power management and monitoring capabilities.



System Function

  • Built-in embedded system:

Support 10/100M Ethernet interface, provides webpage and SNMP remote management.

  • Local display information:

Seven-segments can display current, IP address and temperature and humidity values.

  • Multiple protocols:

Support ICMP, ARP, IP, TCP, UDP, DHCP, HTTP, HTTPS, FTP, NTP, SNMP v1/2/3, TLS1.2, IPv4 and IPv6, Telnet, SSHv2

  • Management Account Certification:

Radius certification support.

  • Multi-account management:

Multi-group account management system. And provide three-tier permission management.

  • IP filtering:

Support IP filtering, improve network security mechanisms.

  • Power record:

Store up to 100000 power and event data.

  • Remote firmware upgrade:

Provides remote firmware upgrade mechanism.

  • System operation message:

Send the normal operation of the message automatically by trap.

  • Hardware key definition:

User-definable button function.

  • Temperature unit conversion:

Temperature units can choose Celsius or Fahrenheit

  • System configuration restore:

Support the output of the system settings, to easily deploy a large amount of the same model of PDU.

  • Multilingual Support:

Support Chinese, English, French, German, Spanish, Russian, Czech, Arabian, Persian.



Power Management

Remote Monitor

Remote monitoring PDU status by web and SNMP



Remote Control

Remote per outlet on/off by web and SNMP.



Current Measurement

Measure PDU total current consumption.



Mail Notification

Notify specified user by mail and SNMP when outlet action or current over threshold.



Threshold Sensing

User-definable warning and overload threshold value as the basis for alarm.



Event Alert

When current exceeds the preset threshold, PDU will beep and LED will flash.



Power Sequence

User-definable power on/off sequence time.



Schedule Control

Timed & scheduled on/off/reboot control.



Ping Event Control

When the specified IT device does not respond to PING, the output will perform a preset power action.



Overload Protection

When overload, circuit breaker will automatically trip to protect the safety of electricity.



Group Control

Set multiple outlets as a single group while controlling the power output.



Outlet-Level Monitor

Remote per outlet current monitoring.



Event Reaction

Outlet action via pre-set event, including power, environment event and receiving trap from other device.



Central Management

Free centralized monitoring software, real-time monitoring of a large number of PDU, provide data records and history chart.



Environment Detection

Optional accessory probe to detect temperature and humidity.





Specification

Output

Input

Voltage

200-240 VAC

Voltage

200-240 VAC

Max. Current

10 A

Frequency

50/60Hz, full range

Outlet

(8) C13

Max. Capacity

2400 VA

ON/OFF Ind.

(8) Green LED

Connection

C20, Inlet

Outlet Status Ind.

(8) Red LED

Circuit Status Ind.

(1) Red LED

Overload Protection

(1) 10A UL1077 breaker

Measurement

Other

Current

+/- 2%+/-0.1A @0.2A ~ 32 A

ENET Connection

(1) RJ45

ENV Connection

(2) RJ11

Function Selection

(1) Button

DHCP Ind.

(1) Green LED

SSL Ind.

(1) Blue LED

Info. Display

4 digits of 7 Segments

Dimension/Weight

Operation

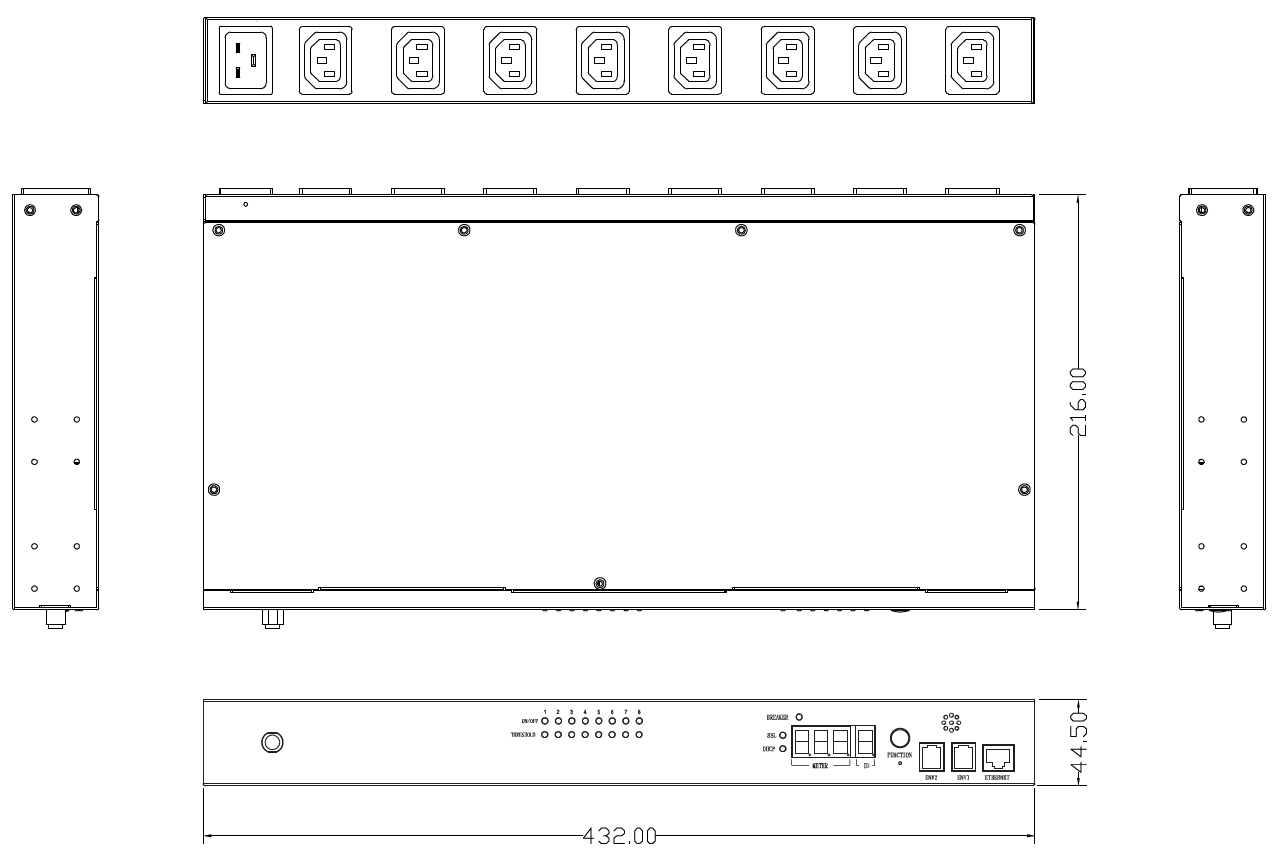

Net Size

432 x 216 x 44.5 mm

Operation Temp.

0 ~ 50℃

Net Weight

3.3 kg

Operation Humid.

0% ~ 90% RH

Package Size

490 x 330 x 155 mm

Storage Temp.

-20℃ ~ 65℃

Package Weight

3.9 kg

Storage Humid.

0% ~ 90% RH

Approval

Certification

CE

Warranty

2 years
