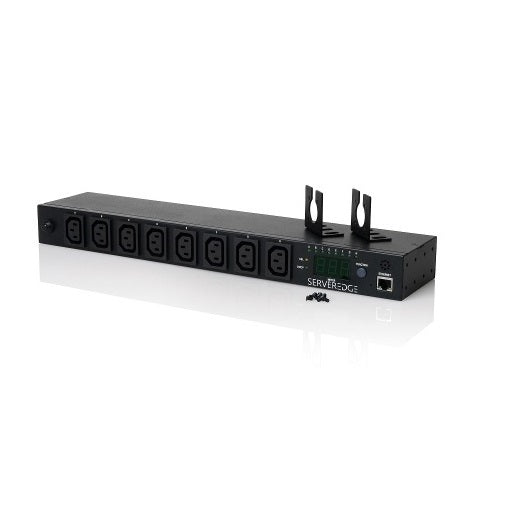

The Serveredge switched PDU enables the user to control and monitor the power remotely. The web based interface allows the user switch on/off functionality for power cycling a connected equipment remotely on each individual C13 Output Port. A true digital RMS meter allows real time current monitoring of the connected equipment with data logging and reporting. It allows for a user defined alarm threshold for overloads and warnings.
PRODUCT FEATURE
* Remote power management (Power cycling/ Monitoring) of connected equipment
* Full-featured network management interface via Http, Https, SNMP, DHCP, UDP protocols
* Allows user with Individual outlet control for remote switch on/off (power cycling)
* Capable of Total Remote Power Monitoring by Meter, Web, SNMP, Free Bundle Software via the * True RMS current meter
* Supports user defined alarm threshold for overloads and warnings raised by sending emails, and traps information in case of a threshold breach.
* Email, Trap, Audible Alarm can be set up by user as alarms
* Warranty: 2 Years
WARNING: It is recommended that no more than one device be power on each output port, not complying with this recommendation may result in a void of warranty.
PRODUCT SPECIFICATION
General |
|
| Output |
IEC C13 x 8 |
| Input |
IEC C20 with a 3m power cord x 1 |
| Network |
RJ45 |
| Current Meter | 3 Digits Seven Segments for True RMS Meter, Range: 0A ~ 20 A, Resolution-0.1A, Precision: +/-2%+/-0.1AMP |
Connectivity Status |
|
| DHCP Indication | Green LED Light |
| SSL Indication | Yellow LED Light |
| Output Status | Green LED Light/port |
Power Ratings |
|
| Voltage | 200~240 V |
| Frequency | 50-60 Hz |
| Current | 16A Maximum |
Environmental |
|
| Temperature | 0 ~ 40 Degree Celsius |
| Humidity | 0% ~ 90% |
PACKAGING INCLUDES
| SEDG-8PSW-C13-16A | 1 |
| Rack Mount Kit | 1 |
| User Manual | 1 |
| Free Bundled Software | 1 |
