*EOL* 8 Port Switched Per Port Monitoring PDU (8) IEC C13 Output & (1) IEC C14 Input, 10A,240V

SKU: SEDG-8PSW-PP-C13

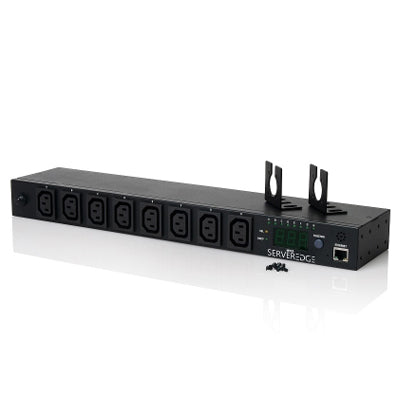

The Serveredge SEDG-8PSW-PP-C13 is an 8 port Switched Power Distribution Unit (PDU) that powers and protects your equipment in your rack cabinets. It is equipped with an Intelligent True RMS current meter with Per Port Monitoring to indicate each outlet's individual power consumption.
2 Years
Manufacturer's Warranty



Serveredge SEDG-8PSW-PP-C13 is an 8 port Switched Power Distribution Unit (PDU) that powers and protects your equipment in your rack cabinets. It is equipped with an Intelligent True RMS current meter with Per Port Monitoring to indicate each outlet's individual power consumption. Optional SEDG-ENHD probe is available to support temperature and humidity monitoring

The integrated Web Server allows real time monitoring of each oulet's individual current consumption and real time remote on/off or reboot power switching control of each individual outlet using a standard web browser. It also offers an easy to setup and user-friendly software interface to remotely monitor power consumption of each outlet, each PDU or mulitple PDUs.



PRODUCT FEATURE




* Can be mounted horizontally (1U) or vertically (0U)
* True RMS current meter indicates each outlet's individual power consumption
* Protocols supported: Http, Https, SNMP, DHCP & UDP
* Integrated web server manages real time current consumption of each individual outlet or total PDU
* Web interface allows real time remote on/off or reboot power switching control of each individual outlet
* User-defined delayed time for power on, power off or reboot
* User-defined group outlet control for scheduled control of grouped outlets
* PING Control: Auto reboots locked devices by pinging their IP address
* Audible & visual alarms - User definable threshold settings for warning and overload notifications
* Sends Email and Trap information when power consumption exceeds warning or overload thresholds
* Supports SNMP and provides MIB (Management Information Base) for the PDU to be monitored by NMS (Network Management Systems)
* Optional probes to support temperature and humidity monitoring [SEDG-ENHD]
* 1 x IEC-C20 input
* 1 x Supplied 3 metre input cable with IEC-C19 to C14
* 8 x IEC-C13 outputs
* Rated at 10A at 240V AC




 WARNING: It is recommended that no more than one device be power on each output port, not complying with this recommendation may result in a void of warranty.




PRODUCT SPECIFICATION




General

Output

IEC 320 C13 x 8

Input

IEC 320 C14 with a 3m power cord x 1

Network

RJ45

Current Meter  3 Digits Seven Segments for True RMS Meter,
Range: 0A ~ 20 A, Resolution-0.1A,
Precision: +/-2%+/-0.1AMP



Connectivity Status

DHCP Indication Green LED Light
SSL Indication Yellow LED Light
Output Status Green LED Light/port



Power Ratings

Voltage 200~240 V
Frequency 50-60 Hz
Current 10A Maximum



Environmental

Temperature 0 ~ 40 Degree Celsius
Humidity 0% ~ 90%





PACKAGING INCLUDES



SEDG-8PSW-PP-C13 1
Rack Mount Kit 1
User Manual 1
Free Bundled Software 1
