The Serveredge basic PDUs are the most efficient way to power protect your rack mount equipments. Serveredge PDUs are built to both Australian & International standards and requirements, so that your equipment can deliver the most optimum performance while using minimum of your valuable rack space. The PDUs have a Metal Alloy casing which makes them durable for rack mount use and also allows both vertical and horizontal applications.
PRODUCT FEATURES
• Output Ports: (8) 3 Pin AUS GPO [Individually Switched]
• Overload Protection
• Vertical Mounting capabilities saves valuable rack space.
• Input Power Source: 3 Pin AUS Plug, 10A
• Power Indicator Light.
• Warranty: 2 Years Manufacturers Warranty
PRODUCT SPECIFICATIONS
| Configuration | 1RU, Horizontal |
| Colour | Black |
| Maximum Depth | 45mm |
| Maximum Height | 819.5mm |
| Maximum Width | 45mm |
Output |
|
| Output | 8 x 3 Pin AUS GPO [Individually Switched] |
Input |
|
| Input | 1 x 3 Pin Aus Plug |
| Cable-length | 2m |
| Maximum input current | 10A |
| Voltage | 240V |
Conformance and Compliance |
|
| EESS Conformity |
PACKAGING INCLUDES
| SEDG-8PV-GPO-SW | 1 |
| Regular removable bracket | 1 |

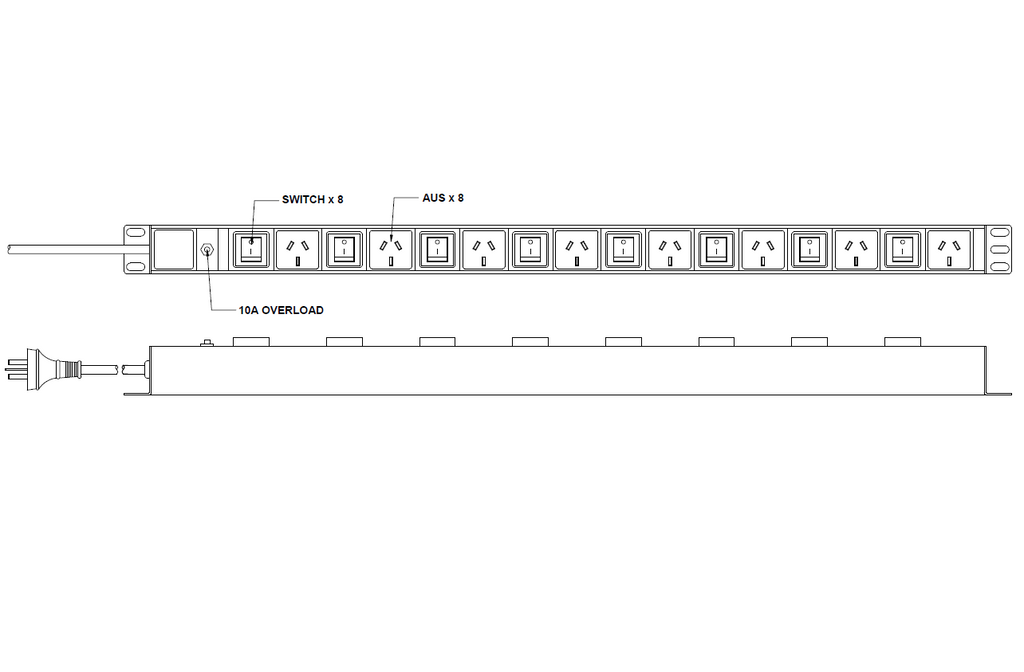

![8 Port Vertical Basic PDU, (8) 3 Pin AUS GPO [INDIVIDUALLY SWITCHED] Outputs (1) 3 Pin Aus Plug Input, 10A, 240V](http://www.serveredge.com/cdn/shop/files/Screenshot2023-11-29115243.png?v=1701219213&width=1284)
