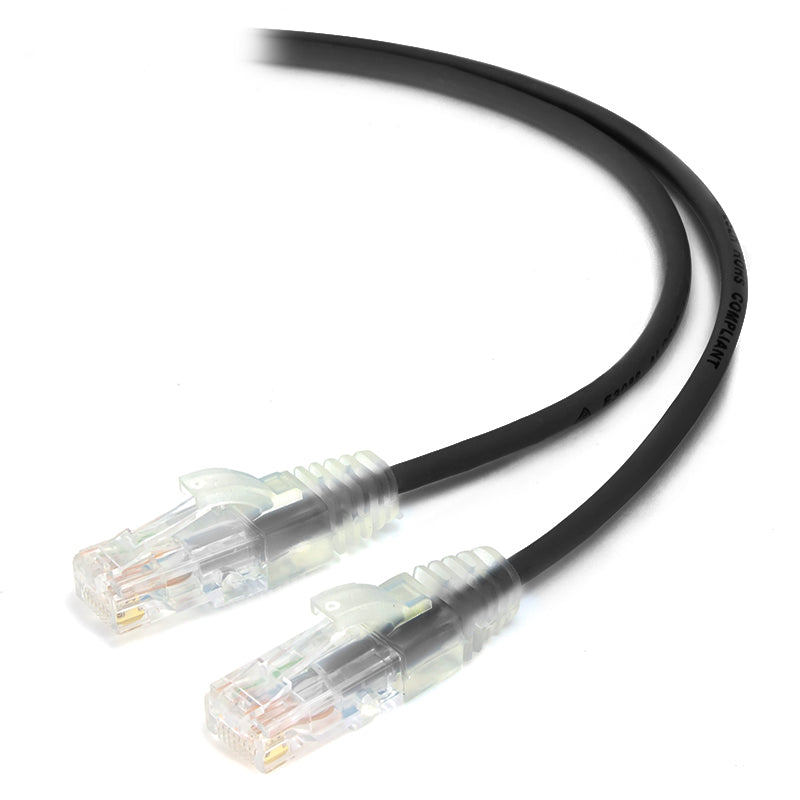

The Ultra Slim Cat6 UTP, 28AWG, Network Cable joins the Series Alpha Structured Cabling Solution. The Ultra Slim Cat6 Cable are constructed of 28 AWG, unshielded, twisted pair, stranded copper with LSZH jacket and high performance RJ45 modular plugs.
PRODUCT FEATURE
* Exceeds all ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E Edition 2.1 electrical performance requirements.
* Ultra Slim design saves valuable space.
* Suitable for high density environment.
* Flexible cable allows for high bend radius.
* 50u gold plated connected connectors and 100% copper construction.
* Fully Moulded tangle Free Snag-less boot allow for a clean and time saving install and move.
* Available in ten colours for colour coding your installation.
* Warranty: Lifetime
PRODUCT SPECIFICATION
| Input: | 8P8C (RJ45) |
| Connector: | 50u Gold Plated | Fully Moulded Snag-less Boot |
| Conductor Type: | 28AWG (100% Copper) |
| Wiring Scheme: | T568A |
| Compliance: | ANSI/TIA-568-C.2 Category 6, ISO 11801 Class E Edition 2.1, IEC 60603-7, IEEE 802.3af/802.3at, RoHS |
| Jacket: | Outer Dia.: 3.8 +/- 0.15 mm | Insulation: LSZH |
| Colour: | Black |
Ordering Information
| Part No. | Length |
| C6S-0.30BLK | 0.3m |
| C6S-0.50BLK | 0.5m |
| C6S-01BLK | 1m |
| C6S-1.5BLK | 1.5m |
| C6S-02BLK | 2m |
| C6S-03BLK | 3m |
| C6S-05BLK | 5m |
