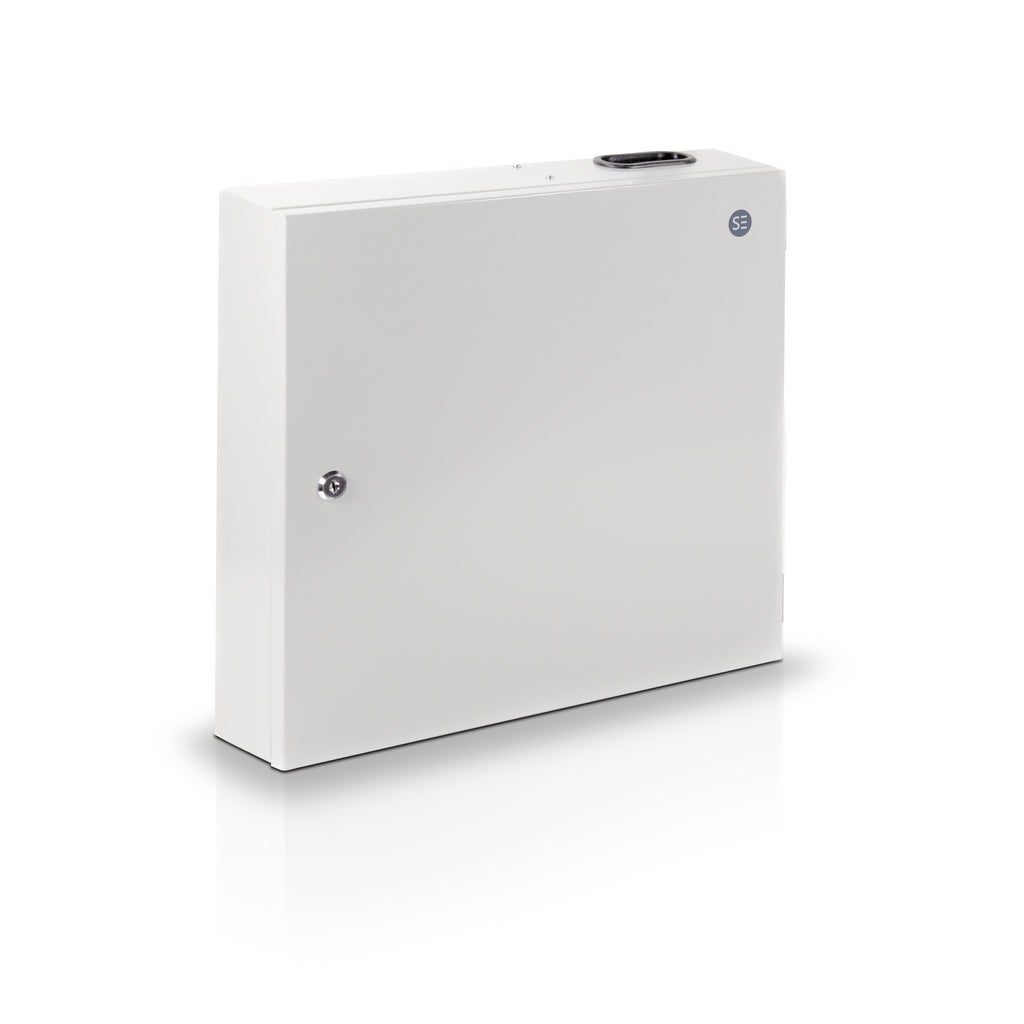

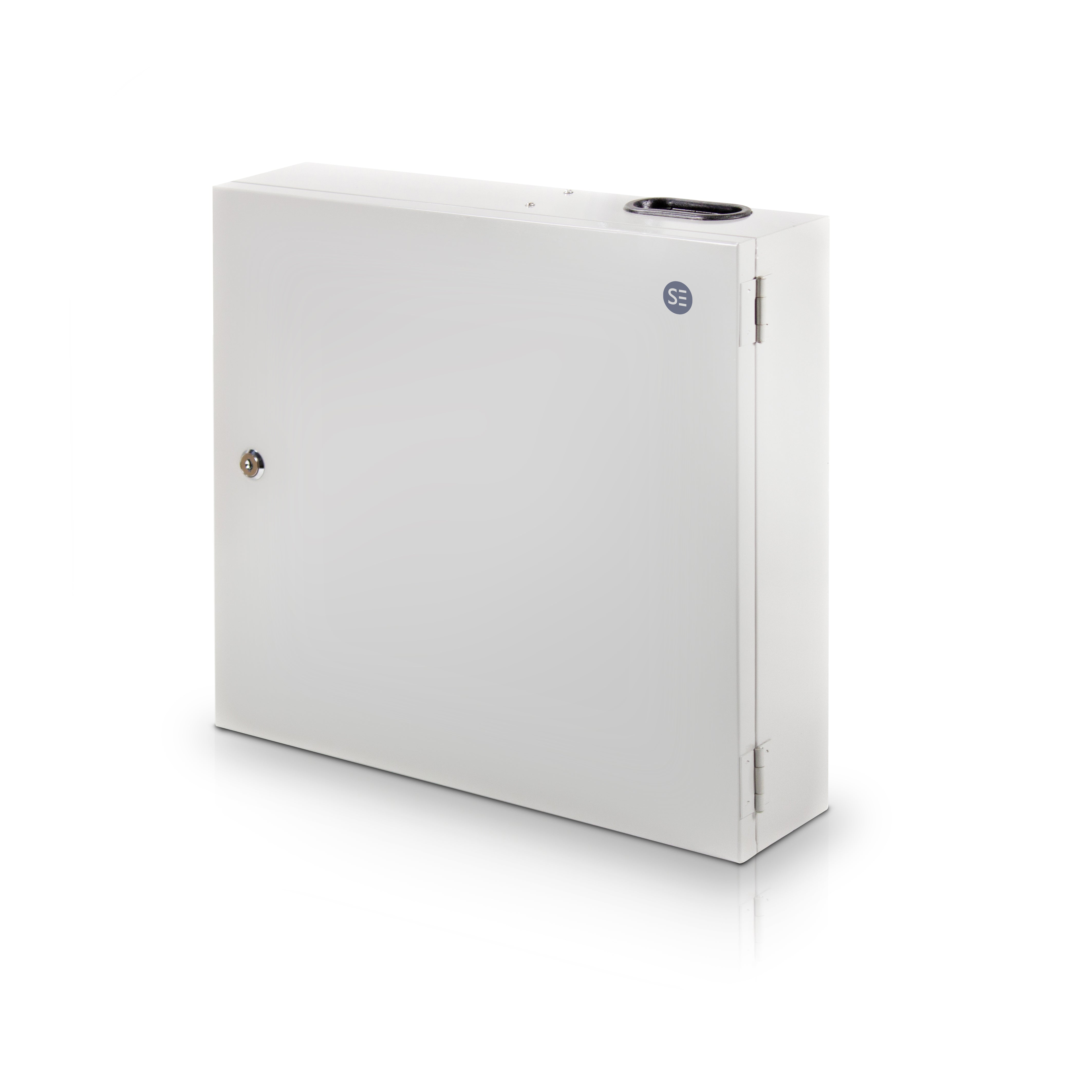

Fibre Wall Mount Enclosure Dual Face Plate with Splice Cassette & Splice Protector

SKU: SAFPWM-2P

Fibre Wall Mount Enclosure Dual Face Plate with Splice Cassette & Splice Protector


Serveredge Fibre Wall Mount Enclosure provides an efficient way to establish connections between external cables and the equipment inside the building and communication facilities.
The Fibre Wall Mount Enclosure integrates fibre splicing, storage and cable connection together in a single unit. It has a large working space to integrate the pigtail, cables and adapters for fibre management.



PRODUCT FEATURE


• Fully assembled

• Cold-rolled steel enclosure chassis for strength

• Adapter plate available: LC, SC, ST

• Cable entry ports suitable for single fibre, bundle & ribbon fibre cables

• Lockable Front Door

• Dual Face Plate

• Includes 12 Core Splice Cassette

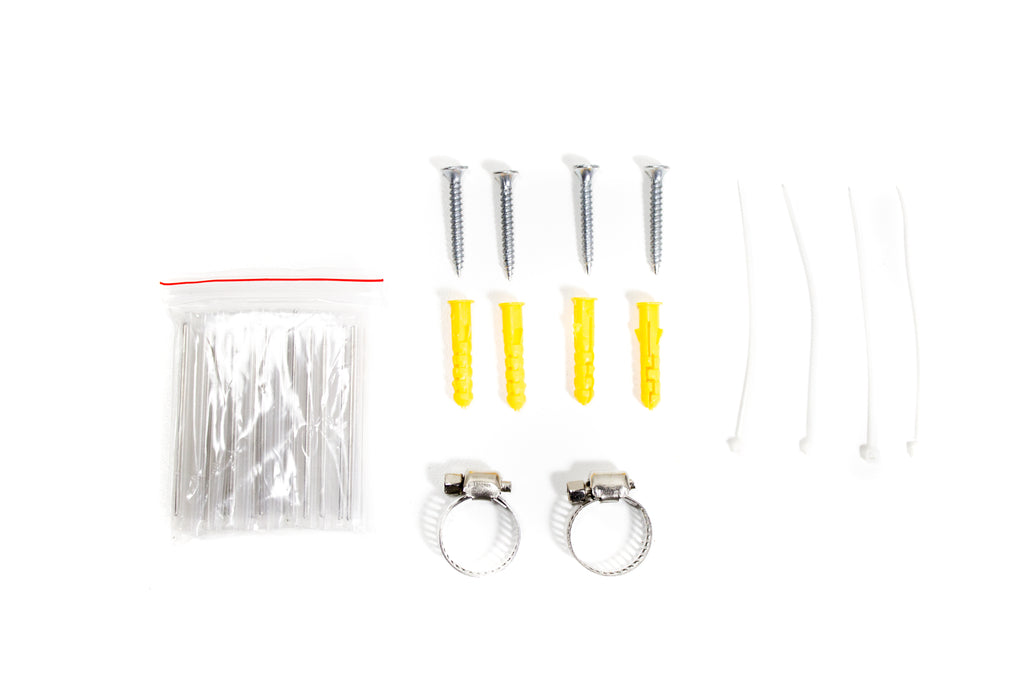

• Includes 60mm Fibre Heat Fusion Splice Protectors – 24 Pack

• Cable Strain Relievers

• 3 Nylon cable ties

• 2 Steel clamps

• Fixing screws



PRODUCT SPECIFICATION


Loading Capacity: Customisable 12 Splice Cassette

Surface Finish: Electrostatic Painting

Color: Grey

Dimensions: 378mm (H) x 398mm (W) x 96mm (D)

Net weight: 3kg

Shipping weight: 3.25kg


ITEM PARAMETER

Standard working wavelength: 850nm, 1310nm, 1550nm

Operation temperature: -30 ~ + 60°C

Storage temperature: -30 ~ + 60°C

Relative humidity: ≤85%(+30°C)

Atmospheric pressure: 70 ~ 106Kpa

Durability: >1000 times




ACCESSORIES


Fibre Adapters
LC-ADP-OM1 - LC/F to LC/F Multi Mode Duplex OM1 Fibre Adapter - BEIGE
LC-ADP-OM3 - LC/F LC/F Multi mode Duplex OM3 Fibre Adapter - AQUA
LC-ADP-OM4 - LC/F to LC/F Multi mode Duplex OM4 Fibre Adapter - AQUA
LC-ADP-OS2 - LC/F to LC/F Single Mode Duplex OS2 Fibre Adapter-BLUE COLOR
SC-ADP-OM1 - SC/F to SC/F Multi Mode Duplex OM1 Fibre Adapter-BEIGE
SC-ADP-OM3 - SC/F to SC/F Multi Mode Duplex OM3 Fibre Adapter-AQUA
SC-ADP-OM4 - SC/F to SC/F Multi Mode Duplex OM4 Fibre Adapter-AQUA
SC-ADP-OS2 - SC/F to SC/F Single Mode Duplex OS2 Fibre Adapter -BLUE
ST-ADP-OM - ST Female to ST Female Multi mode Simplex Fibre Adapter
ST-ADP-OM1 - ST Female to ST Female Multi mode OM1 Simplex Fibre Adapter
ST-ADP-OS1 - ST Female to ST Female Single mode Simplex Fibre Adapter

Face Plates
SAFP-BP - Solid Metal Blank Face Plate
SAFP-LC12 - 12 Port LC Duplex Face Plate
SAFP-LC6 - 6 Port LC Duplex Face Plate
SAFP-SC6 - 6 Port SC Duplex Face Plate
SAFP-ST12 - 12 Port ST Face Plate
SAFP-ST6 - 6 Port ST Face Plate
