HDMI 19" LCD KVM Console Rack Drawer - 8 Port HDMI/USB With Optional IP Access

SKU: SED-KLHDMI-0819

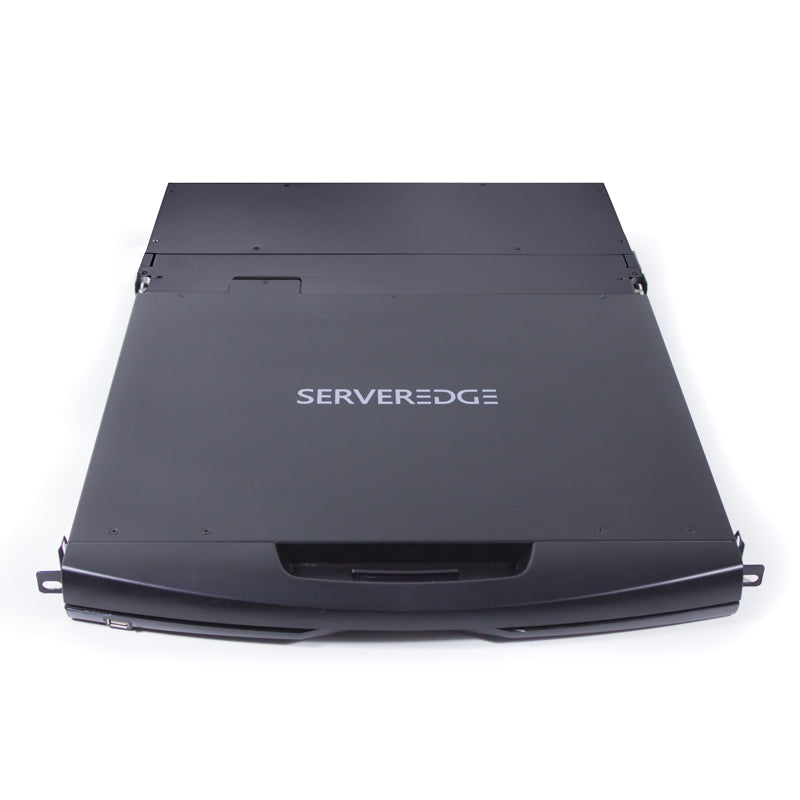

The Serveredge KVM console integrates a 19” Wide Screen LCD display, slim keyboard and a mouse touchpad to manage single or multiple computers across a network. The KVM uses only 1RU of rack space, delivering a space friendly solution for complete management.

Space Friendly & Less Clutter

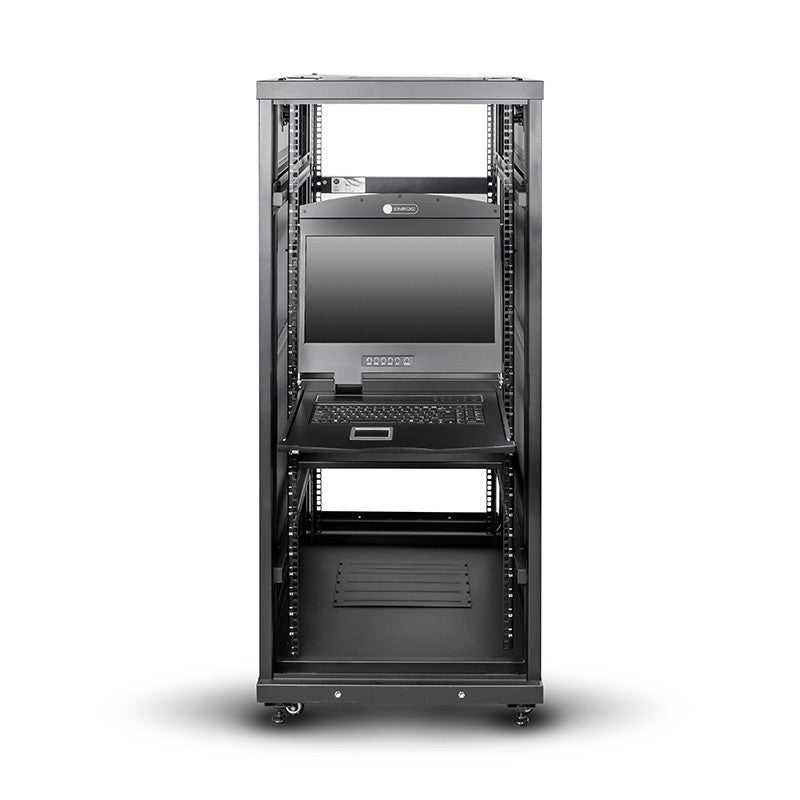

1RU of rack space is all it requires, allowing extra storage area so your cabinet rack will be much more organised. Just slide open the 19” console display when it is required and close after use and slide back into place.

Reduce IT cost & maximise budget
Serveredge LCD KVM console provides all the essential equipment to allow you to manage multiple computer(s) at an affordable cost. There’s no need to spend on multiple displays and keyboards as you will only require the one console to manage and control productivity.

Quick Assembly and Warranty
The LCD KVM’s comes with a user friendly quick installation manual and 1 year warranty for the extra piece of security.






PRODUCT FEATURE


* 8 USB, 8 HDMI computer interface

* Supports USB TYPE A interface for keyboard and mouse devices

* LCD KVM maximum resolution is 1920×1080@60HZ   4K X 2K @60HZ

* Control function through the front panel buttons and/or keyboard hotkeys and screen menu (OSD)

* Control station device connected BIOS-level access,without fear of invasion risk of viruses and Trojans

* Control station computer does not need to install any software and drivers, and the control station computer directly recognizes the KVM.

*
Scalable remote network control mode IP extension board

* Supports OSD to set user login and increase KVM login security requirements

* Both local and remote IP modes support high video resolution, 480i, 480p, 720p, 1080i and 1080p(1920×1200), 4K X 2K Ultra HD resolution

* Supports widescreen resolution

* Supports DDC communication to adapt to different graphics devices

* Auto scan function monitors all computer operations

* Support for cross-platform operations- Windows, Linux, Mac*, and Sun*






PRODUCT SPECIFICATION


Computer connections: 8

Port selection: OSD menu, panel buttons, hotkeys

Connector:
                    Control port:
                                          monitor:    1 x HDMI female
                                          keyboard:    1 x USB Type A female
                                          mouse:    1 x USB Type A female
                    Computer port:

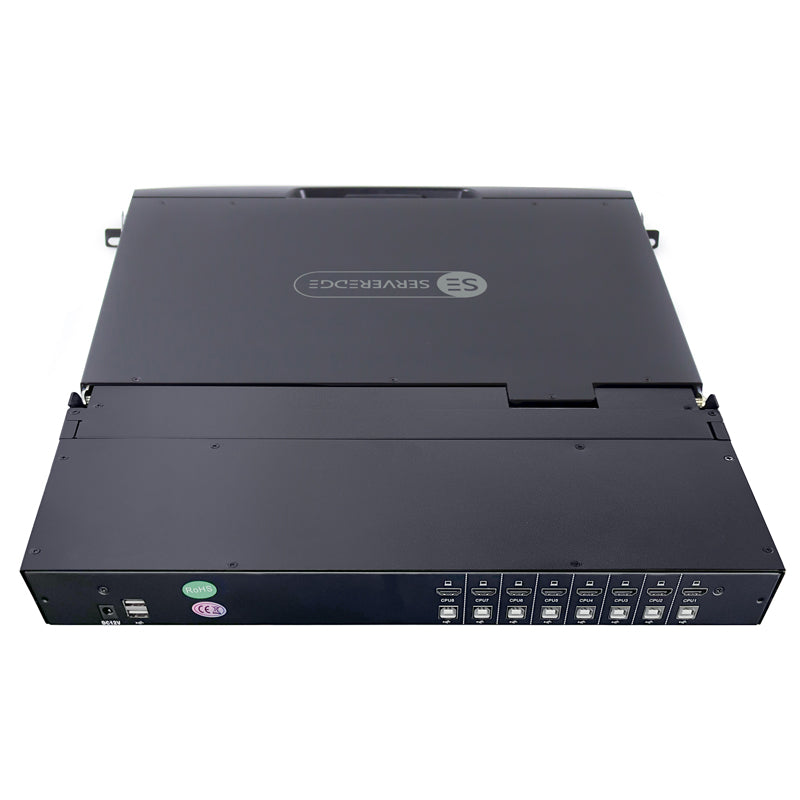

                                               monitor:    1 x HDMI,  8 x HDMI female
                                               Keyboard & mouse:     4 x USB TYPE B female

                     Power:       1 x DC jack

Toggle switch:
                          Connection port selection:     8 x button
                          KVM reset:    1 x half embedded button

LED’s:
             selected:    8 x green
             online:    8 x red

Analog mode:    Keyboard and mouse: USB

Maximum resolution:    video 1080P @ 60HZ local

Scanning interval:    3, 5, 10, 15, 20, 30, 40, 60 seconds (default 3 seconds)

Operating environment:
                                          Operating temperature:    0-50 ° C
                                          Storage temperature:    -20-60 ° C
                                          Humidity:    0-80% RH, no condensation

Physical Properties:
                                     Housing:    metal
                                     Dimensions:    432 x 155 x 44 mm
                                     Weight:    6.15 KG -7KG

Features:    19 -inch widescreen LCD Monitor

LCD Display Assembly:
                                           LCD size ratio:    19 inches 16:9
                                           LCD type:    Wide AHVA TFT-LCD
                                           Visible area:    408.96(H) x 230.04(V)
                                           Resolution:    1920*1080@60HZ
                                           Support color:    16.7M color, True 8 bit
                                           Contrast:    1000 : 1 (Typ)
                                           Backlight:    LED
                                           Pixel spacing:    300*300um
                                           LED life:    100,000 hours
                                           Nominal input voltage:    +5.0V

Keyboard:
                  Keyboard layout:    Ultra-thin American 100- key, separate detachable keyboard.
                                                    (Keyboard language format is optional)
                  Compatible:     Microsoft, Windows9, Me/NT/2000/XP, WIN7 , Server2003, WIN8, WIN10
                  Interface:    Standard PS/2; USB (Chocolate Keyboard)
                  Service life:    >1,000,000 times

Mouse:
              Mouse type:    Touch the mouse
              Interface:    Standard USB
              X/Y resolution:    >1000 points / inch, (40x40 / mm)
              Service life:    >1,000,000 times



PRODUCT INCLUDES

(1) LCD KVM Console

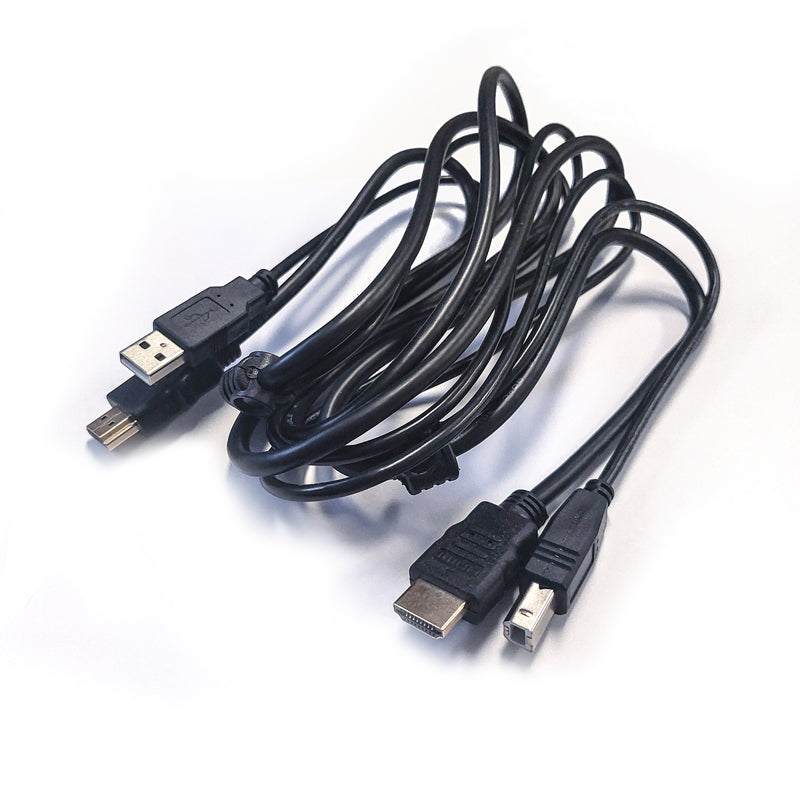

() KVM Cable

(1) Quick Installation Guide

(1) Instruction Manual (CD)

(1) 12v AC Power Adapter

(1) Standard Rail (Pair)

(1) Power Cord

(1) Lock Ears (Pair)
