The Fibre Attenuators are used in the fibre optic links to reduce the optical power at a certain fixed rate. LC Fibre optic attenuators work in 125 - 1625nm range with optional attenuation value from 1dB to 3dB.LC UPC fibre optic attenuator return loss is more than 55dB. These LC attenuators are manufactured and tested according to the industrial standards and they are 1% compatible to use with equipment and components from other suppliers.
PRODUCT SPECIFICATION
Attenuation Value: 1dB ~ 30dB
Operating Wavelength: 1240 ~ 1620nm (Dual 1310/1550nm)
Return Loss: UPC >55dB
APC >65dB
Attenuation: 1 ~ 7 dB ±0.5dB
Accuracy: 8 ~ 12 dB ±0.7dB
13 ~ 17 dB ±1.0dB
18 ~ 25 dB ±1.3dB
Maximum Optical Input Power: 1000mW
Polarization Dependent Loss: ≤0.1dB
Operating Temperature Range: -40 to 75
Storage Temperature Range: -40 to 85
Humidity: 95%RH
Operating Wavelength: 1240 ~ 1620nm (Dual 1310/1550nm)
Return Loss: UPC >55dB
APC >65dB
Attenuation: 1 ~ 7 dB ±0.5dB
Accuracy: 8 ~ 12 dB ±0.7dB
13 ~ 17 dB ±1.0dB
18 ~ 25 dB ±1.3dB
Maximum Optical Input Power: 1000mW
Polarization Dependent Loss: ≤0.1dB
Operating Temperature Range: -40 to 75
Storage Temperature Range: -40 to 85
Humidity: 95%RH
YOU'RE REVIEWING:

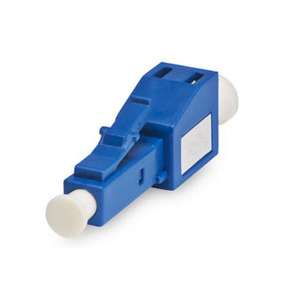

LC Singlemode Male to Female Attenuator 05dB
