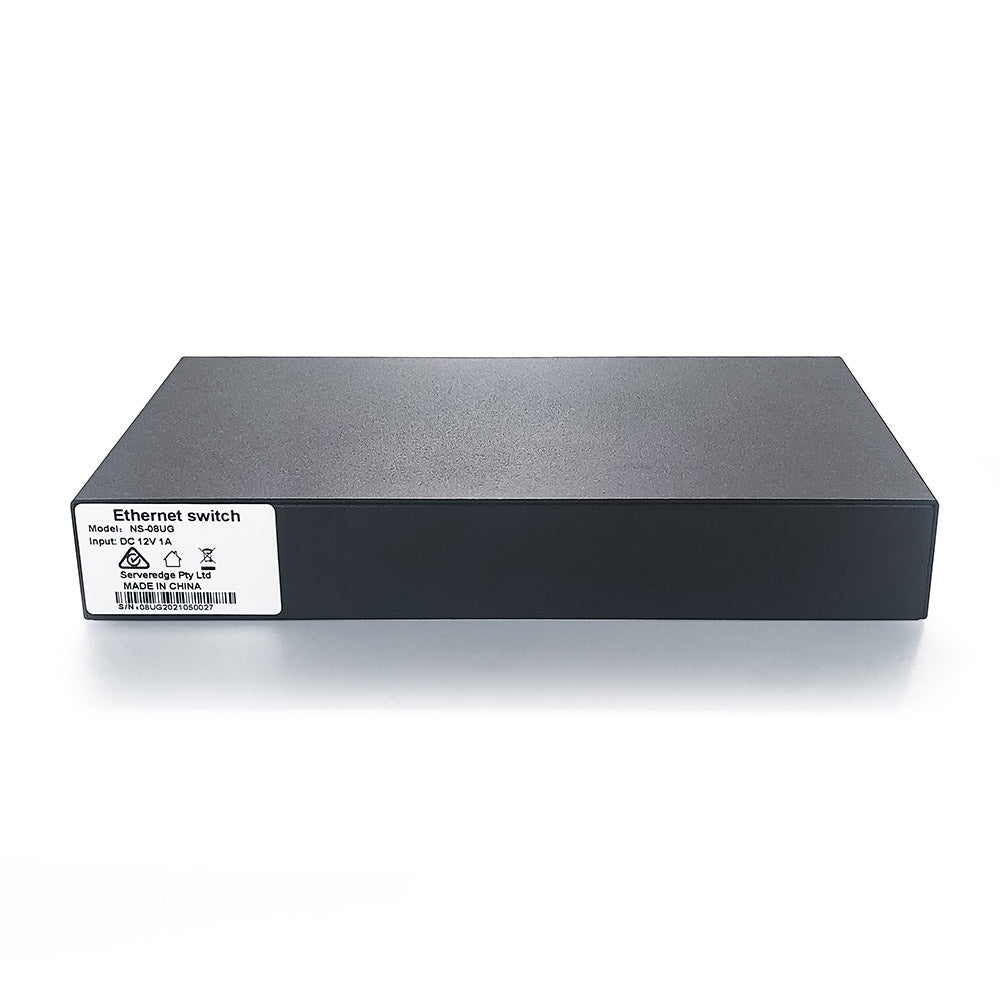

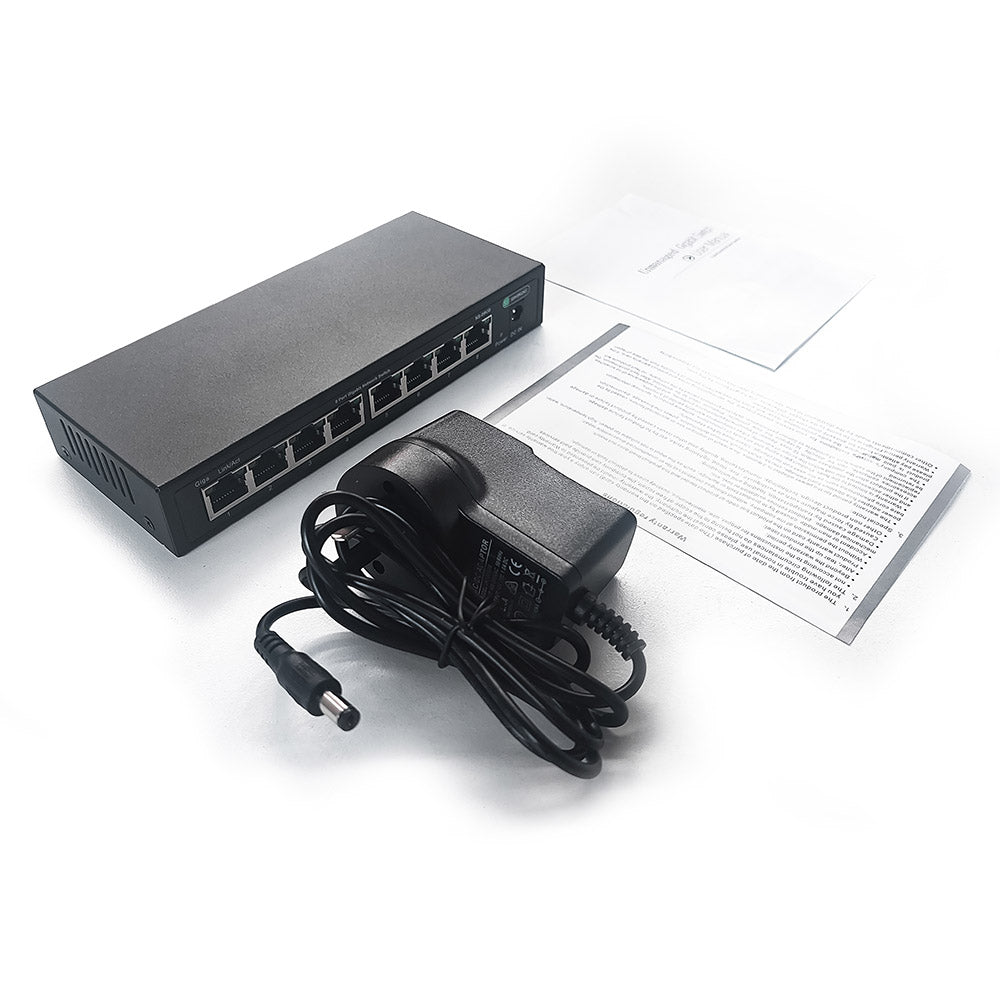

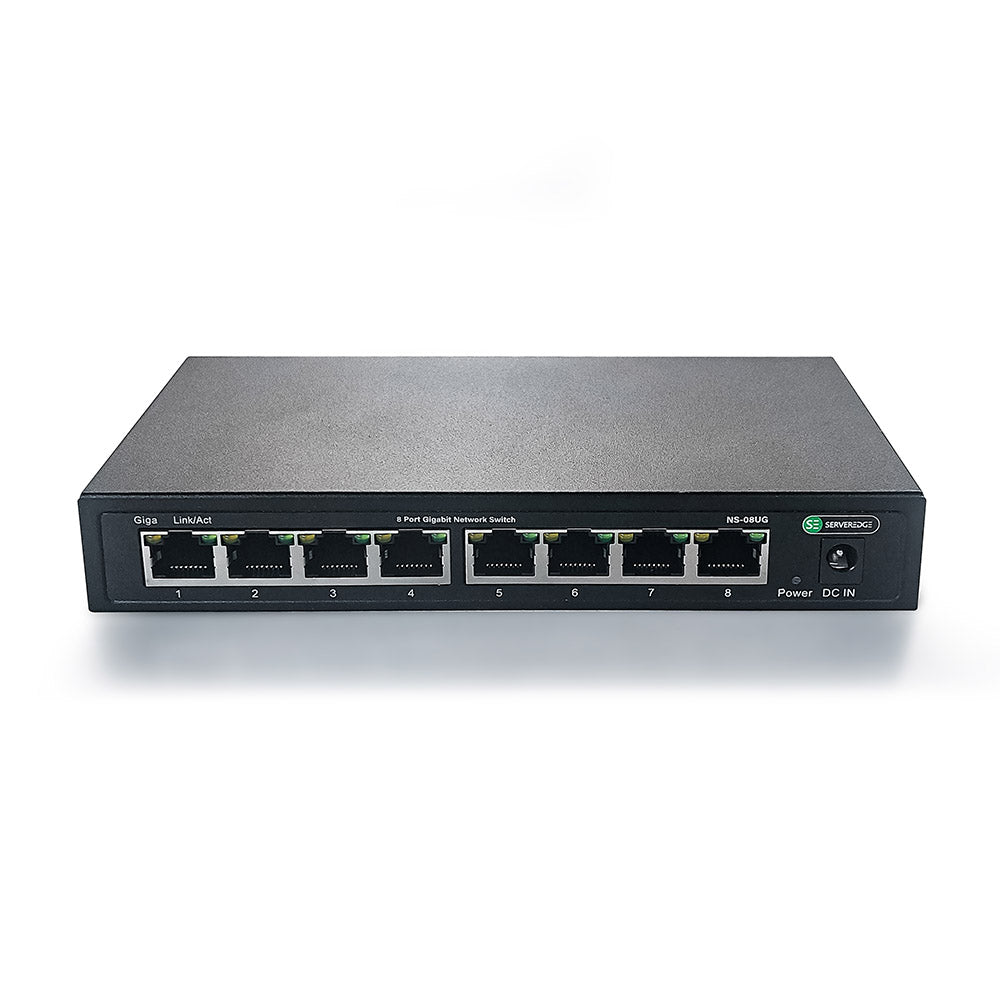

Serveredge 10/100/1000Base TX, 8 Port Gigabit Unmanaged Ethernet Switch


1 Year
Manufacturer's Warranty


The Serveredge NS-08UG, 10/100/1000Base-TX, 8 Port, Gigabit Unmanaged Ethernet Switch provides easy, reliable, and affordable network connectivity for small to large offices. With the Serveredge unmanaged plug-and play- switched, you can expand your network to multiple devices instantly.

The automated features of this gigabit switch make installation plug-and-play and hassle-free. No configuring is required. Auto MDI / MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10,100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Compact size enclosure makes it ideal for desktops with limited space, dynamic LED lights provide real-time work status and basic fault diagnosis.


* Innovative energy-efficient technology saves power up to 40%

* 100% Data filtering rate eliminates all error packets

* Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode

* Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput

* 16Gbps Bandwidth

* Auto-MDI/MDIX eliminates the need for crossover cables

* Supports MAC address auto-learning and auto-aging

* Support the port N-Way Auto-Negotiation, Store and Forward

* Compact size design for desktops

* Plug and Play design simplifies installation


* Fixed port: 8*10/100/1000Base-TX RJ45 port (Data)

* Function: N : (Standard normal)
                  V:  (Port isolation)
                  C:  (Flow Control mode)

* Network Protocol: IEEE 802.3
                                IEEE 802.3i 10BASE-T
                                IEEE 802.3u 100BASE-TX
                                IEEE 802.3ab 1000BASE-T
                                IEEE 802.3x
                                IEEE 802.1q VLAN

* Port Specification: 10/100/1000BaseT (x) Auto

* Transmission Mode: Store and Forward (full wire speed)

* Bandwidth: 16Gbps

* Packet Forwarding: 11.52Mpps

                                  Supports 9K jumbo packet length forwarding at wire speed

* MAC Address: 2K

* Buffer: 2.5M

* Transmission Distance: 10BASE-T : Cat3,4,5 UTP (≤250 meter)
                                        100BASE-TX: Cat5 or later UTP (150 meter)
                                        1000BASE-TX: Cat6 or later UTP (150 meter)

* Watt: Standby Power Consumption : ≤6W

* LED Indicator: PWR: Power LED
                          Port: (Green=100M LED+Orange=1000M LED)

* Power: External Power DC : 12V 0.5A

* Operating Temperature/Humidity: -10~+55°C ; 5%90% RH Non coagulation

* Storage Temperature/Humidity: -40~+75°C ; 5%95% RH Non coagulation

* Product Size/Packaging Size (L*W*H): 175mm*75mm*28mm

* Weight: 0.4kg (N.W) / 0.6kg (G.W)

* Installation: Desktop

* Lightning Protection Level: 3KV 8/20us

* Certificate: CE mark, commercial; CE/LVD EN60950 ; FCC Part 15 Class B ; RoHS ;



Part No.
# Port
NS-08UG 8
NS-16UG 16
NS-24UG 24
