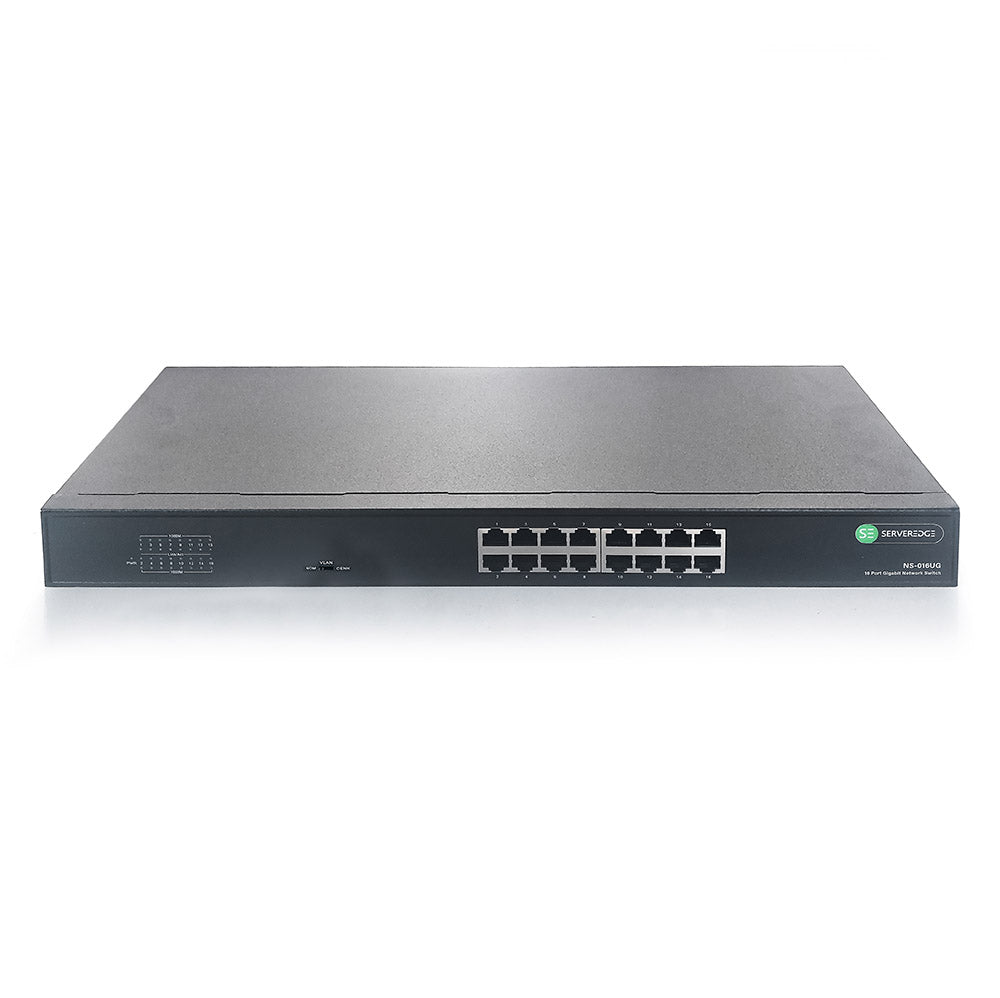

Serveredge 10/100/100Base TX, 16 Port Gigabit Unmanaged Ethernet Switch

The Serveredge NS-16UG, 10/100/1000Base-TX, 16 Port, Gigabit Unmanaged Ethernet Switch provides easy, reliable, and affordable network connectivity for small to large offices. With the Serveredge unmanaged plug-and play- switched, you can expand your network to multiple devices instantly.

The automated features of this gigabit switch make installation plug-and-play and hassle-free. No configuring is required. Auto MDI / MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10,100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Compact size enclosure makes it ideal for desktops with limited space while it is also rack mountable, dynamic LED lights provide real-time work status and basic fault diagnosis.

PRODUCT FEATURE


TECHNICAL SPECIFICATIONS

* Fixed port: 16*10/100/1000Base-TX RJ45 port (Data)

* Function: N : (Standard normal)
                  V:  (Port isolation)
                  C:  (Flow Control mode)

* Network Protocol: IEEE 802.3
                                IEEE 802.3i 10BASE-T
                                IEEE 802.3u 100BASE-TX
                                IEEE 802.3ab 1000BASE-T
                                IEEE 802.3x
                                IEEE 802.1q VLAN

* Port Specification: 10/100/1000BaseT (x) Auto

* Transmission Mode: Store and Forward (full wire speed)

* Bandwidth: 56Gbps

* Packet Forwarding: 40.32Mpps

                                  Supports 9K jumbo packet length forwarding at wire speed

* MAC Address: 8K

* Buffer: 4.1M

* Transmission Distance: 10BASE-T : Cat3,4,5 UTP (≤250 meter)
                                        100BASE-TX: Cat5 or later UTP (150 meter)
                                        1000BASE-TX: Cat6 or later UTP (150 meter)

* Watt: Standby Power Consumption : ≤15W

* LED Indicator: PWR: Power LED
                          1-16 : (Link LED=10/100M Link ; 1000M=Gigabit Link)

* Watt: Built-in Power AC : 100～240V 50-60Hz 1A

* Operating Temperature/Humidity: -10～+55°C ; 5%～90% RH Non coagulation

* Storage Temperature/Humidity: -40～+75°C ; 5%～95% RH Non coagulation

* Product Size/Packaging Size (L*W*H): 440mm*140mm*45mm
                                                                513mm*220mm*95mm

* Weight: 1.6kg (N.W) / 2.1kg (G.W)

* Installation: Rack-mount

* Lightning Protection Level: 3KV 8/20us
                                              IP30

* Certificate: CE mark, commercial; CE/LVD EN60950 ; FCC Part 15 Class B ; RoHS ;
