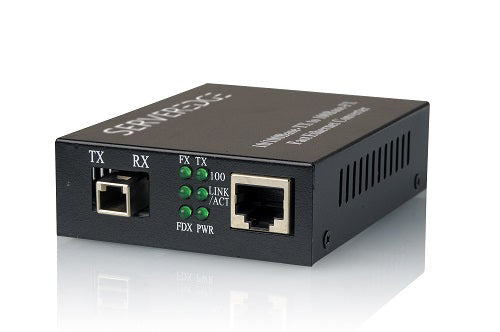

The Serveredge SED-100MTRJ fibre media converter allows you to connect your copper infrastructure to the fibre channel and vice versa. The built-in 10/100 switch enables the fibre cable connection to operate at 100Mbps connected to either a 10BaseT or a 100BaseTX network, while remaining completely 100BaseFX standard-compliant. Fibre connection can also operate in full duplex mode whether the RJ-45 port is connected to a full duplex switch or a half duplex hub, with the built-in switch providing the network segmentation that permits the maximum fibre distance. Each media converter provides a 10/100 BaseT/TX Auto-negotiating RJ-45 twisted-pair connector port featuring store-and-forward switching architecture. Auto MDIX capability on the twisted-pair port allows for convenient connections.
PRODUCT FEATURE
* Built-in Twisted-Pair Port 10/100 Switch
* Auto-Negotiation RJ45 Connector with Auto-MDIX
* SC, ST, MTRJ or LC Connector
* LEDs for Functions, Links & Activity
* Link Fault Signaling for use with Managed Switches
* 1024 Mac Address Capacity
* Store and Forward Architecture
* Full and Half Duplex Operation
* Singlemode spans up to 10Km
* Wall or Chassis Mountable
* IEEE 802.3 10BaseT and IEEE 802.3u 100BaseTX & IEEE 802.3u 100BaseFX Compliant
PRODUCT SPECIFICATION
Per Unit: Power status, RJ-45 port speed
Per Port: LNK/ACT, FDX/COL
Six LEDs total
PERFORMANCE
Latency: < 4.2 μs (LIFO)
Throughput @ 100Base: 148,809 pps (64-byte packets)
Speed:
100BaseTX: 100/200 Mbps for half/full duplex
10BaseT: 10/20 Mbps for half/full duplex
Switching Method: Store-and-Forward
Maximum MAC Addresses: 1,024 entries
Memory: 256 KB
FIBRE INTERFACE, MULTIMODE MODELS
Type: LED
Wavelength: 1300 nm nominal (1270 nm maximum, 1380 nm minimum)
Maximum Output Power: - 14.0 dBm
Minimum Output Power: - 20.0 dBm
Sensitivity: -33.0 dBm
Maximum Input Power: - 8.0 dBm
Link Power Budget: 13.0 dB
