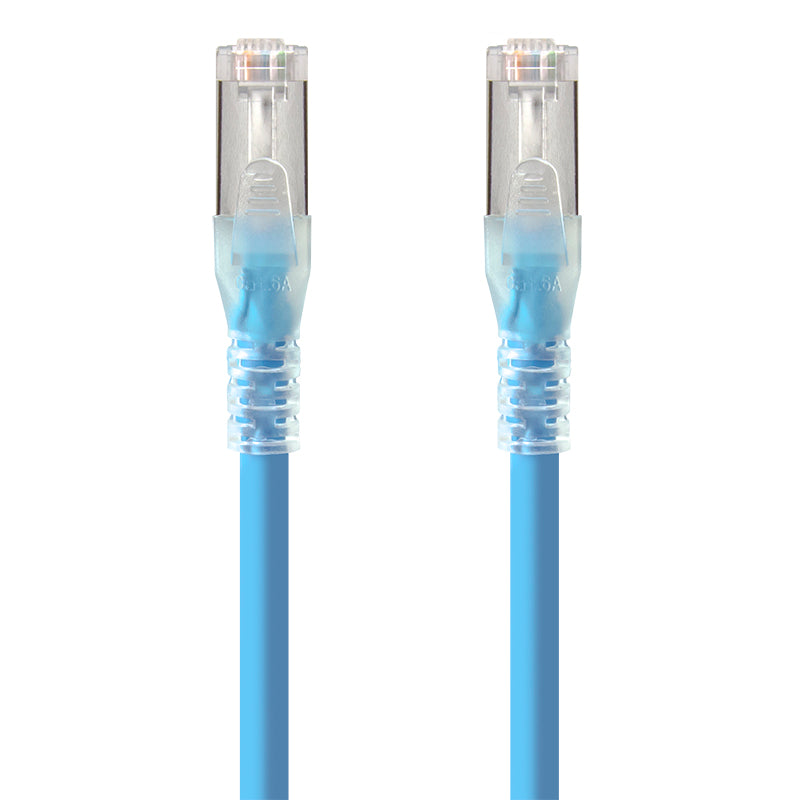

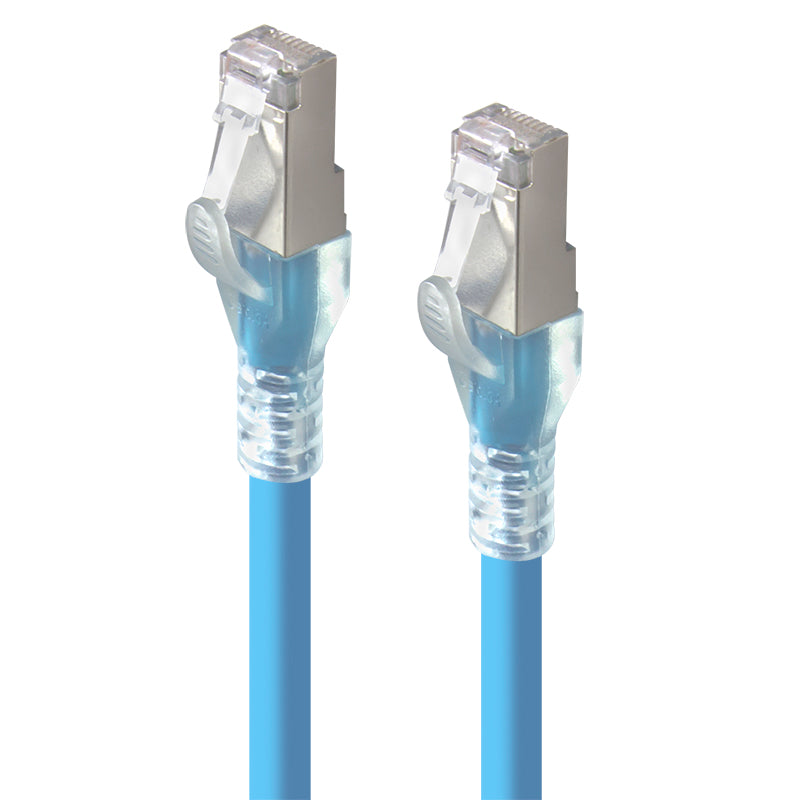

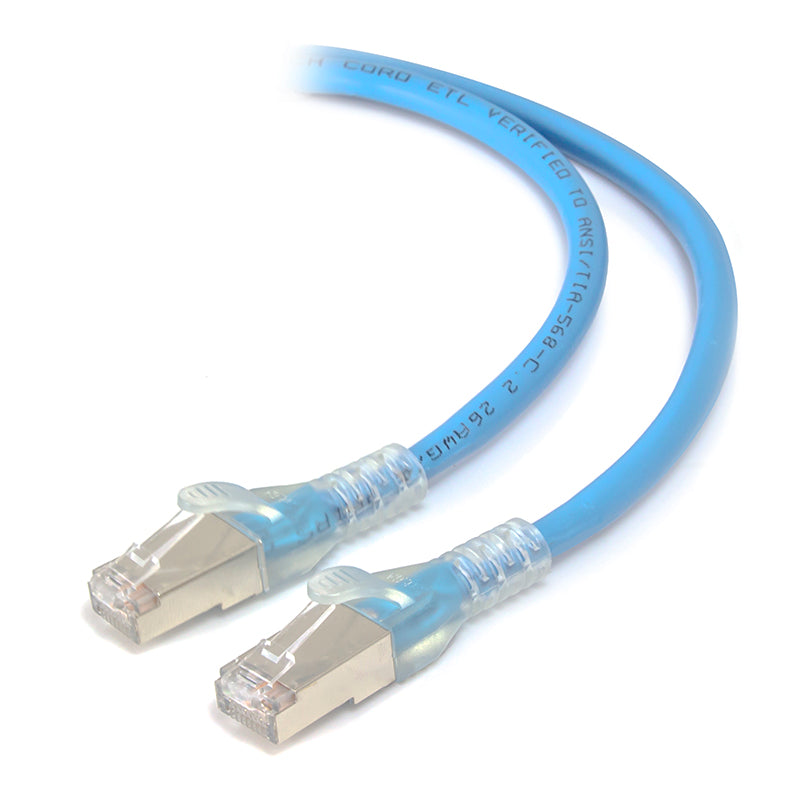

SERVEREDGE 10GbE Shielded Cat6A LSZH Network Cable

SKU: C6A-YY-XXXX-SH

The SERVEREDGE 10GbE Shielded Cat6A LSZH Network Cable are available in various lengths starting from 0.5m to 30m length
Lifetime
Manufacturer's Warranty



Serveredge Cat6A shielded network cables are designed to meet and exceed the requirements for the next generation 10GBASE-T applications. The Serveredge Cat6A cabling system provides an End to End solution that provides a guaranteed 750 Mhz of usable bandwidth. The Serveredge Cat6A solution consists of Pre Terminated Cables, Patch Panels, Modular Jacks, Connectors and Bulk Installation Cables.






PRODUCT FEATURE

• Performance rated for 750 MHz bandwidth
• Suit for up to 10G LANs, include 10GBASE-T Ethernet, 1000BASE-TX Fast Ethernet, & Lower
• Each twisted pair in the cable is individually wrapped in aluminum foil Mylar (100% Coverage)
• Overall Copper Braided Shielded
• Comes with LSZH (Low Smoke Zero Halogen) Jacket
• Category 6A SFTP cable wired straight through. 26 AWG, gold plated 8x8 (RJ45) plugs
• Snag-free strain relief molded boot provides secure and accurate connection
• Suppresses ANEXT (Alien Near End Cross Talk) and delivers superior 10GbE performance up to 100mt.
• A-Tick Complaint as per ACMA requirement
• ETL verified to TIA/EIA-568C.2.1 Category 6a
• Complaint to IEC 802.3an standards & ISO/IEC 11801
• UL Approved
• Warranty: Lifetime*






PRODUCT SPECIFICATION



Wiring Scheme T568A
Standard Category 6a TIA/EIA-568C-2.1
Connector 50 micron gold-plated RJ45
Temperature Rating 75°C
Voltage Rating 30V
Approvals

A-Tick, ETL, UL, IEEE, RoHS
Compliant

Package Type Polybag
Jacket

LSZH (Low Smoke Zero
Halogen)

Connector Type 8P8C (RJ45)
Conductor Type

26AWG (7/0.16), Stranded
Bare Copper








ORDERING INFORMATION



C6A-0.5-XXXX-SH 0.5m Blue, Grey, Black, Purple, Red, Green, Yellow, White, Pink, Orange
C6A-01-XXXX-SH 1m Blue, Grey, Black, Purple, Red, Green, Yellow, White, Pink, Orange
C6A-1.5-XXXX-SH 1.5m Blue, Grey, Black, Purple, Red, Green, Yellow, White, Pink, Orange
C6A-02-XXXX-SH 2m Blue, Grey, Black, Purple, Red, Green, Yellow, White, Pink, Orange
C6A-03-XXXX-SH 3m Blue, Grey, Black, Purple, Red, Green, Yellow, White, Pink, Orange
C6A-05-XXXX-SH 5m Blue, Grey, Black, Purple, Red, Green, Yellow, White, Pink, Orange
C6A-7.5-XXXX-SH 7.5m Blue, Grey
C6A-10-XXXX-SH 10m Blue, Grey, Black, Purple, Red, Green, Yellow, White, Pink, Orange
C6A-15-XXXX-SH 15m Blue
C6A-20-XXXX-SH 20m Blue
C6A-25-XXXX-SH 25m Blue
C6A-30-XXXX-SH 30m Blue
