Serveredge 10RU Slide & Swivel Racks

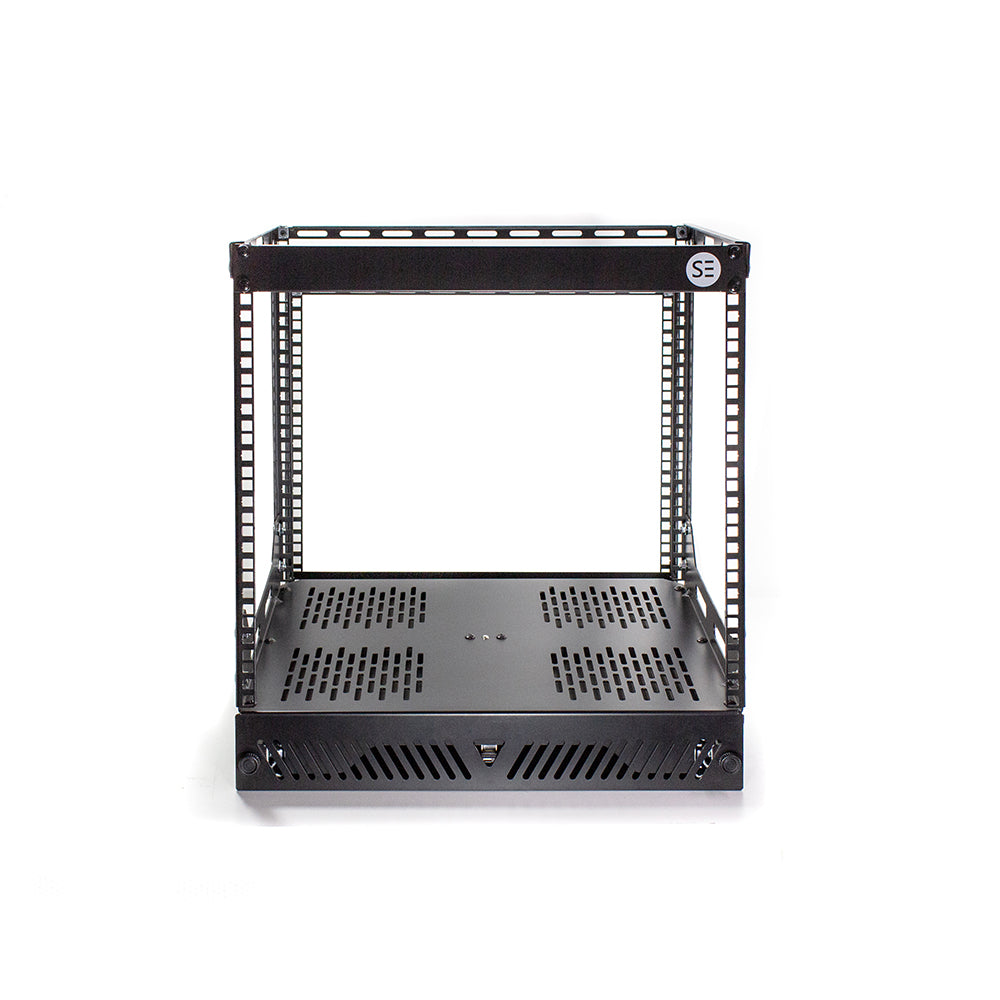

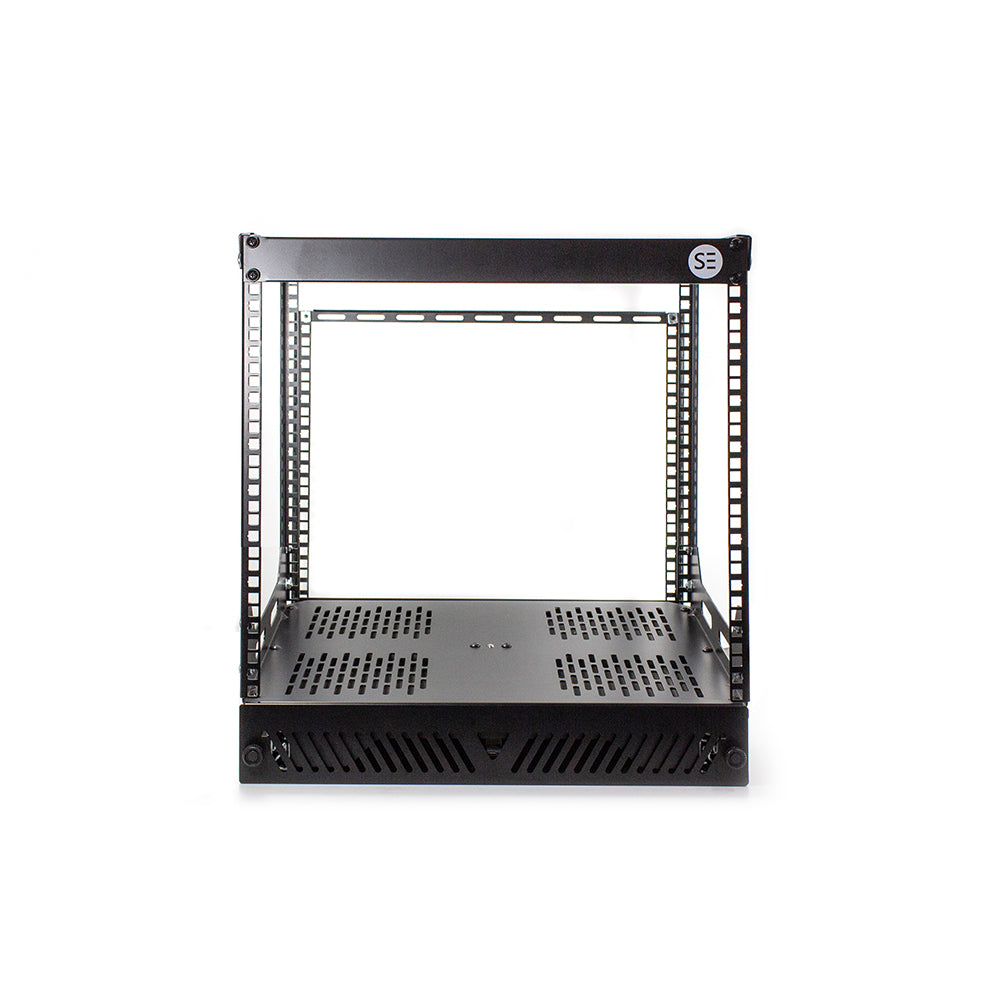

The Serveredge 19 Inch Slide Out Rack consists of a top unit and rotating base.
25 Years
Manufacturer's Warranty


The Serveredge 19 Inch Slide Out Rack allows for easy access to equipment inside closed spaces such as cabinets and flush in-wall installations.

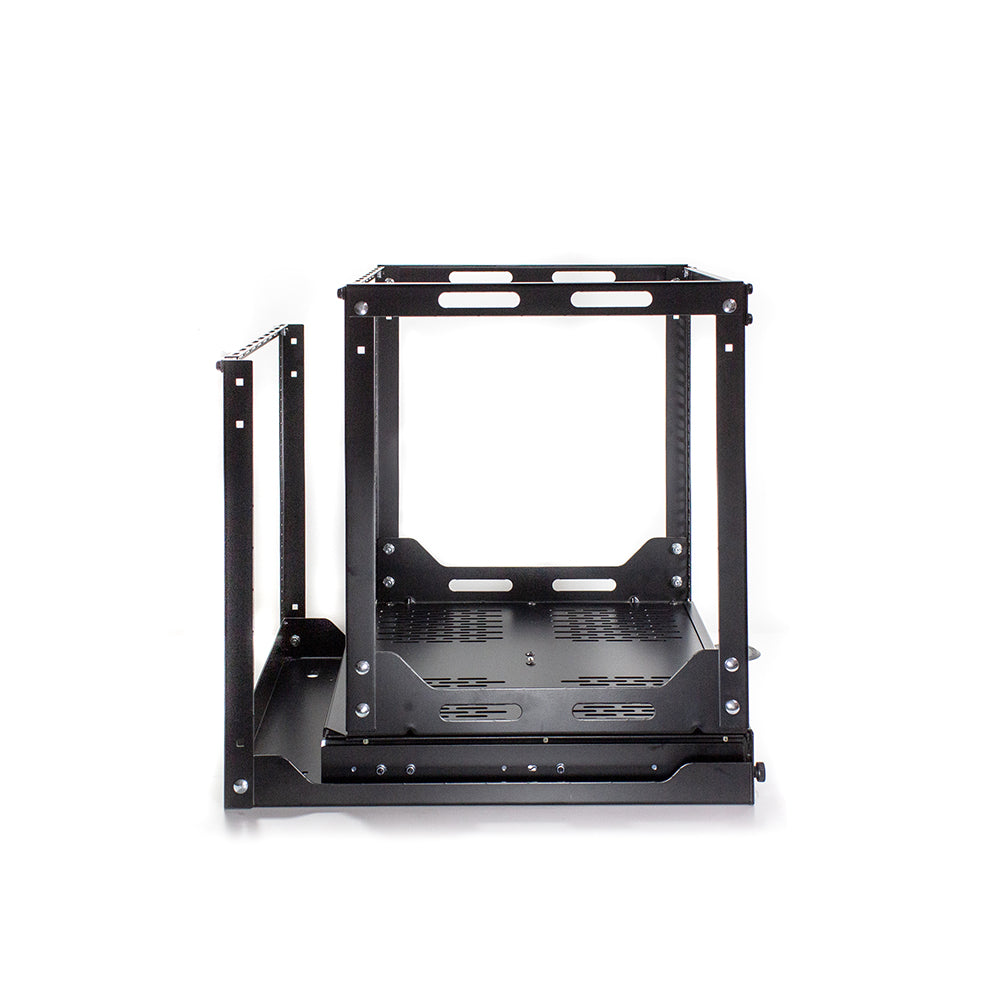

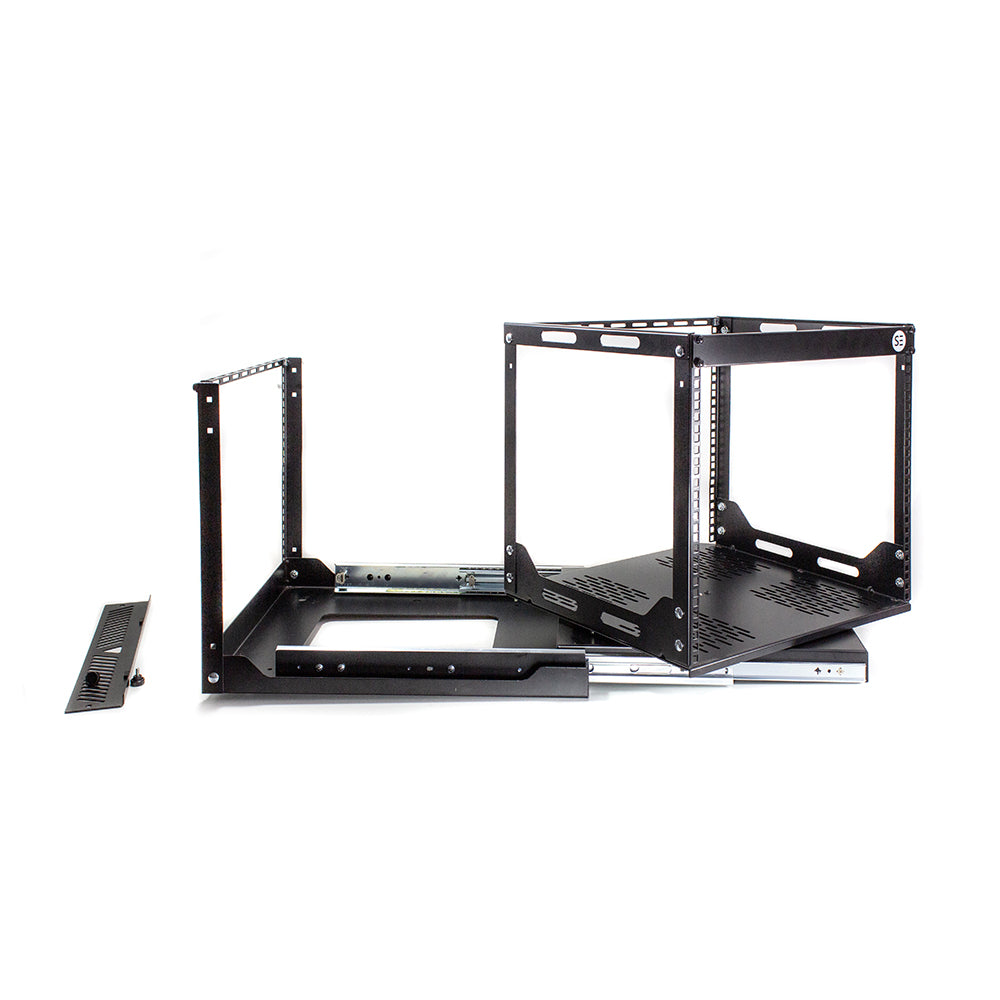

The rack features a sliding rack frame on top of the base designed to be securely bolted or screwed to a flat solid surface. The top unit slides out and locks in an extended position. It can be rotated left and right up to a 90 degree angle and locked at 0º and 90º for easy installation.

The rack comes with cable management lacing bars pre-installed to the rear, eliminating cable tension and providing an easy and clean installation.



• Features a sliding and swivelling rack frame on top of a fixed base

• Locks in the extended position for simplified equipment integration

• Rear installed retractable cable tray works in conjunction with rear cable support bars for effective cable management

• Rotating locking mechanism can be locked at 0º, 60º and 90º for easy installation and servicing

• Pre-drilled holes to secure the rack directly to the floor

• Easy to assemble

• Supports a static loading capacity of 60kg

• Warranty: 25-years*





Rack Height 10RU
Colour Black
Weight Capacity - Stationary (kg) 56.5
Unit Dimensions (mm) 529(H) x 570(D) x 491(W)
Shipping Dimensions (mm) 220(H) x 610(D) x 625(W)
Unit Weight (kg) 21.85
Gross Weight (kg) 24.86




(1) Slide & swivel server rack

(4) Cable support bar
