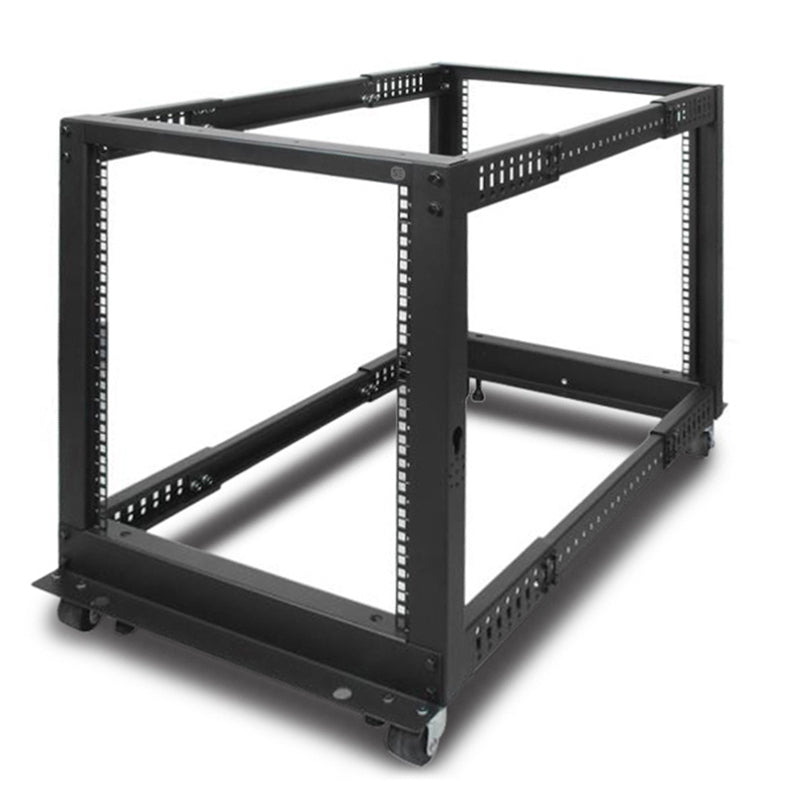

The Serveredge CBN-4P-12RU Open Frame 4 Post Server Rack is a perfect solution for securely storing your standard rack mount equipment in a sturdy, adjustable depth open-frame rack.
With features such as easy-to-read markings for both rack units (RU) and depth and a wide range of mounting depth adjustments (560-1020mm), this server rack is designed with ease of use in mind, making it easy to adapt the rack to fit your equipment.
It has a static loading capacity of up to 545kg. It is also compliant with industry rack standards (EIA/ECA-310, IEC 60297, DIN 41494), signifying its compatibility with most rack equipment.
PRODUCT FEATURE
* Adjustable mounting depth from 560-1020mm
* Supports a static loading capacity of 545kg

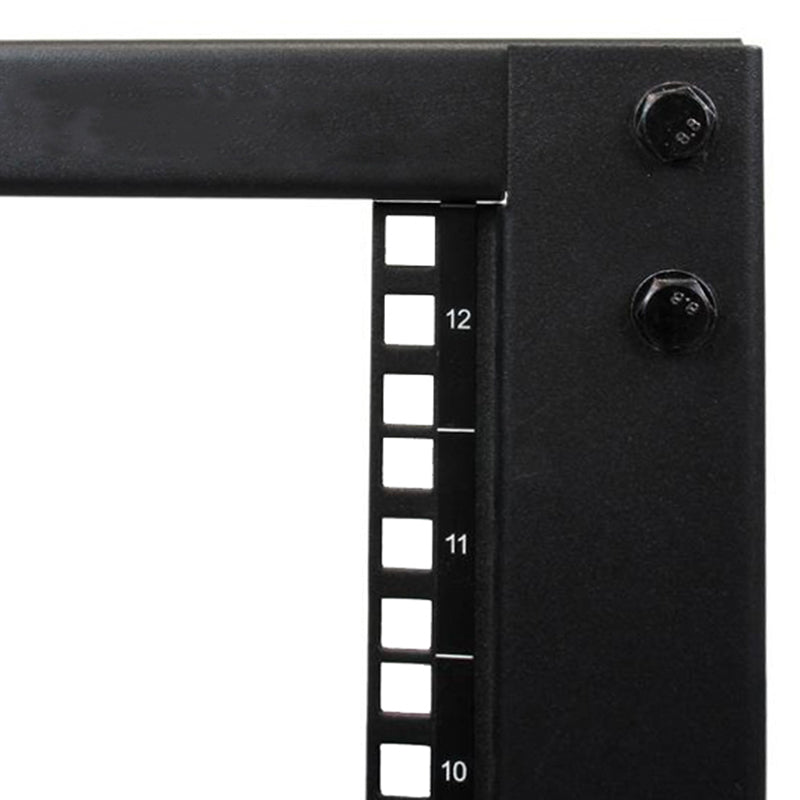

* Easy-to-read rack Unit (RU) and depth adjustment markings

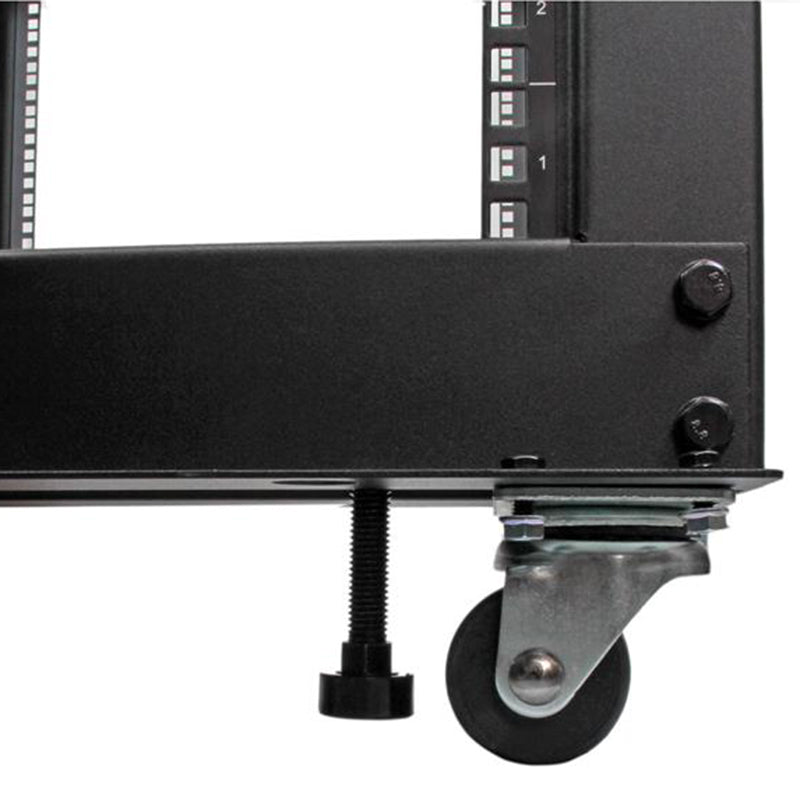

* Castors, leveling feet and cable management hooks included
* Pre-drilled holes to secure the rack directly to the floor
* Easy to assemble
* Confirm to Standard DIN 41494, EIA/ECA-310-E, IEC 60297-3-100
* Flat-packed for easy shipping
* Warranty : 25-years
PRODUCT SPECIFICATION
Castors: Yes
Frame Type: Open Frame
Rack Type: 4 Post
RU Height: 12RU
Weight Capacity: 545kg
Colour: Black
Enclosure Type: Steel
Dimensions: 720mm (H) x 610mm (W) x 690-1100mm (D)
Maximum Distance between Front and Rear Rack Rails: 1020mm
Minimum Distance between Front and Rear Rack Rails: 560mm
Flat Pack: Yes
Product Weight: 21kg
Shipping (Package Weight): 24kg
PACKAGE INCLUDES
(2) Left Vertical Rail
(2) Right Vertical Rail
(2) Base Bracket
(8) Corner Section
(4) Center Section
(2) Top Bracket
(48) M8 Bolt
(48) M8 Washer
(1) M8 (13mm) Wrench
(1) M6 (10mm) Wrench
(1) Phillips Screwdriver
(32) M6 Cage Nuts
(32) PVC Cup Washer
(32) M6 Phillips Head Screw

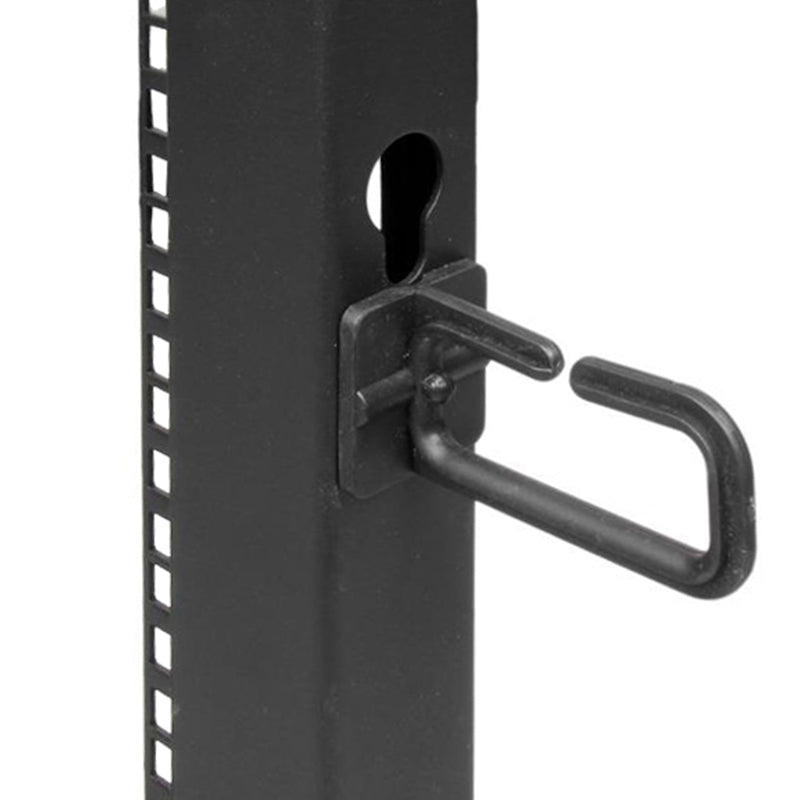

(12) Cable Management Hook
(12) Hook Mounting Screw
(4) Castors
(4) Levelling Feet
(16) M6 Screw
(16) M6 Flat Washer
(16) M6 Flange Nut
(4) Grounding Wires
