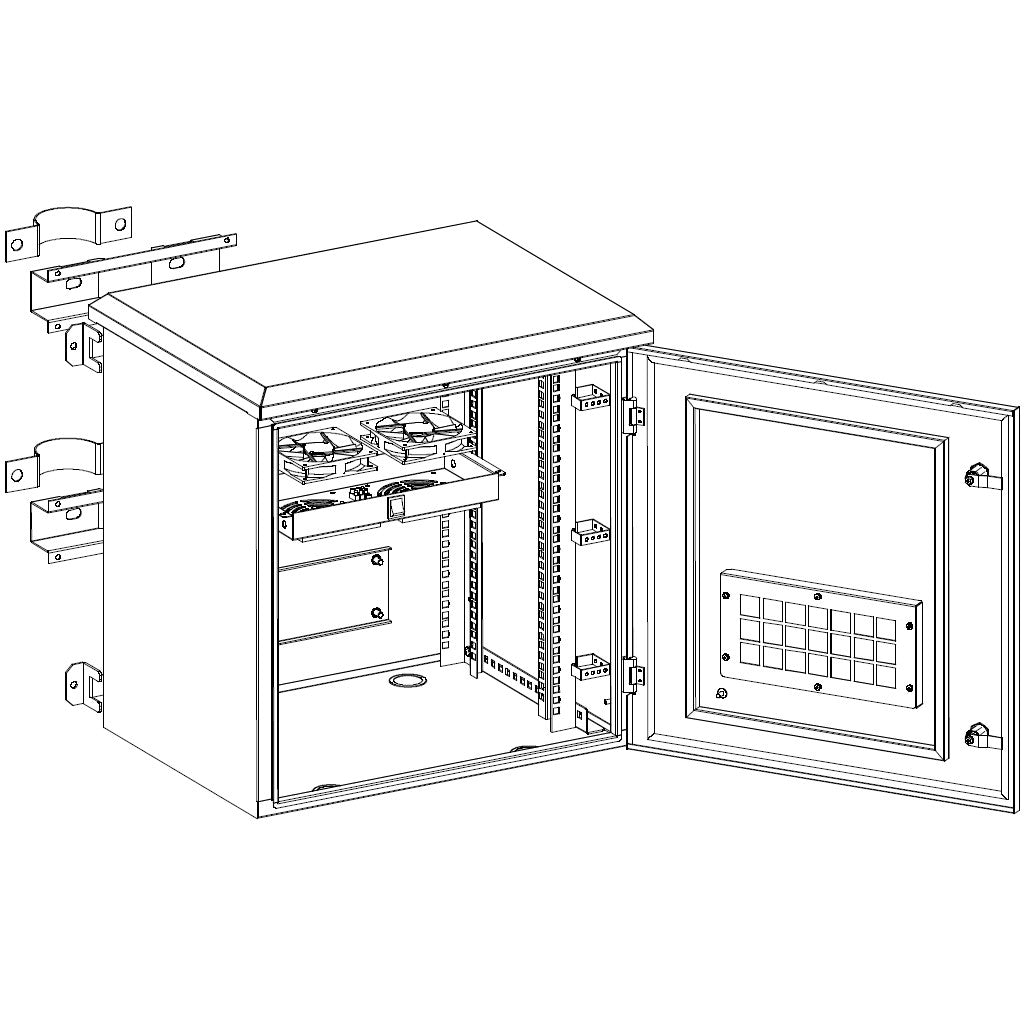

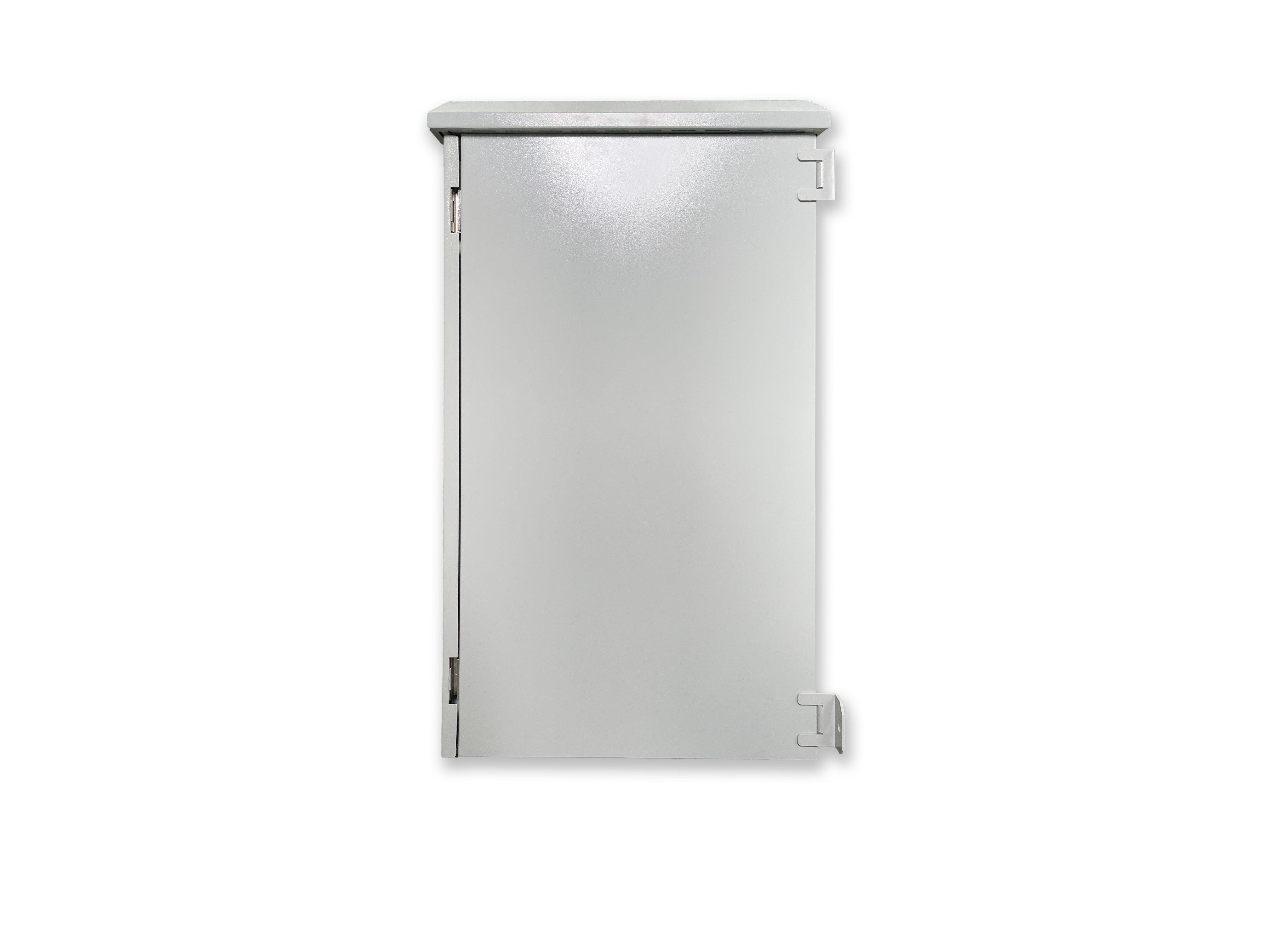

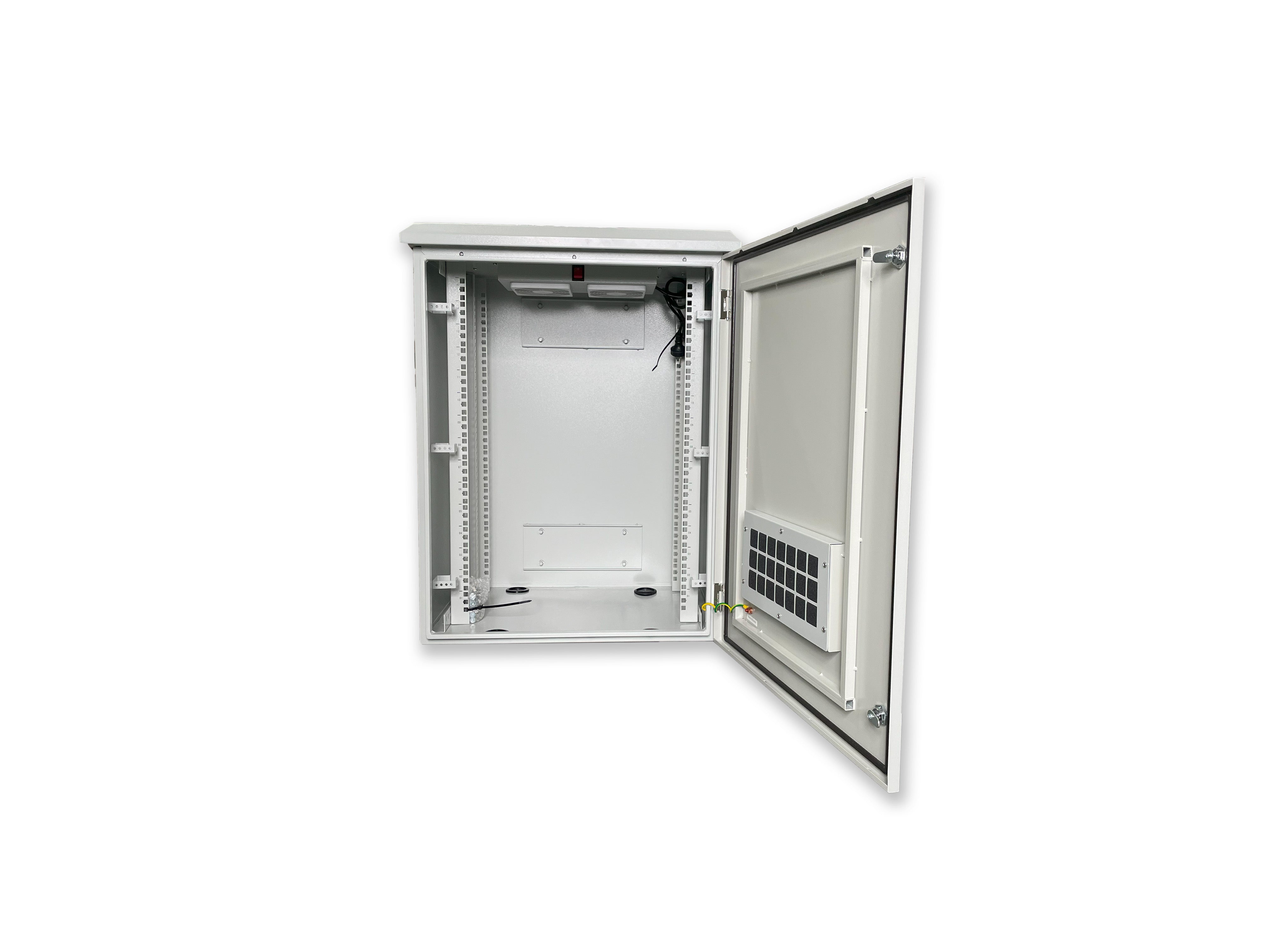

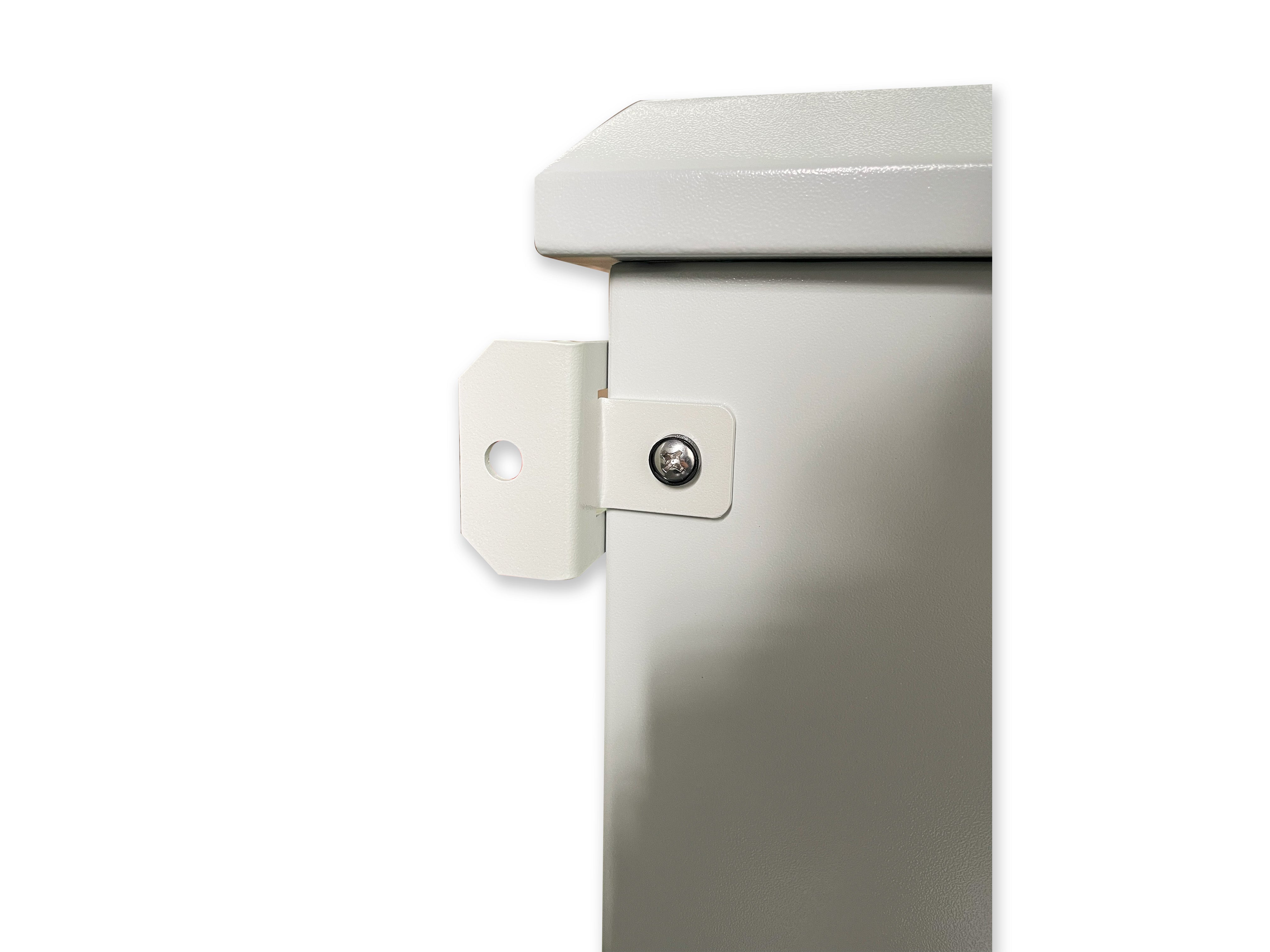

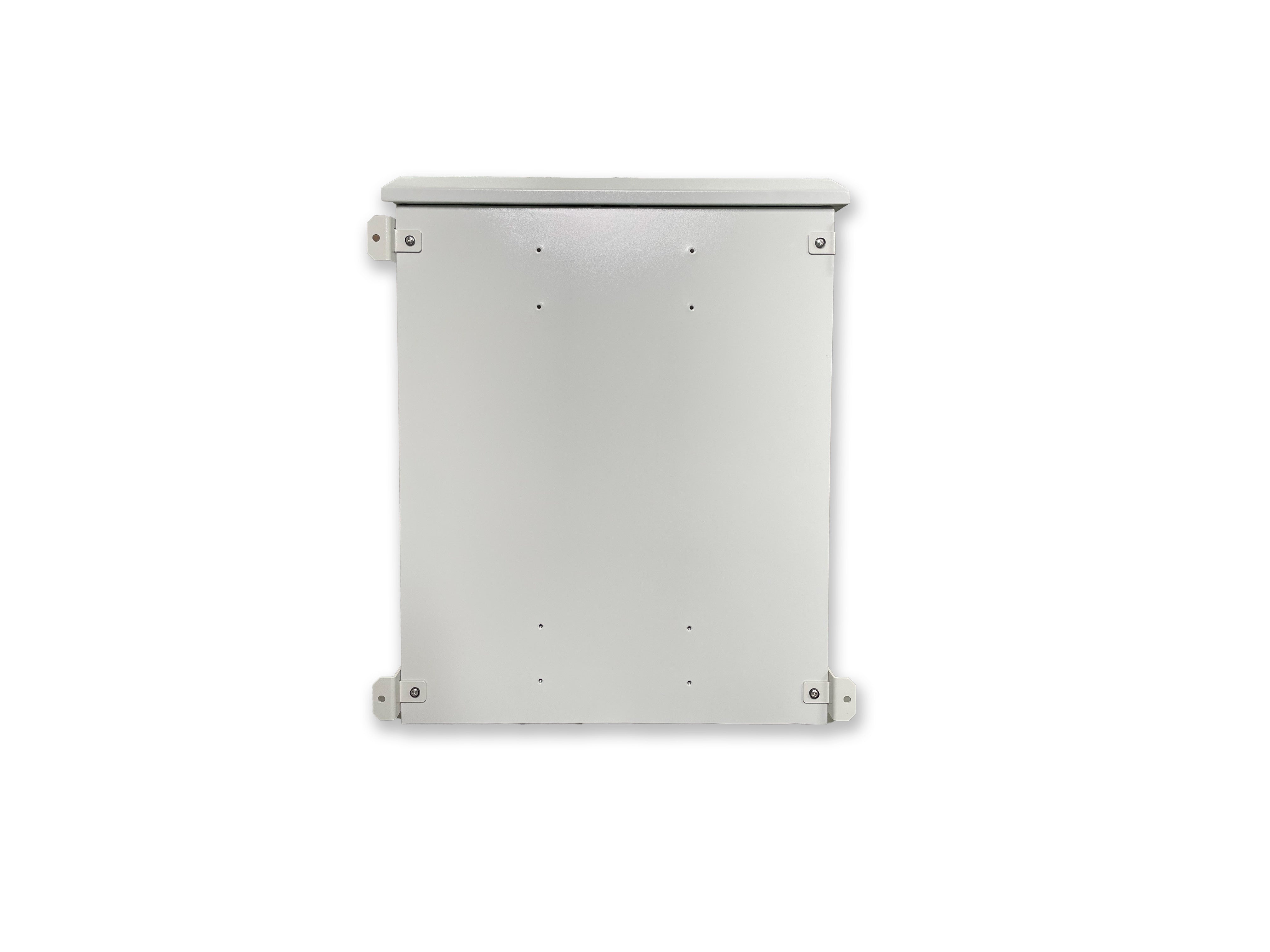

Serveredge 15RU IP56 Rated 600mm Wide & 450mm Deep


2 Years
Manufacture's Warranty

Serveredge IP56 Rated Wall Mount cabinet / enclosures are designed for heavy duty outdoor applications to house sensitive data network equipment in the harshest environments. They are suitable for internal and external installations where equipment may be exposed to dust and water. This Serveredge cabinet is made up of heavy duty fully welded steel construction, with wall mount brackets and an optional pole mount alternative. Vertical Mounting Rails in the cabinet are adjustable and accommodate all standard 19 inch rack equipment. The solid steel front door consists of filtered ventilation while the roof hood support an integrated 2 way fan unit that ensures generous airflow to keep your equipment operating safely.

The cabinet ships fully assembled and comes with a 2 year manufacturer's product warranty, nullified if installed in salty or corrosive enviroments.



• Designed for limited space environments where equipment needs to be secure and out of the way
• Adjustable front & rear vertical rack mount rails
• Water Proof Locks (front door)
• IP56 Rating
• Dual fan Unit
• Rubber Glands in bottom panel for cable routing
• Fully assembled for quick installation



*  Rack Height:     15RU
*  IP Rating:     IP56
*  Shipping Dimensions (WDH/mm):     700 X 560 X 845
*  Shipping weight (kg):     46.5
*  Unit Dimensions (WDH/mm):     660 X 480 X 773
*  Unit weight (kg):     45.5
*  Colour:     RAL 7035
*  Weight Capacity - Stationary (kg):     60
*  Grounding lug:     Front Door
*  Preset Mounting Distance (front to rear mounting rails) (mm):     310
*  Maximum Mounting Distance (front to rear mounting rails) (mm):     350
*  Minimum Mounting Distance (front to rear mounting rails) (mm):     136




(1)    Serveredge Wall Mount IP56 Enclosure
(20)  M6 screws
(20)  M6 cage nuts
(20)  M6 washers
(4)   Rubber Glands for cable entry
(2)   Keys
(1)   2 Way Fan Unit
