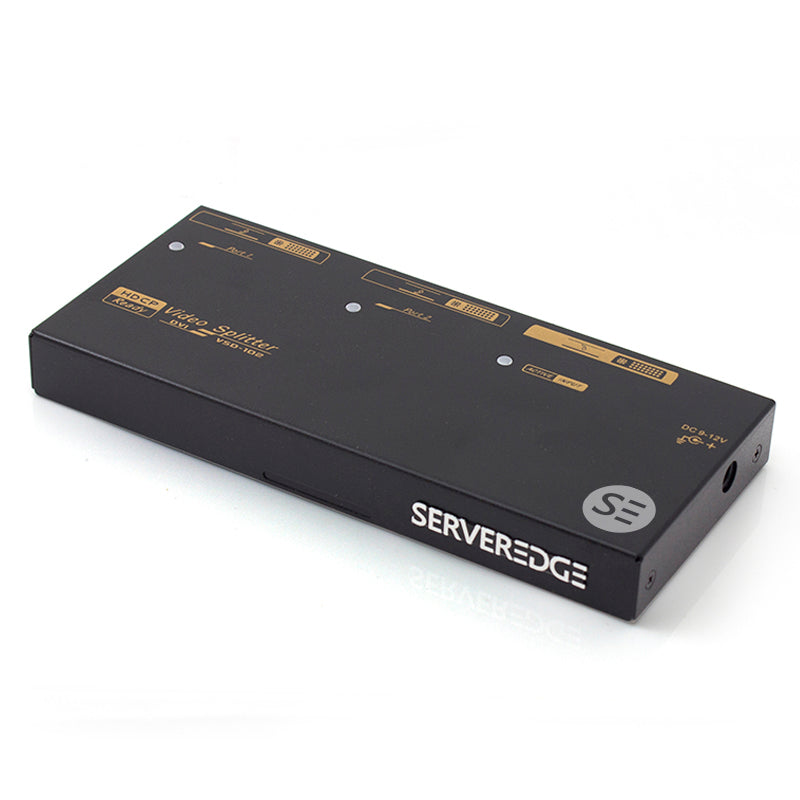

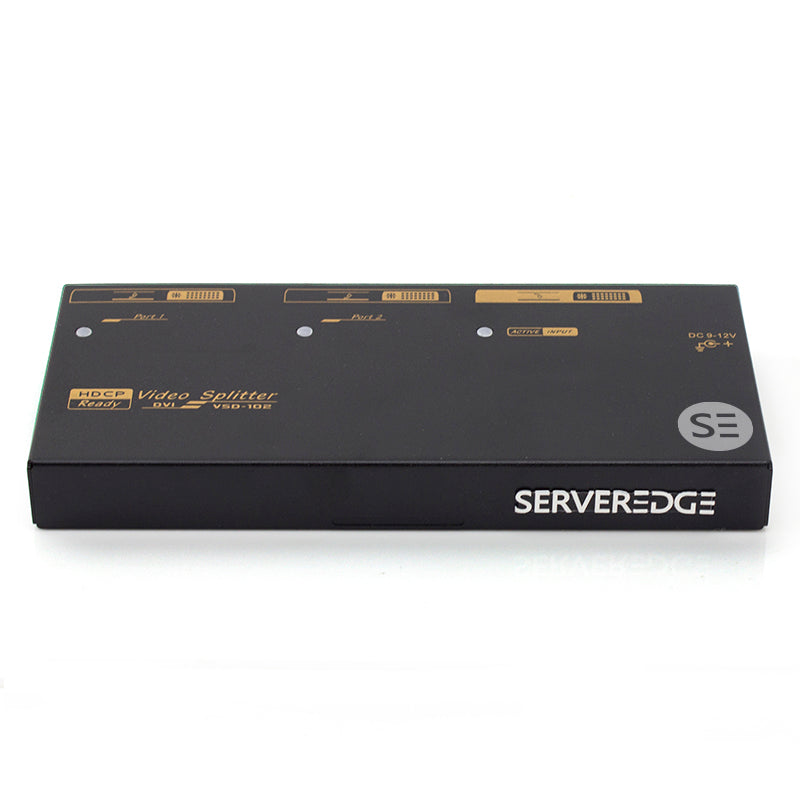

The Serveredge 2 Port DVI Video Splitter is an easy and affordable solution for duplicating one video input into multiple DVI outputs. It supports up to UXGA (1600 X 1200), WUXGA (1920 X 1200) and FULL HD 1080p (1920 X 1080).
PRODUCT FEATURE
* Easy and affordable way to duplicate one video input to multiple DVI outputs
* Automatic power-save when signal input is lost
* Cascaded operation for increased signal outputs
* Crisp clear video images
* Support EDID, HDCP, and is Blu-ray ready for high definition display
* Support DVI / HDMI display resolutions of up to UXGA (1600 x 1200), WUXGA (1920 x 1200), Full HD 1080p (1920 x 1080)
* Support audio function for HDMI / Audio over DVI source devices
* LED indicators for signal activity monitoring
* Accurate and reliable reproduction of digital video signals without attenuation and distortion
* Installs in seconds
PRODUCT SPECIFICATION
| Number of Video Outputs | 2 | |
| Video Resolution (max.) / Signal Type |
Full HD 1080p (1920 x 1080) / VGA (640 x 480) |
|
| LED Indicators Power active Video OK | Dual color x 1 | |
| LED Indicators Video outputs | 2 | |
| Rack Mountable (optional) | N/A | |
| Cable Length (max.) | 10M (depends on cable quality) | |

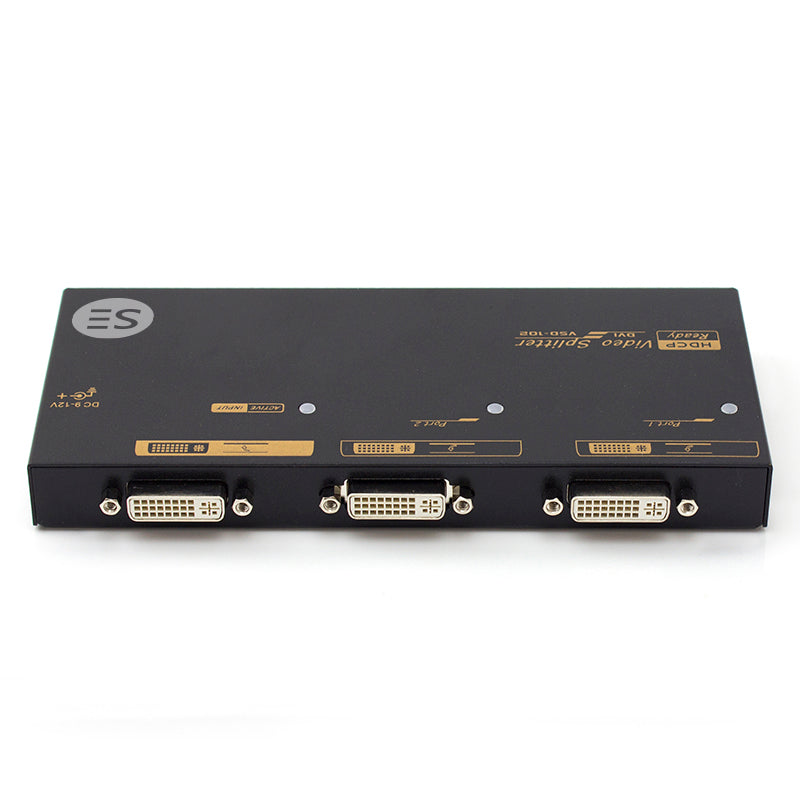

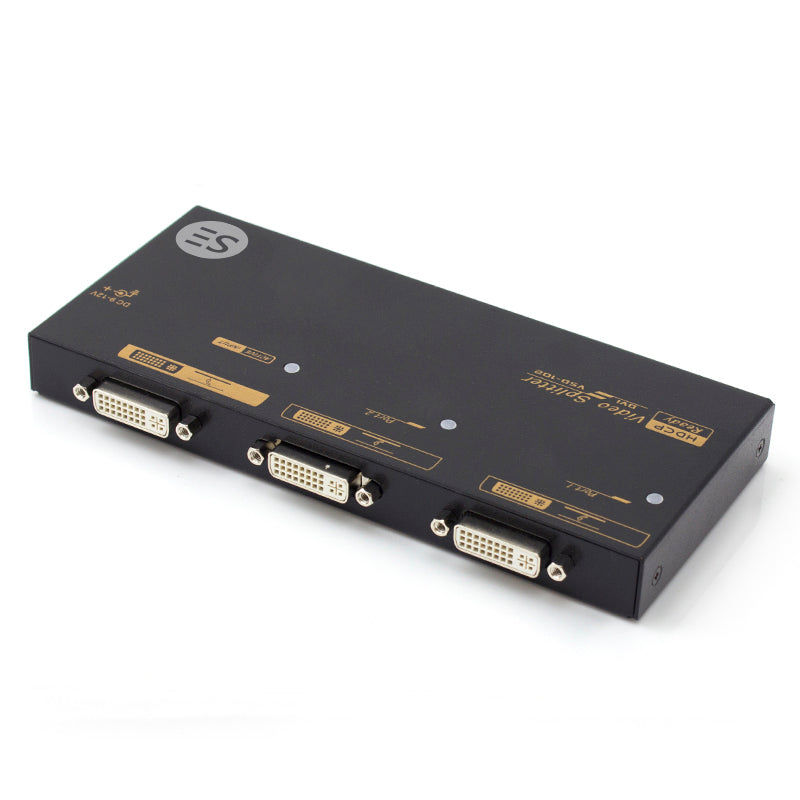

| Connectors Input | DVI Female X 1 | |
| Connectors Output |
DVI Female X 2 |
|
| Enclosure | Metal | |
| Power Consumption (Max.) | 2.7W 2.8W |
|
| Operating Voltage | DC 9~12V | |
| Dimensions H X W X D (mm) | 20 X 180 X 85 | |

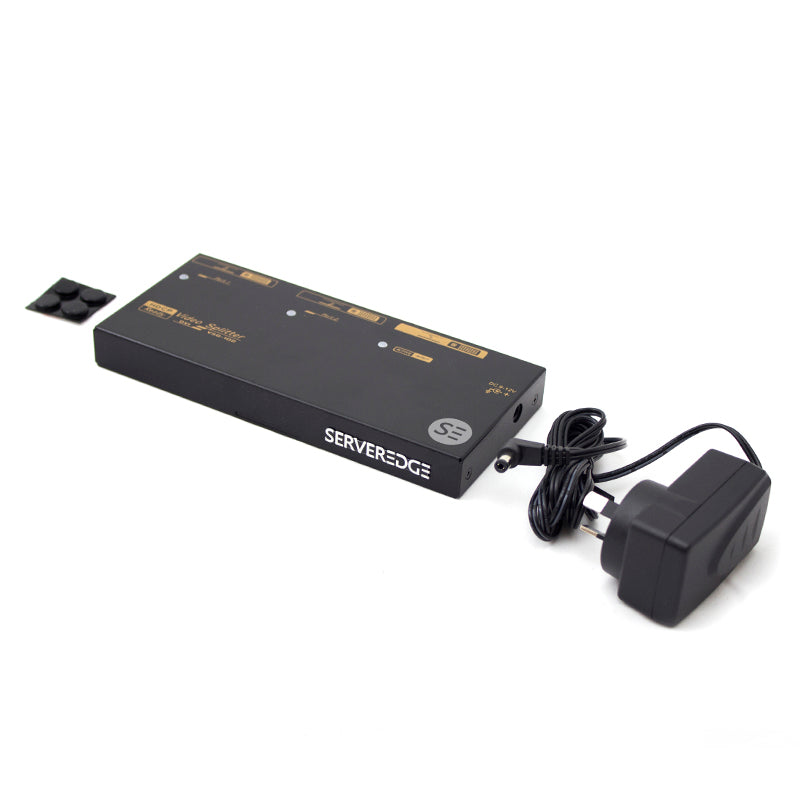

PACKAGING INCLUDES
| DVI Video Splitter | 1 |
| Power Adapter Set (option: Power Adapter with necessary AC Cord/Plug-in Power Adapter) | 1 Set/Pc |
| User's Manual | 1 |
| Foot Pad Set | 1 |
