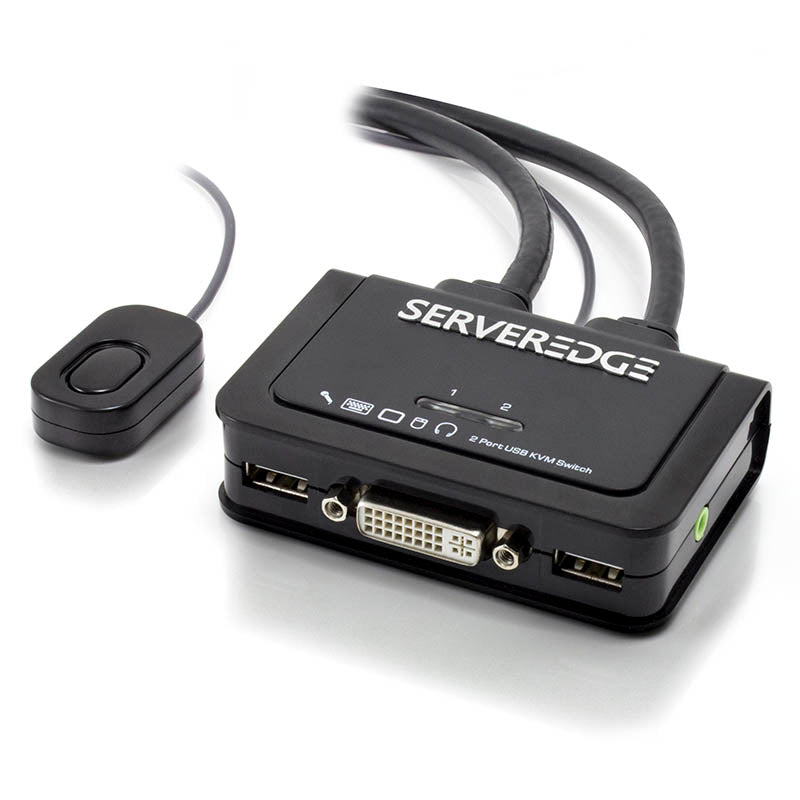

The Serveredge KP02UDA is a 2-port USB Cable KVM Switch with 2 x fixed KVM cables and 1 x QuickSwitch button for wired remote control. It also provides Audio and Microphone switching function for uninterrupted multimedia experience. It allows you to access, control, boot and reboot multiple multimedia computers using only one USB keyboard, mouse, monitor and a speaker set and microphone.
PRODUCT FEATURE
* 1 x wired QuickSwitch! Button for instant switching by a flip

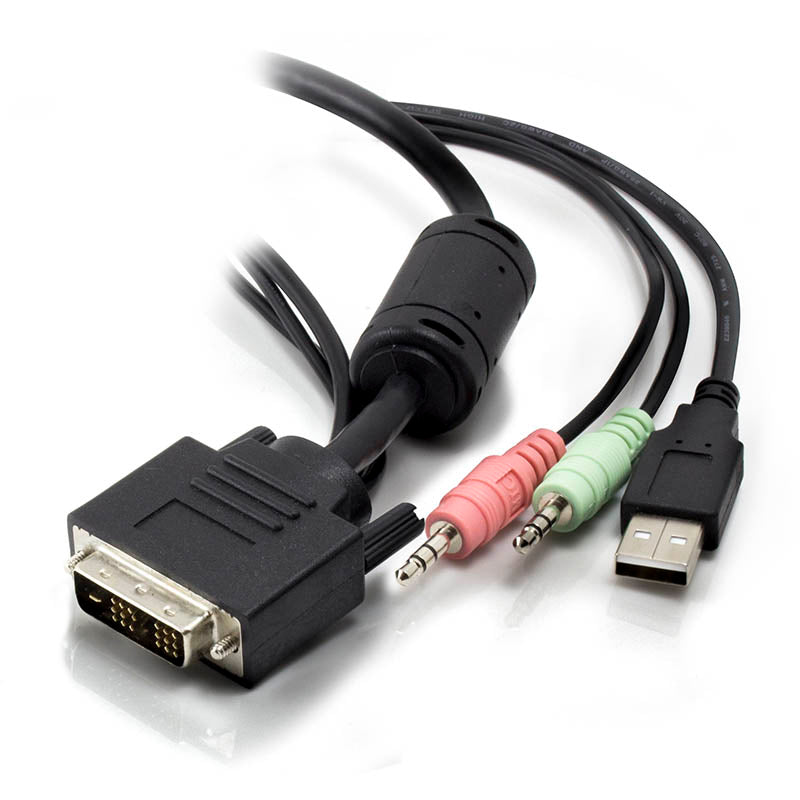

* 2 x fixed DVI USB KVM Audio/Mic combo cables
* Windows and Mac switching software support
* USB 2.0 hub ports for keyboard, mouse or other high-speed USB devices
* DVI Single Link digital video up to 1920 x 1200 (UDV-TA2)
* Independent/simultaneous switching of PC and Audio/Mic channel
* User-definable hotkeys and universal hotkey for computer switching
* Warranty : 3-years
PRODUCT SPECIFICATION
Product Description |
2-Port DVI USB Cable KVM Switch w/ Audio & Mic |
| Number of Ports | 2 |
| Number of Console | 1 |
| Console Keyboard Connector | USB 2.0 Type A Female |
| Console Mouse Connector | USB 2.0 Type A Female |
| Console Video Connector | DVI-I Female |
| Console Audio/Mic Connector | 2 x 3.5mm Audio/Mic Jack Female |
| PC Keyboard Connector | 2 x USB Type A Male |
| PC Mouse Connector | Via PC Keyboard Connector |
| PC Video Connector | 2 x DVI-D Male |
| PC Audio/Mic Connector | 4 x 3.5mm Audio/Mic Jack Male |
| PC selection | QuickSwitch Button / Hotkeys / Switching Software (Win/Mac) |
| PC port LED | 2 x Blue |
| Analog Display Resolution | 1920 X 1200 |
| Cables | 2 x 0.9m |
| Keyboard & Mouse Emulation | Yes |
| Operation Temperature | 0 ~ 40°C |
| Storage Temperature | -20 ~ 60°C |
| Humidity | 0~90% RH, Non-Condensing |
| Power type | USB Bus Powered |
| Weight | 357g |
| Dimension(L×W×H) | 87 x 59 x 25mm |
| Safety / Emission | FCC, CE |
