Serveredge 24 Port 10/100/1000Base TX, PoE, 2 x 1Gigabit SFP, Unmanaged Ethernet Switch


1 Year
Manufacturer's Warranty

The Serveredge NS-24UGP 24-Port Full Gigabit PoE with 2xSFP Unmanaged Network Switch, provides the ultimate solution for businesses and organizations seeking high-performance networking capabilities. With 24 Gigabit Ethernet ports and two SFP (Small Form-Factor Pluggable) slots, this switch offers unparalleled connectivity and flexibility to meet the demands of your growing network infrastructure.


Each of the 24 Gigabit Ethernet ports provides lightning-fast data transfer speeds of up to 1000Mbps, ensuring seamless multimedia streaming, file sharing, and data-intensive applications. Additionally, the inclusion of two SFP slots allows for the connection of fiber optic cables, enabling long-distance data transmission and expanding your network's reach.


With Power over Ethernet (PoE) support, this switch eliminates the need for separate power adapters by delivering power directly to compatible devices such as IP cameras, wireless access points, and VoIP phones. This simplifies installation, reduces cable clutter, and provides flexibility in device placement, making it an ideal choice for organizations that require reliable and convenient power delivery.


As an unmanaged switch, it offers easy setup and operation, allowing you to focus on your business without the need for extensive network configuration. Simply plug in your devices and let the switch automatically detect and optimize network connections. This user-friendly approach, combined with its robust construction and compact design, makes it an excellent choice for small to medium-sized businesses, offices, or home networks.



  • 24 Gigabit Ethernet ports for high-speed connectivity
  • PoE support for easy power delivery to compatible devices
  • 2 x SFP (Small Form-Factor Pluggable) slots
  • Unmanaged design for effortless setup and use
  • Plug-and-play functionality for seamless network integration
  • Energy-efficient operation to reduce power consumption
  • Sturdy construction and fanless design for quiet operation
  • Ideal for small, medium, and large-sized businesses, offices, or home networks


Technical Specification

Product:     Full Gigabit 24+2 PoE Switch

Port:      24*10/100/1000Base-TX PoE port (Data/Power)

               2*1000M SFP

               1-2 port support PoE+(port output HiPoE_90W max)

               3-24 port support PoE (port output HiPoE_30W max)

               Total PoE Budget 350W

Function:     N: +V: Port Isolation + C: Flow Control

                      (Specific port refers to user manual)

Network Protocol:     IEEE 802.3

                                      IEEE 802.3i 10BASE-T

                                      IEEE 802.3u 100BASE-TX

                                      IEEE 802.3ab 1000BASE-T

                                      IEEE 802.3x

                                      IEEE 802.3z 1000BASE-X

                                      IEEE 802.3af/at

Port Specification:     10/100/1000BaseT(X)Auto

Transmission Mode:     Store and Forward (full wire speed)

Bandwidth:     56Gbps

Packet Forwarding:     40.32Mpps

MAC Address:     8K

Buffer:     4.1M

Transmission Distance:     10BASE-T : Cat3,4,5 UTP (­ 250 meter)

                                              100BASE-TX : Cat5 or later UTP (150 meter)

                                              1000BASE-TX : Cat6 or later UTP (150 meter)

                                              1000Base-SX:62.5μm/50μm MMF(2m~550m)

                                              1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

Power Pin:     Default1/2(+),3/6(-); Optional 4/5(+),7/8(-)

Single port power:     Average15.4W; MAX 30W

Total Power/Input Voltage:     MAX 400W (AC100-240V 50/60HZ)

Watt:     Standby Power Consumption:­ 20W

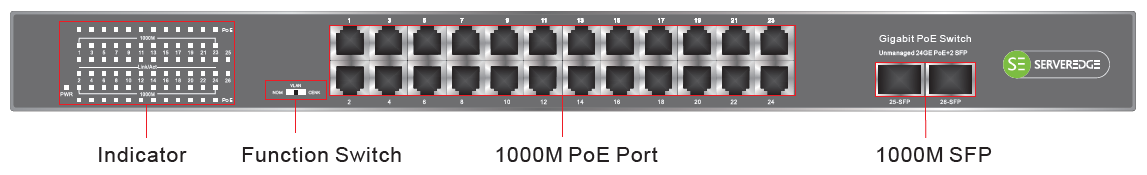

LED Indicator:     PWR: Power LED (optional over-power LED)

                              1-24:(Link LED=10/100M LED+1000M=Gigabit LED)

                              25 26:(SFP LED)

Power:     Built-in power AC:100~240V 50-60Hz 1A

Operating Temperature/Humidity:     -10~+55°C;5%~90% RH Non coagulation

Storage Temperature/Humidity:     -40~+75°C;5%~95% RH Non coagulation

Product Dimensions (L*W*H):     440mm*290mm*45mm

Packing Dimensions (L*W*H):     515mm*375mm*95mm

N.W / G.W (kg):     3.3kg / 4kg

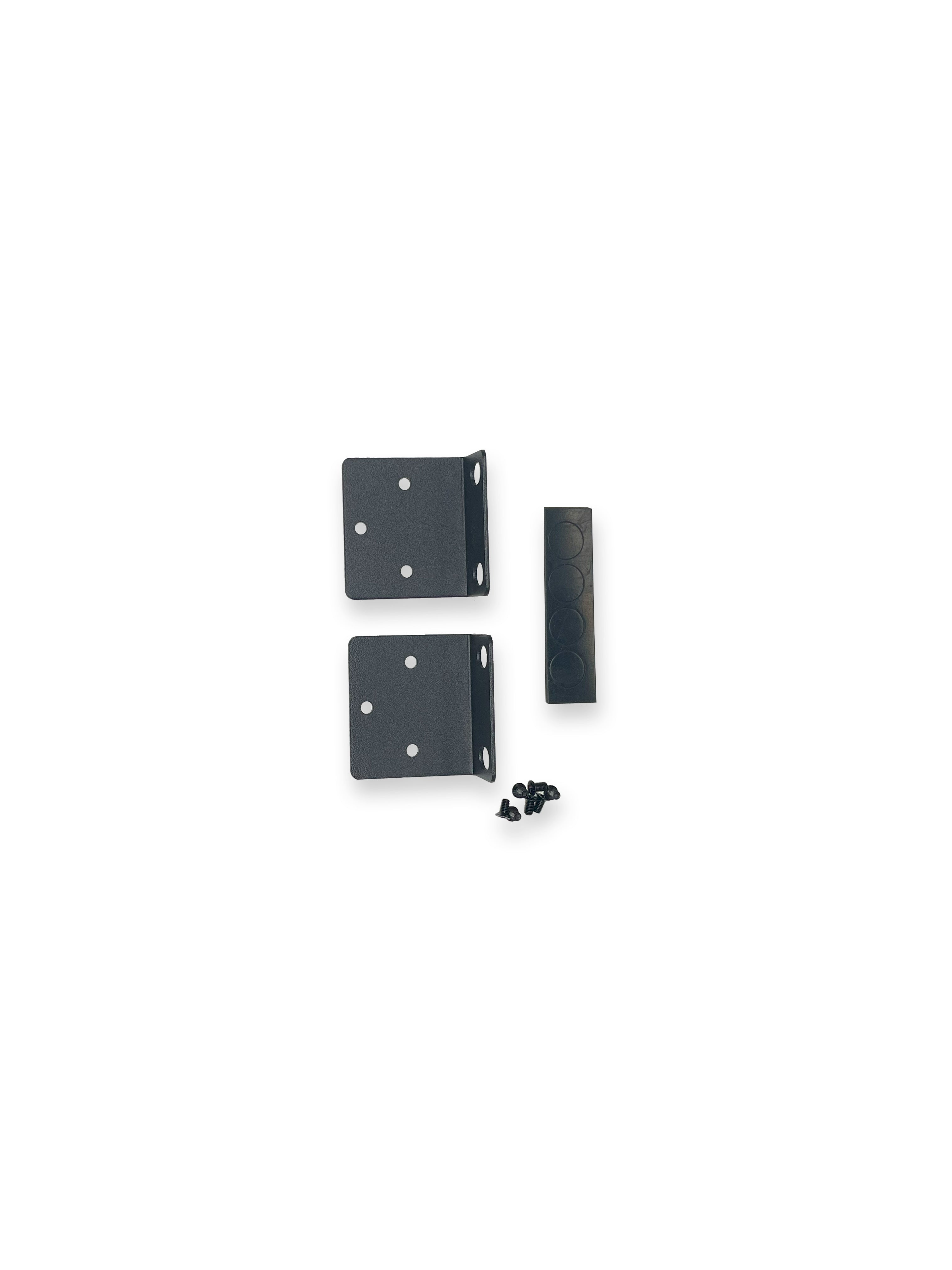

Installation:     Rack-mount (machine hangers accessorised)

Lightning protection level:     3KV 8/20us; IP30

Certificate:     CE mark, commercial; CE/LVD EN60950;

                         FCC Part 15 Class B; RoHS;
