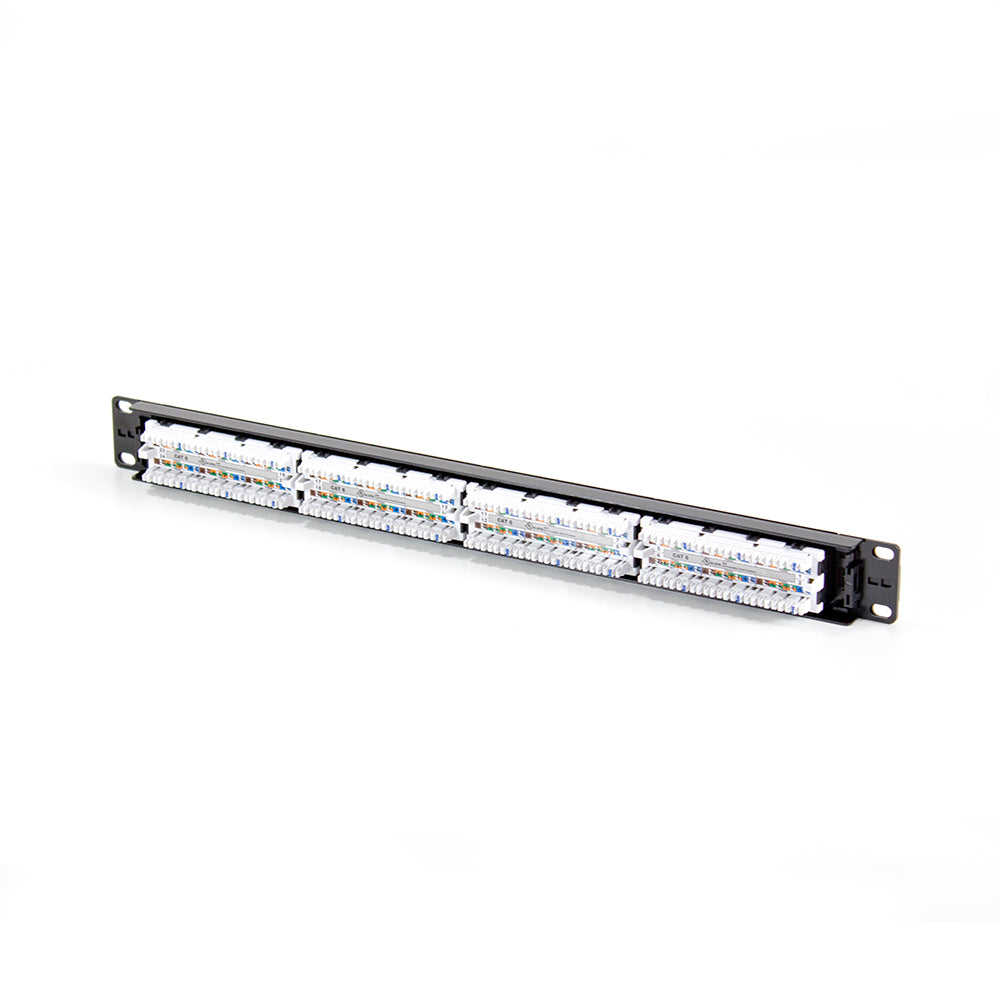

SERVEREDGE CAT6 Patch Panels are designed to maximise your network performance and keep your infrastructure ready for future upgrades. They are rated up to 1Gbps and meet or exceed the ANSI/TIA-568-C.2 Category 6, ISO/IEC118 1 and EN5 173-1 specification. The space saving design of these patch panels means that they will fit into the standard 19" cabinet and take up 1U or 2U depending on the model. With the built in cable management and write-on labels, organising your cabinet will no longer be a chore. A clear wiring guide on the reverse side of the patch panel will make sure you never second guess if you punched down the patch panel correctly. All SERVEREDGE patch panels are UL Listed.
PRODUCT FEATURE
• Meets or exceeds ISO/IEC 11801, TIA/EIA-568-B.2-1 Standards
• Contacts 50u Gold plated
• UL 1863 Safety Listed
• Printed label for port identification
• Jack Type RJ45 8P8C Cat6 UTP
• IDC Wire Gauges 22 – 24 AWG
• Replacable 6 Port Modules
• Hinged/snapped style windows
• Krone and 110 punch down tool compatible
• Warranty: 2 Years Standalone or 25 years as part of a certified structured cabling project. Subject to Serveredge T&C*
PRODUCT SPECIFICATION
Ports: 24
RU: 1
Contacts: 50u Gold plates
Wiring standards: T568A & T568B
Standards: Permanent Link & Channel ANSI/TIA-568-C.2, IEC60603-7-2 2nd Edition
ISO/IEC11801 2.2 Edition, CENELEC EN 50173-1:2011
Network Media: CAT 6
Compatibility: Compatible with 22-26 AWG solid & stranded cables
Mounting point retention strength: 7.9kg
Temperature: -10° ~ 60°C (14°F ~ 140°F)
Certifications: CE, FCC
PACKAGE INCLUDES

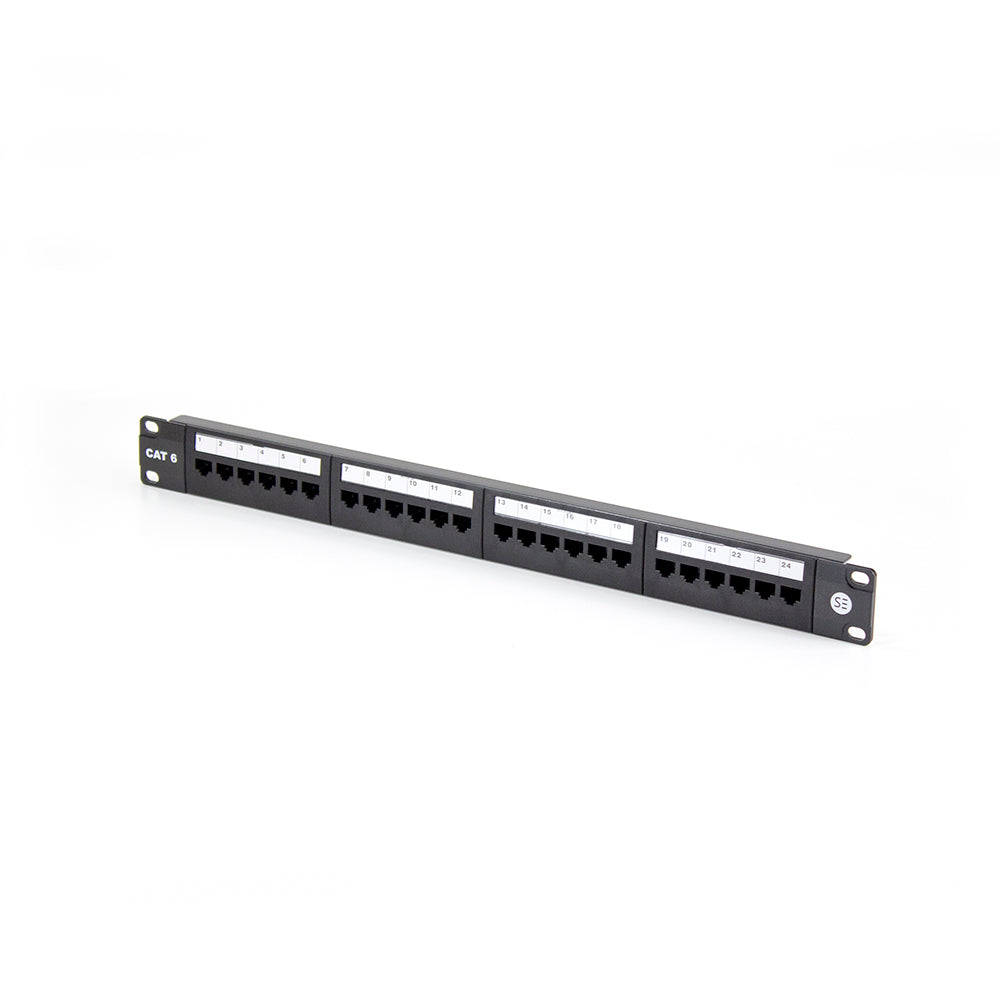

(1) Serveredge 24 Port CAT6 Patch Panel - 1RU, UTP

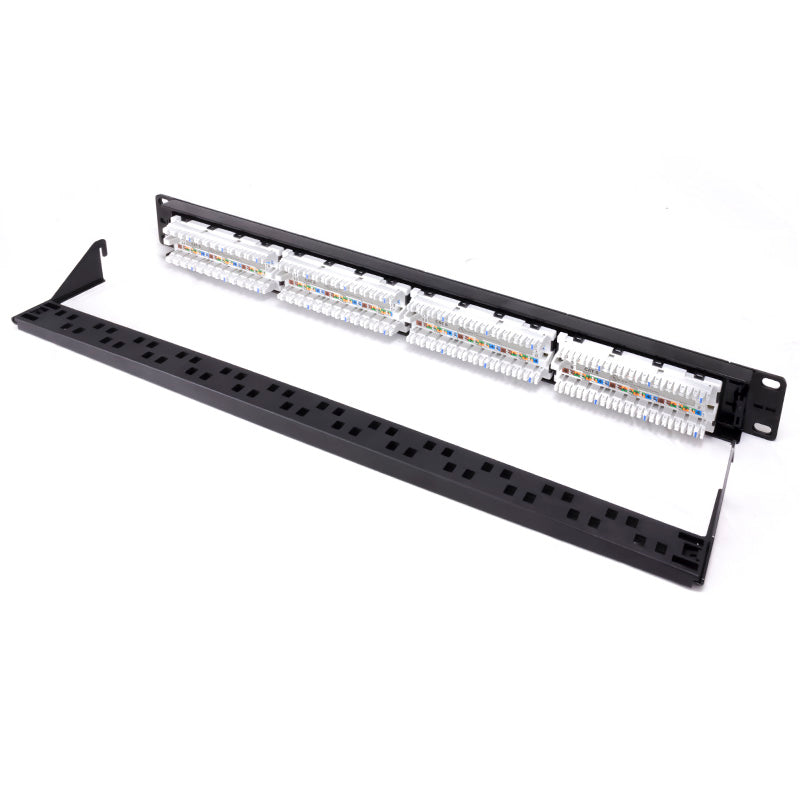

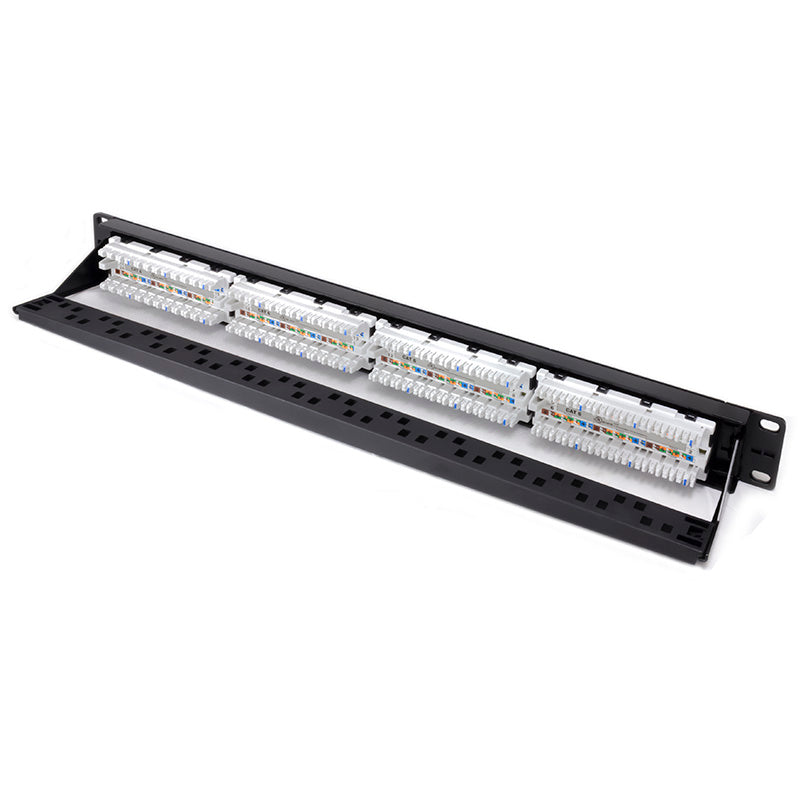

(1) Mounting bracket
(24) Nylon cable ties
(1) Screw pack containing 4x screws & 4x M6 cage nuts
(1) Instructions
WARRANTY
Serveredge products are manufactured at the highest standards using highest quality materials at an affordable price. This Serveredge product comes with a 2 years warranty standalone or a 25 years warranty as part of a certified structured cabling project. Subject to Serveredge Terms and Conditions*
