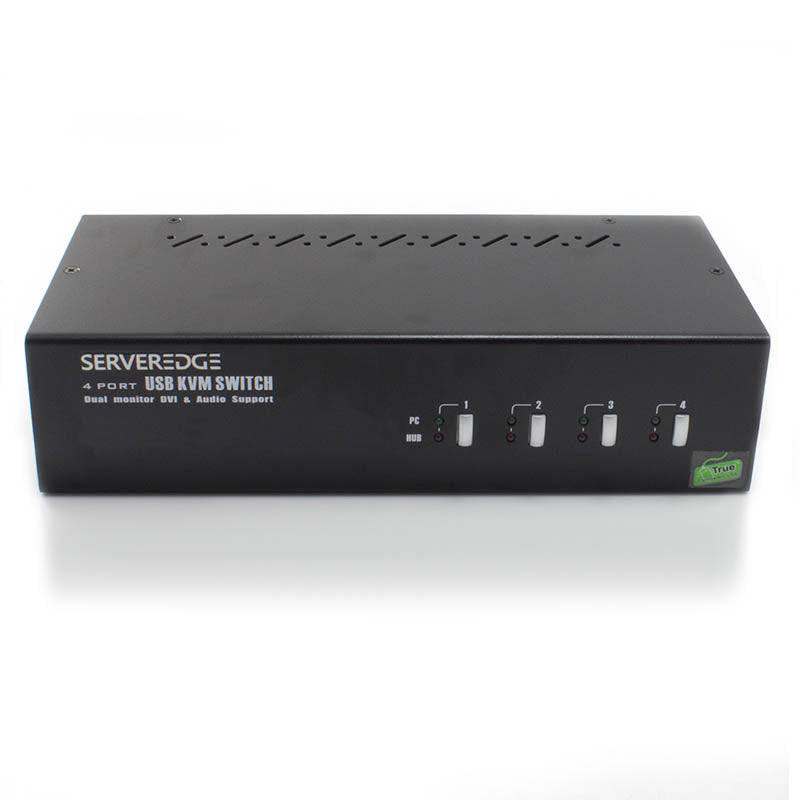

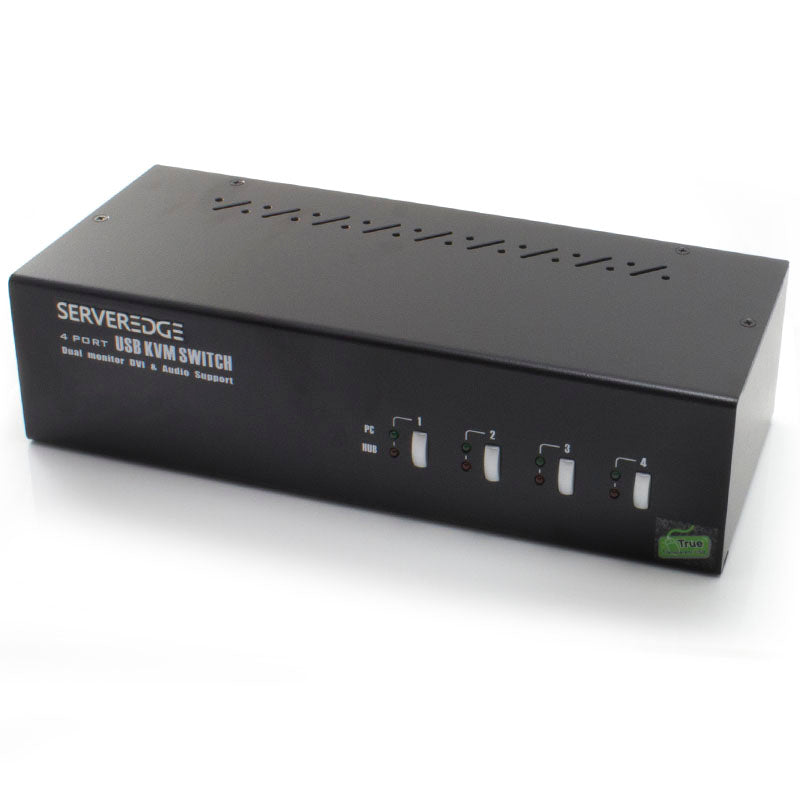

Serveredge 4-Port Dual Monitors DVI USB KVM Switch with Audio & Mic is TMDS-compliant and designed specifically for sharing two large-sized DVI monitors/Flat Panel Displays between four multimedia computers with Dual Head display [2 x DVI]. With SEDDMDL704A, you can fully control two Dual Head PCs using only one keyboard, mouse and Dual DVI monitors/Flat Panel Displays.
PRODUCT FEATURE
* 4-Port Dual Monitors DVI USB KVM Switch with Audio & Mic
* Support large-sized Dual DVI Monitor/Flat Panel Display [2 x DVI]
* 2 x USB 2.0 hub ports + 1 x USB device port for advanced wireless/Bluetooth keyboard/mouse set
* User-configurable simultaneous/independent switching of audio / hub / PC ports
* DVI-I Dual Link interface technology supports digital and analog video signal transmission
* TMDS specifications compliant
* True Transparent USB (TTU) Emulation technology with an integrated ASIC
* HDCP specifications compliant
* Resolution support up to 2048 x 1536 (analog) / 2560 x 1600 (digital)
* Full driver support for all types of USB keyboard and mouse
* Channel selection by push buttons and keyboard hotkeys
* Support for DOS, Windows 95/98/SE/ME/2000/XP/Vista, Linux, MacOS, etc.
* Status LED display for easy port status monitoring
* Buzzer sound for port switching confirmation
* Metal enclosure for best shielding and protection
* Warranty : 3-years

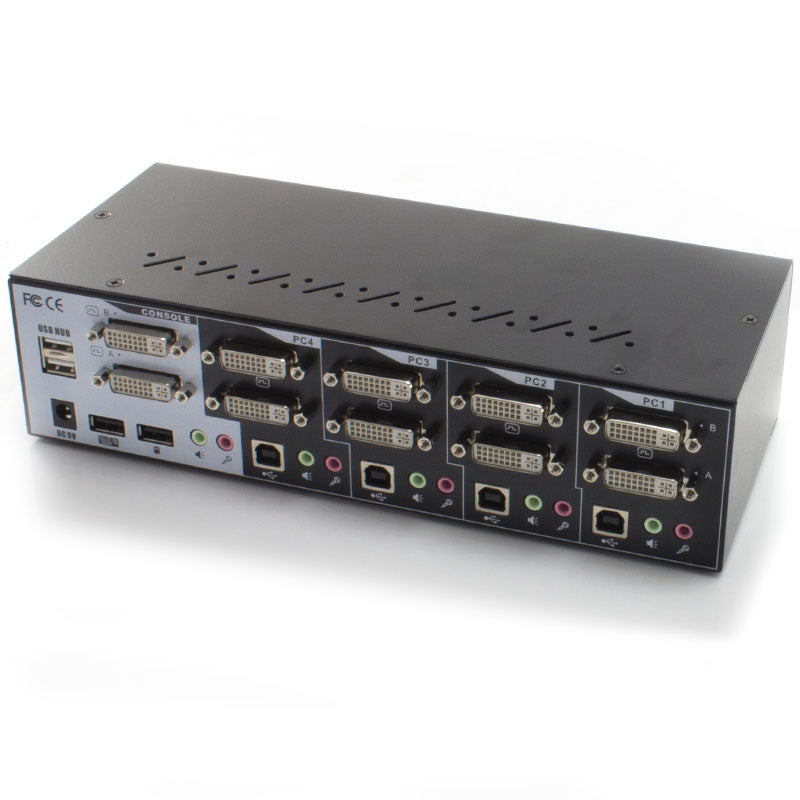

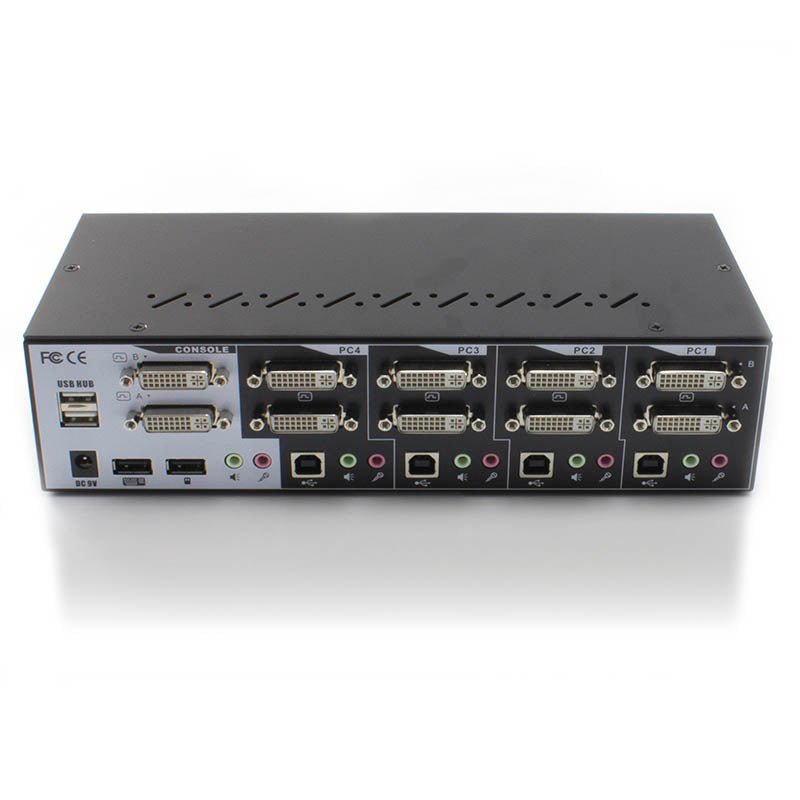

PRODUCT SPECIFICATION
Product Description |
4-Port Dual Monitors DVI USB KVM Switch with Audio & Mic |
| Number of Ports | 4 |
| Number of Console | 1 |
| Console Keyboard Connector | USB 2.0 Type A Female |
| Console Mouse Connector | USB 2.0 Type A Female |
| Console Video Connector | 2 x DVI Female |
| Console Audio/Mic Connector | 6 x 3.5mm Audio/Mic Jack Female |
| Console USB Hub Ports | 3 x USB 2.0 Type A Female |
| PC Keyboard Connector | 4 x USB Type B Female (per PC) |
| PC Mouse Connector | Via PC Keyboard Connector |
| PC Video Connector | 8 x DVI Female |
| PC Audio/Mic Connector | 8 x 3.5mm Audio/Mic Jack Female |
| PC selection | Push Button / Hotkeys |
| PC port LED | 4 (Green) |
| Hub port LED | 4 (Red) |
| Analog Display Resolution | 2048 x 1536 |
| Digital Display Resolution | 2560 x 1600 |
| Keyboard & Mouse Emulation | Yes (TTU) |
| Auto Scan Delay Time | 5~100 sec |
| Operation Temperature | 0 ~ 40°C |
| Storage Temperature | 20 ~ 60°C |
| Humidity | 0~90% RH, Non-Condensing |
| Power Type | 2.1mm Power Jack |
| Power Adapter | DC 9V/2A |
| Weight | 1.8Kg |
| Dimension(L×W×H) | 323 x 100 x 88mm |
| Safety / Emission | FCC, CE |
