Serveredge 4 Port DVI Video Splitter

SKU: DVIS04

The Serveredge 4 Port DVI Video Splitter is an easy and affordable solution for duplicating one video input into multiple DVI outputs.
2 Years
Manufacturer's Warranty



The Serveredge 4 Port DVI Video Splitter is an easy and affordable solution for duplicating one video input into multiple DVI outputs. It supports up to UXGA (1600 X 1200), WUXGA (1920 X 1200) and FULL HD 1080p (1920 X 1080).



PRODUCT FEATURE




* Easy and affordable way to duplicate one video input to multiple DVI outputs
* Automatic power-save when signal input is lost
* Cascaded operation for increased signal outputs
* Crisp clear video images
* Support EDID, HDCP, and is Blu-ray ready for high definition display
* Support DVI / HDMI display resolutions of up to UXGA (1600 x 1200), WUXGA (1920 x 1200), Full HD 1080p (1920 x 1080)
* Support audio function for HDMI / Audio over DVI source devices
* Rack mountable ( compatible for 4-Port only )
* LED indicators for signal activity monitoring
* Accurate and reliable reproduction of digital video signals without attenuation and distortion
* Installs in seconds



PRODUCT SPECIFICATION




Number of Video Outputs 4
Video Resolution (max.) / Signal Type

Full HD 1080p (1920 x 1080) / VGA (640 x 480)
/ SXGA (1280 x 1024) / UXGA (1600 x 1200) /
WUXGA (1920 x 1200)

LED Indicators Power active Video OK Dual color x 1
LED Indicators Video outputs 4
Rack Mountable (optional) N/A
Cable Length (max.) 10M (depends on cable quality)

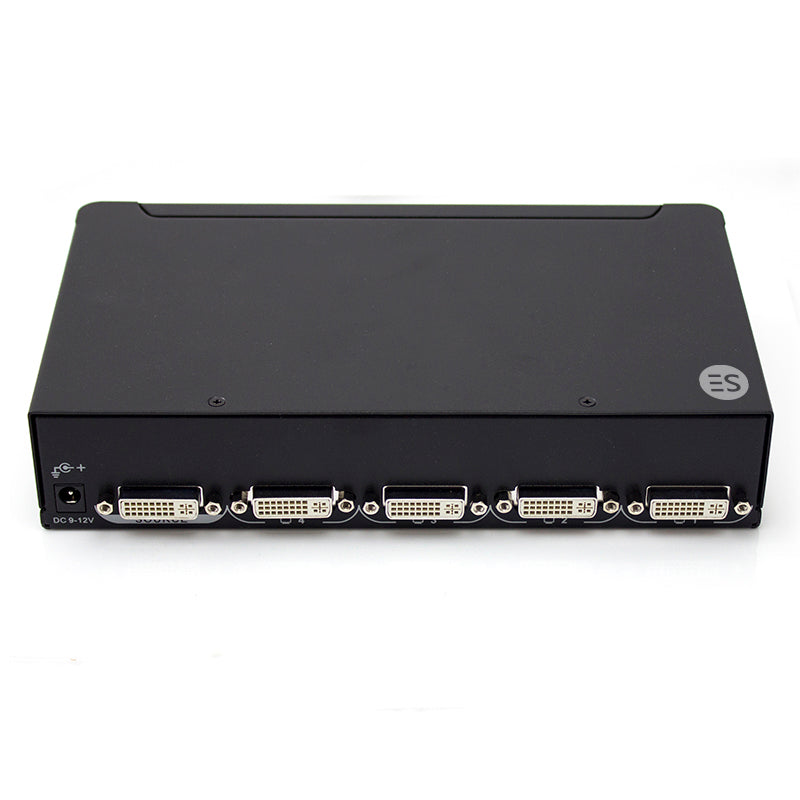

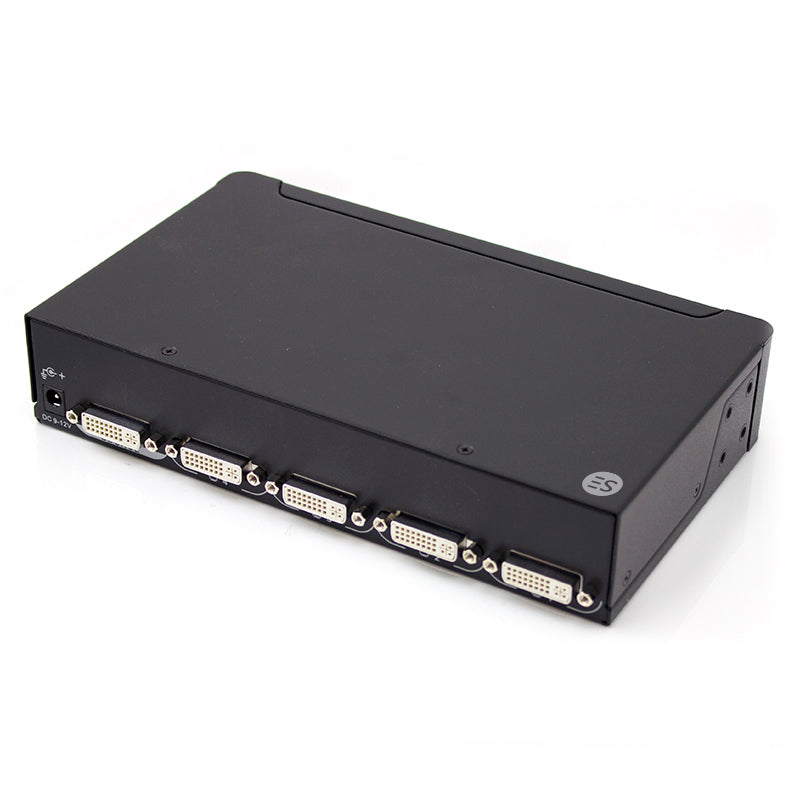

Connectors Input DVI Female X 1
Connectors Output

DVI Female X 4

Enclosure Metal
Power Consumption (Max.) 4.0W
4.1W
Operating Voltage DC 9~12V
Dimensions H X W X D (mm) 44 x 220 x 135

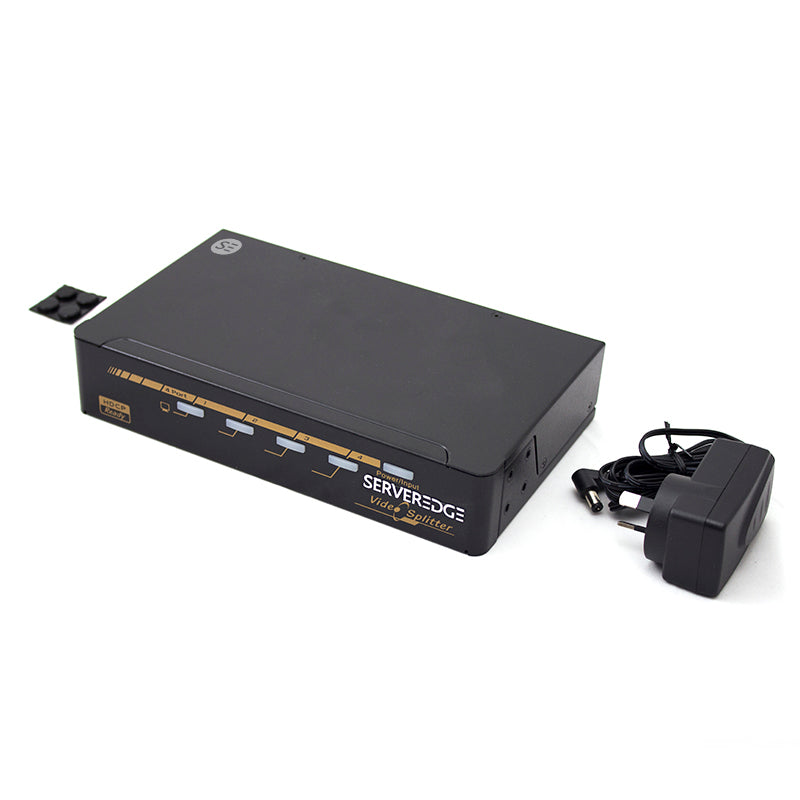

PACKAGING INCLUDES



DVI Video Splitter 1
Power Adapter Set (option: Power Adapter with necessary AC Cord/Plug-in Power Adapter) 1 Set/Pc
User's Manual 1
Foot Pad Set 1
