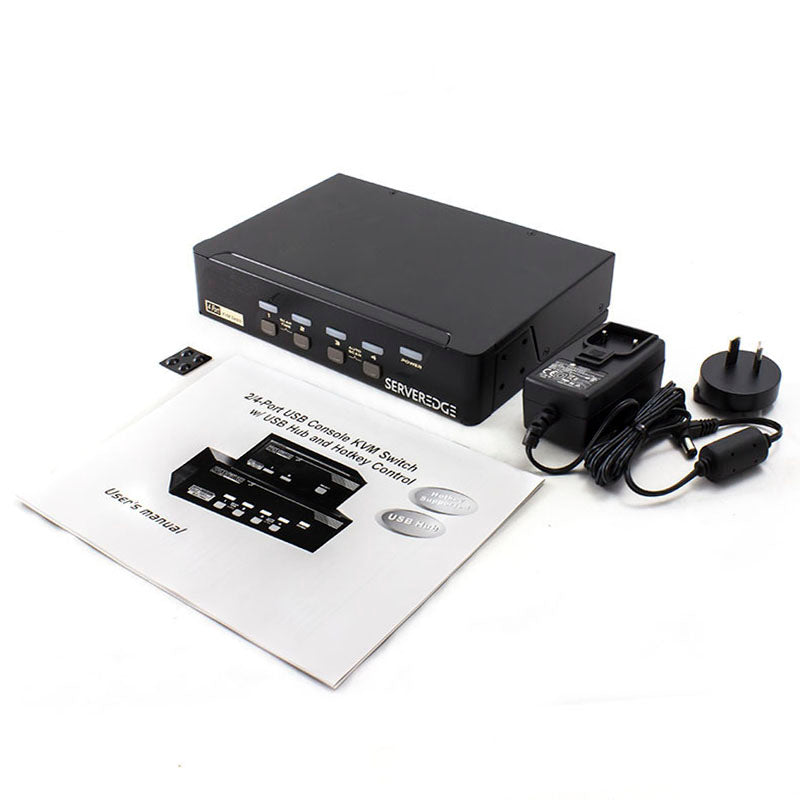

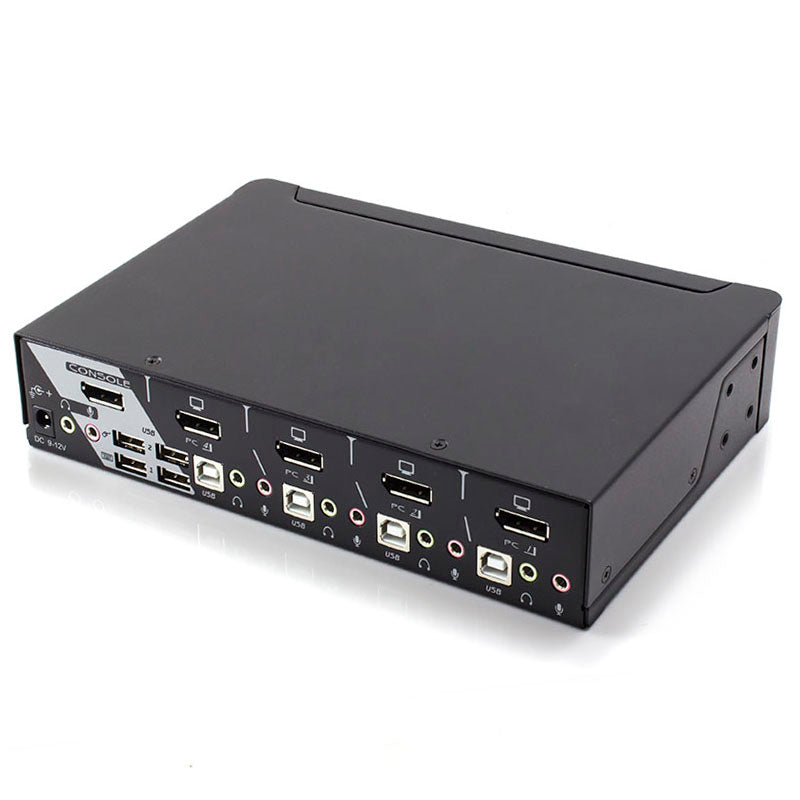

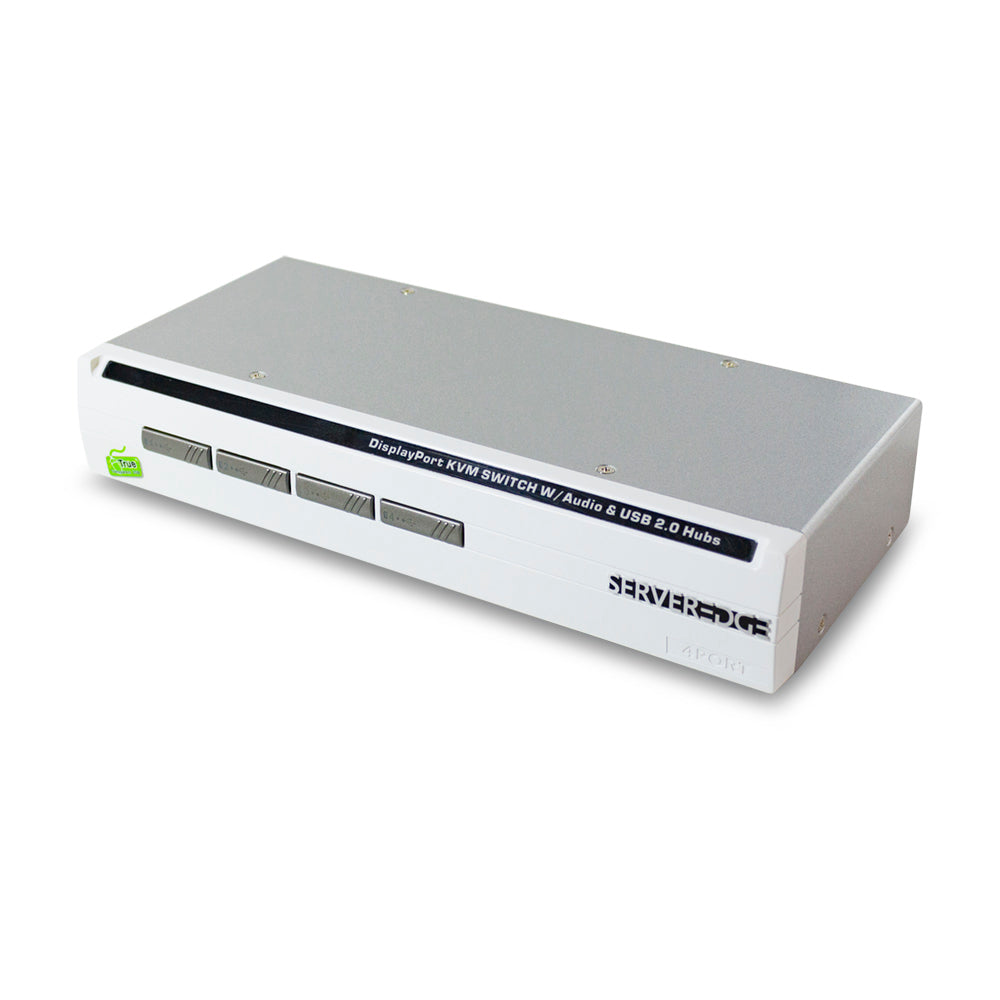

The Serveredge 4-Port USB / DisplayPort Desktop KVM Switch With Audio & USB Hub 2. (includes cables)
PRODUCT FEATURE
* Support USB console
* 4 computers share 4 different USB peripherals ( KB + MS + USB 2. Devices)
* Support Audio (Speaker + Mic) function
* Supports hot plug and un-plug detection and link status-failure detection
* Unique Tracking System enable the USB devices to operate independently
* Front panel push buttons for easy computer selection
* Selectable Scan Time interval
* Buzzer sound for computer switching confirmation
* Hotkey functions allow easily computer access
* Supports keyboard and mouse plug-n-play
* Supports existing VESA and Consumer Electronics Association (CEA) standards
* Screw-free design ,streamlined form factor for new all digital desktop monitors
* All digital Direct Drive monitors connected with DisplayPort require no adjustment
* Complete interoperability
* Supports 7.1 Channel High Definition Audio
* No drivers needed; No software required
* Support Windows and Mac host systems
* Warranty : 1 Year
PRODUCT SPECIFICATION
* Console Port : 1
* Computer Port : 4
* Front Panel Push Button : 5
* Automatic Scan Interval : 3, 8, 15, 30 Seconds
* Cable Length (Max) : 3M (10ft) for USB
* Computer ON-LINE LED : 4
* Computer Selected LED : 4
* Hot Plug-and-Play : Yes
* Console Interface :
- USB Port : 4 (KB+MS+Extra USB 2.0)
- KB : USB
- MS : USB
- Monitor : DisplayPort
- Audio Jack (Speaker+Mic) : 1 Set
* Computer Interface :
- KB : USB
- MS : USB
- Monitor : DisplayPort
- Audio Jack (Speaker+Mic) : 1 Set
* Hotkey : Yes
* OSD : No
* Resolution : 2560 x 1600
* DDC2B : Yes
* H x W x D (mm) : 44 x 220 x 130
