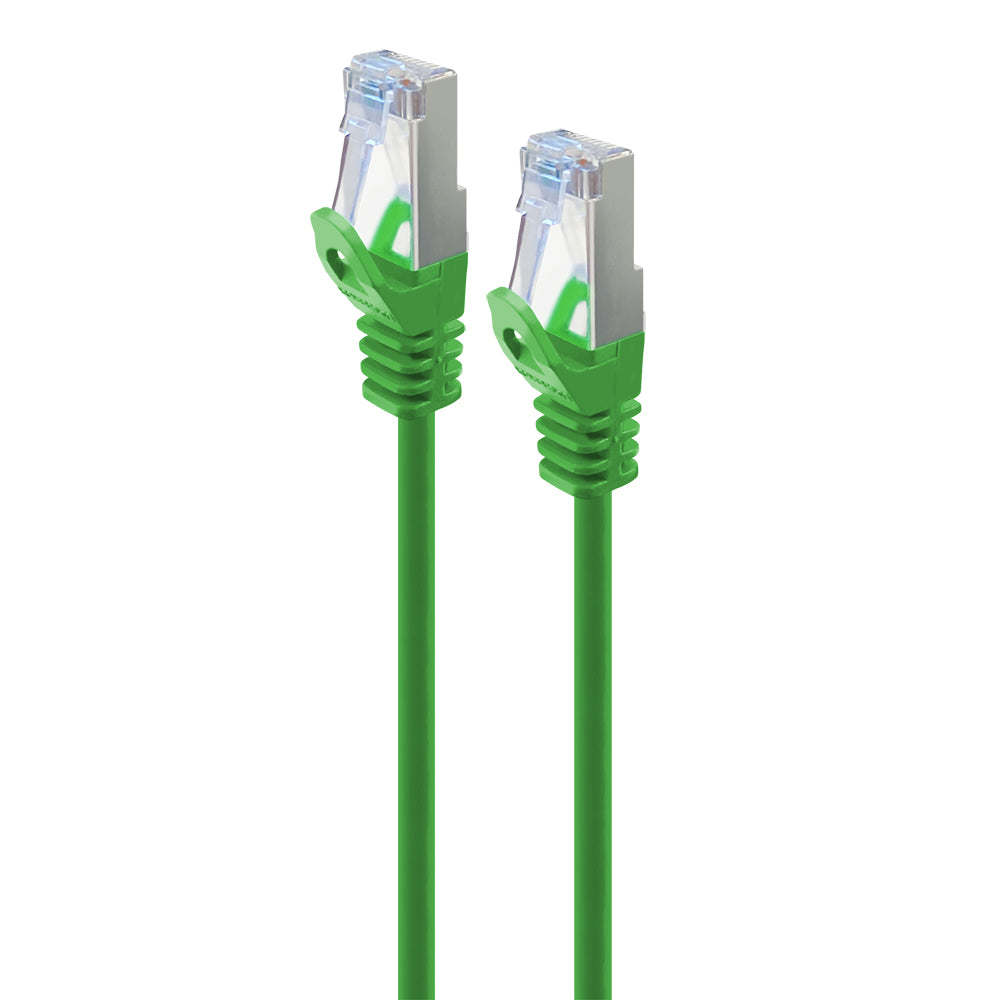

Serveredge 5m Green CAT6A Slim S/FTP Network Cable

SKU: C6AS-05-GN-SHF

Lifetime
Manufacturer's Warranty


Serveredge Slim Cat6A Shielded Cables are constructed of 30 AWG, shielded and foiled, twisted pair cable with LSZH jacket and high performance RJ45 modular plugs. The smaller cable diameter allows twice the amount of cable to be routed through cable managers and pathways compared to traditional Cat6A patch cables. This saves valuable space in a high density environment and at the same time improved air flow and cooling. Serveredge CAT6A shielded cables are constructed to provide superior strength and durability in the toughest environment. All the cables are individually tested ensuring optimum performance. Fully Moulded Snagless boot allows for a clean, tangle free and time saving installation.



PRODUCT FEATURE


* Suit for up to 10G LANS, include 10GBASE-T Ethernet, 1000BASE-TX Fast Ethernet and Lower

* Each twisted pair in the cable is individually wrapped in aluminium foil

* Overall Copper Braided Shielded

* Comes with LSZH (Low Smoke Zero Halogen) Jacket

* Category 6A SFTP cable wired straight through. 30 AWG, gold plated 8x8 (RJ45) plugs

* Snag-free strain relief molded boot provides secure and accurate connection

* Suppresses ANEXT (Alien Near End Cross Talk) and delivers superior 10GbE performance up to 100mt

* A-Tick Compliant as per ACMA requirement

* ETL verified to TIA/EIA-568C.2.1 Category 6a

* Compliant to IEC 802.3an standards & ISO/IEC 11801




PRODUCT SPECIFICATION


* Wiring Scheme: T568A

* Standard: Category 6a TIA/EIA 568C-2.1

* Connector: 50 micron gold-plated RJ45

* Temperature Rating: 75°C

* Voltage Rating: 30V

* Package Type: Polybag

* Jacket: LSZH (Low Smoke Zero Halogen)

* Connector Type: 8P8C (RJ45)

* Conductor Type: 30AWG Stranded Bare Copper




AVAILABLE LENGTHS

Part No.
Length
C6AS-0.3-GN-SHF 0.3m
C6AS-0.5-GN-SHF 0.5m
C6AS-01-GN-SHF 1m
C6AS-1.5-GN-SHF 1.5m
C6AS-02-GN-SHF 2m
C6AS-03-GN-SHF 3m
C6AS-05-GN-SHF 5m
