Serveredge Thermostat Fan Controller

The Serveredge thermostat control unit is design to thermostatically control any rack mount or roof mount fan unit. With integrated intelligent control that provides adjustable upper and lower set point temperature settings and front panel display, allows complete temperature customisation for optimal equipment operation. The thermostat control unit comes with a 2mtr temperature probe lead and mounting hardware that allows flexible solutions dependant on the required installation.


PRODUCT FEATURE

* Thermostat control of any rack mount fan unit

* Front panel display

* Front panel push button control

* 3 Pin Aus Plug Input

* IEC C14 for fan unit connection

* 2 Mtr temperature probe lead

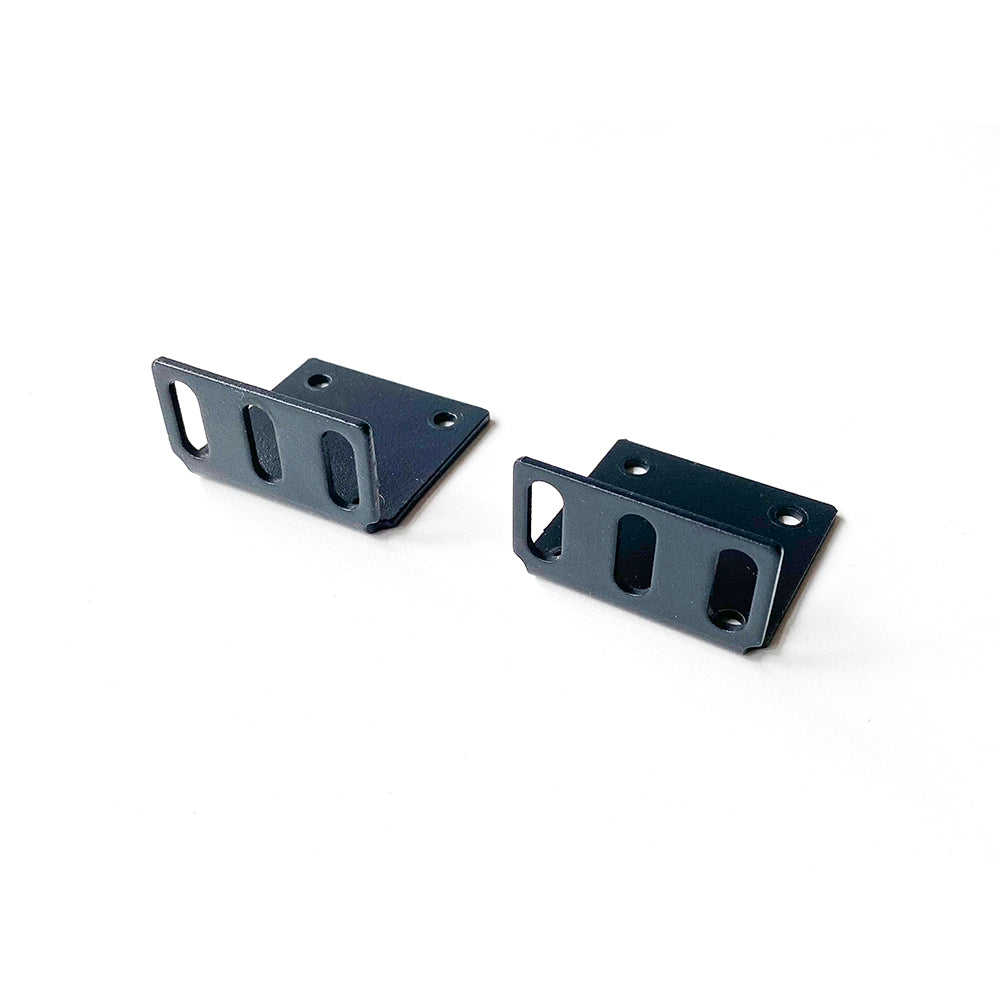

* Rack Hardware for a flexible installation

PRODUCT SPECIFICATION

Power supply:230VAC 50/60Hz

Temperature sensor: NTC, 2 meters

Range of temperature displayed: -45℃~99℃; Accuracy: ± 1℃

Range of set temperature: -45℃~99℃; Factory default: 16℃

Temperature of the operating environment: 10℃~60℃

Relative Humidity: 20%~90%

Unit Dimensions: 130mm (W) x 128mm (D) x 44mm (H)

Unit Weight: 850g

Material: Steel

Colour: Black
