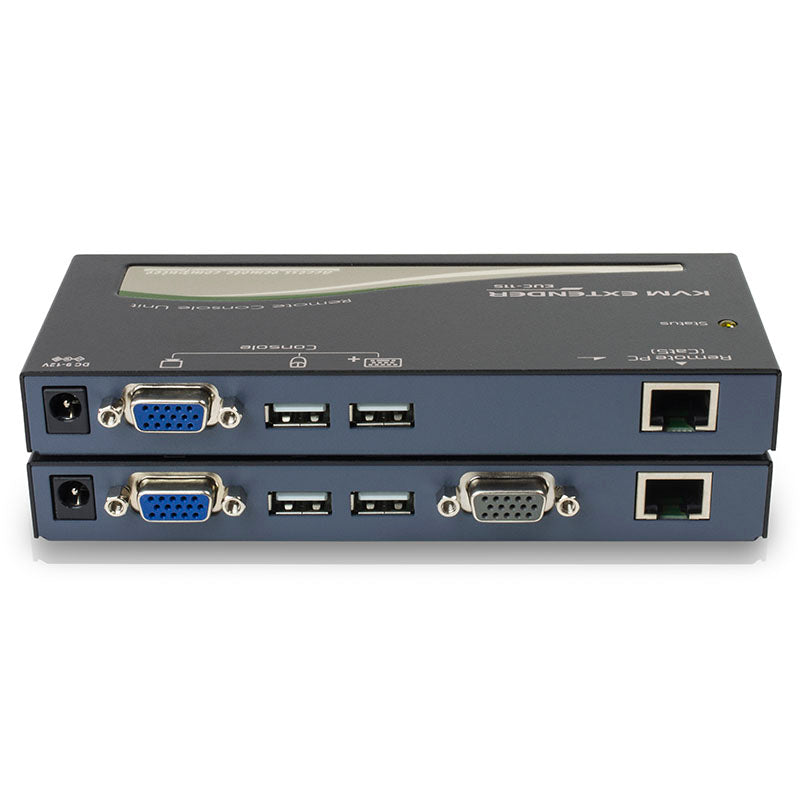

The Serveredge USB KVM Extender consists of a Computer Unit and a Station Unit that enables you to locate a keyboard/monitor/mouse setup up to 150 meters away from a computer or KVM switch using an inexpensive Category 5 UTP (unshielded twisted pair) cable. This provides a convenient way to remotely access a computer located in a secure or not easily accessible environment.
The KVM Extender is designed to enable one computer to be controlled by one or two users. A single console can control two computers locally and remotely. This is the ideal solution for factories, construction sites etc, where computers in protected environments need to be accessed.
With a variety of models to choose from, you can economically increase flexibility and meet your needs for USB-Ready and PS/2 systems. No software or dip switches are required, just plug and play. With one push button, two LED indicators and simple hotkey commands, you can manage this device with ease.
PRODUCT FEATURE
* Supports USB keyboard and USB mouse
* Connects the Computer Unit and Station Unit via Category 5 UTP cable
* Remotely locates the keyboard, mouse and monitor up to 150m from a computer
* Supports USB console
* Supports both PS/2 and USB PC or Server
* Video compensation can be adjusted by hotkey to ensure the optimum signal quality
* Synchronizes the video resolution between the attached computers via hotkeys
* Easy to get and install the standard cable at lower cost
* Simple indication makes operation user-friendly
* Locates the computer away from your desk and work area, saving you valuable space
* Allows two users to share a single computer in both local and remote areas
* Applicable for one console to manage two computers locally and remotely
* Beeps confirmation for key control makes the operation easier and cross-checked
* Supports most of mice such as M/S IntelliMouse (Pro), Explorer, Optical, etc
* Compatible with XGA, VGA, and SVGA system
* Warranty : 3-Year
PRODUCT SPECIFICATION
(Console Unit) |
(Computer Unit) |
|
Unit Connection | RJ45 x 1 | |
Keyboard / Mouse | USB-A x 2 |
USB-A x 2 |
Video |
VGA Female x 1 (Connect to monitor) |
VGA Female x 2 (Connect to computer) |
Push Button | n/a | Control Status Selection |
Hotkey Control | Yes | |
Video Resolution | 1280 x 1024 @ 150m | |
Power Consumption (Max.) | 9V DC, 500mA | |
H x W x D (mm) | 20 x 156 x 65 (per unit) |
