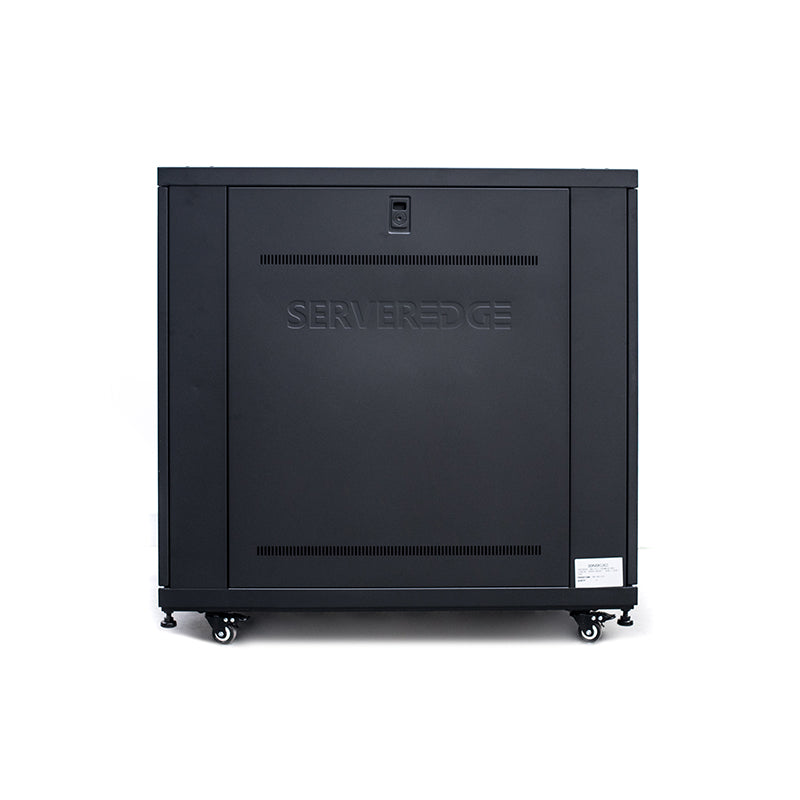

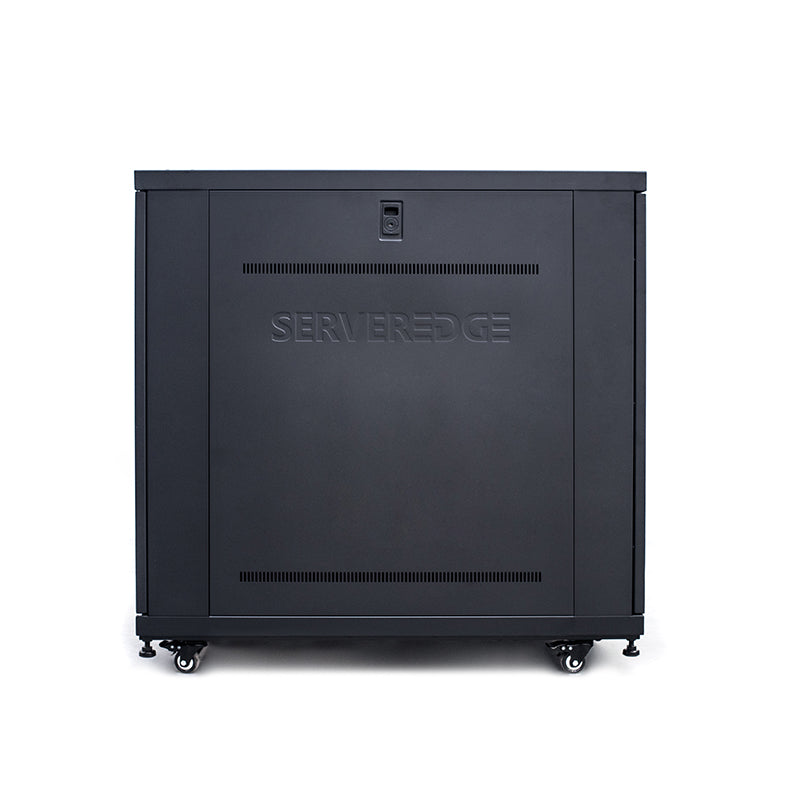

Serveredge18RU 600mm Wide & 1000mm Deep Fully Assembled Free Standing Server Cabinet


25 Years
Manufacturer’s Warranty

Serveredge CBN-18RU-61FS fully assembled server rack are a perfect solution for securely storing your standard 19" rack mount equipment. This free-standing rack has been especially designed for use with Servers, Switches, AV Equipment, Security Systems, Telephone Systems, Patch Panels and other Networking Equipment. This Serveredge rack is packed with features designed to simplify rack equipment installations and maintenance.



* Designed for IT, Audio Visual, Security and Data equipment

* 1000kg of stationary load capacity

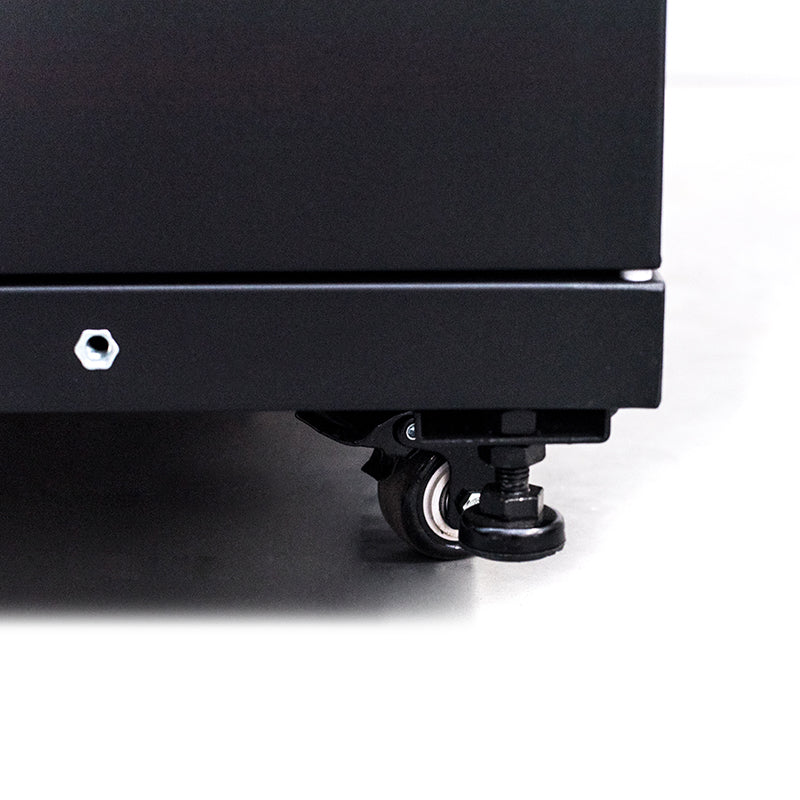

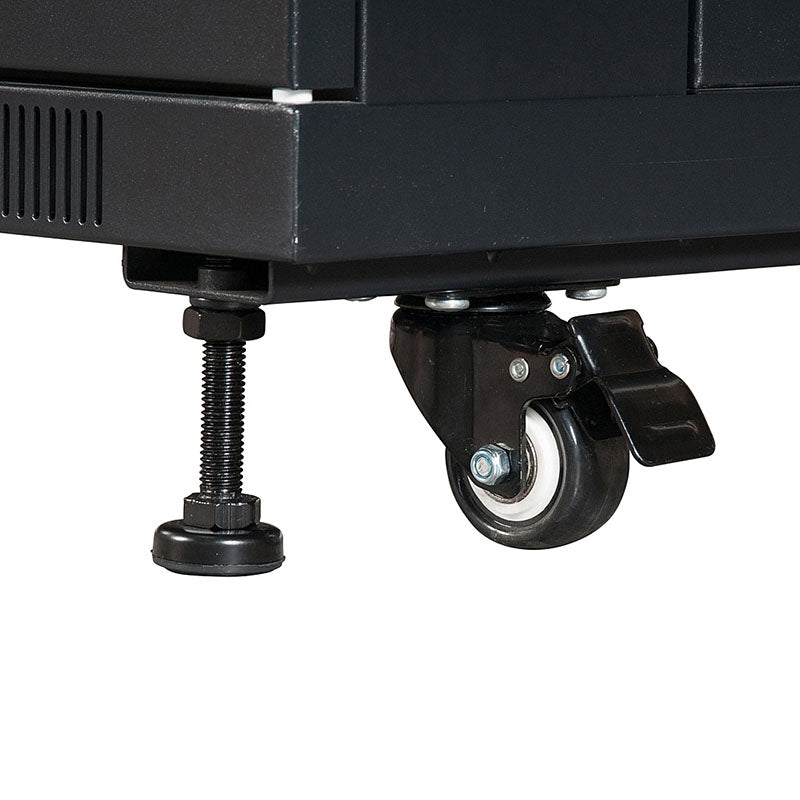

* Pre-installed lockable castors* Levelling feet extend to allow enclosure to be positioned on uneven floors and are removable when not required

* Convenient grounding system with grounding lugs on doors and side panels

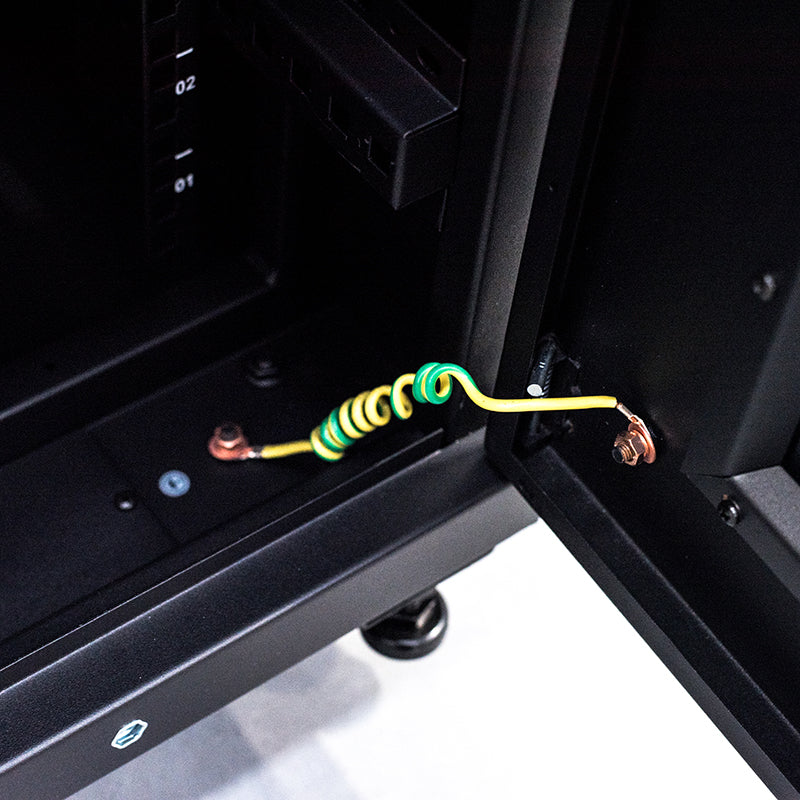

* Earth straps on front and rear doors

* Built in baying tabs allow enclosures to be combined securely in rows (*Baying kit needs to be purchased separately)

* Includes (2) fixed shelves with 655mm depth

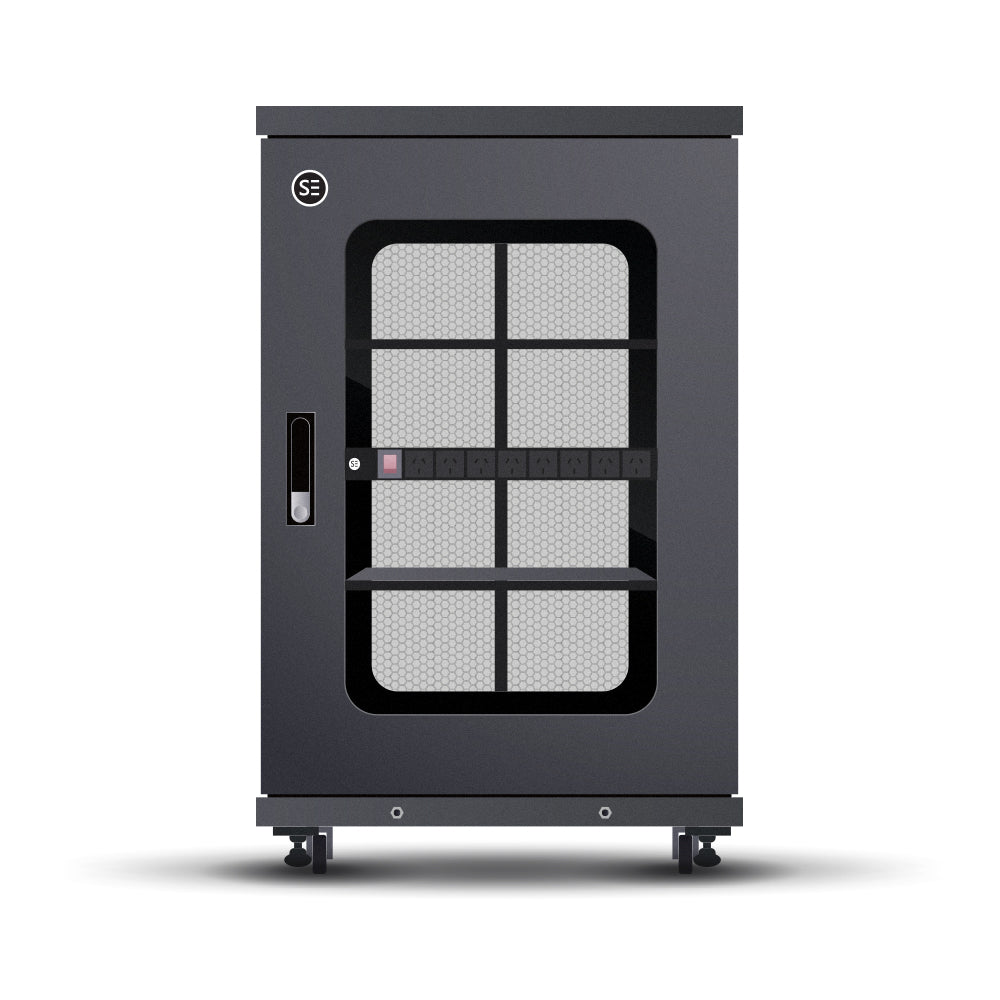

* Locking front glass door and rear split perforated mesh door

* Locking and removable side panels for easy access

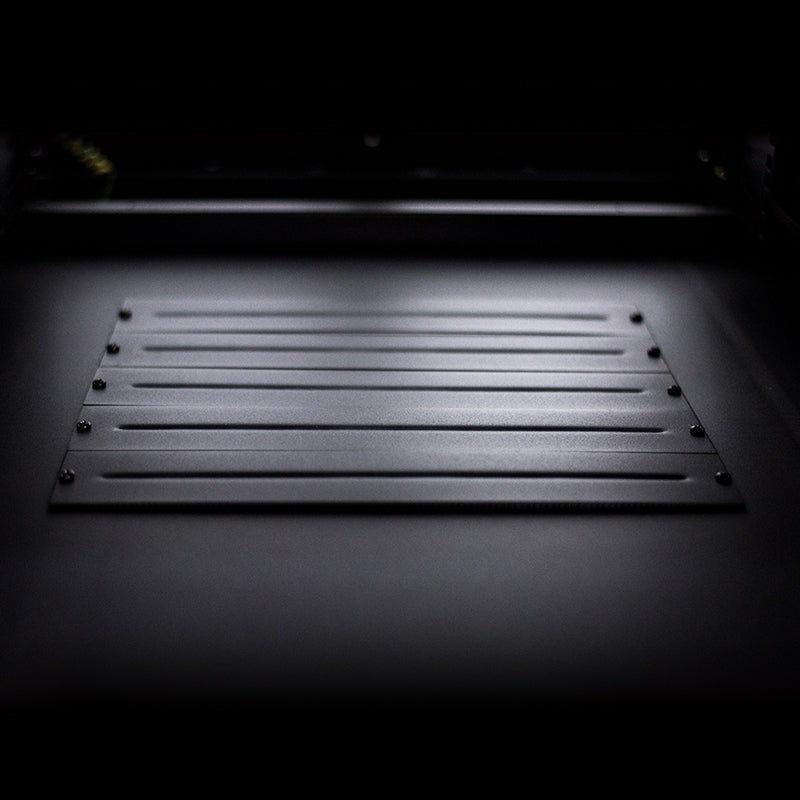

* Nylon Bush lined cable entry glands at top and bottom to protect cables from wear and tear

* Conforms to Standard ANSI/EIA RS-31 -D, IEC297-2, DIN4191;PART1, DIN 4194;PAT7, GB/T3 47M 2-92*


* Rack Height: 18RU

* Unit Dimensions: 600mm (W) x 1000mm (D) x 986mm (H)

* Unit Weight: 71kg

* Shipping Dimensions: 660mm (W) x 1060mm (D) x 1010mm (H)

* Shipping Weight: 73kg

* Colour: Black

* Weight Capacity - Stationary: 1000kg

* Grounding lug: Front and Back Door Frames

* Fixed Shelves Depth: 655mm

* Preset Mounting Distance (front to rear mounting rails): 670mm

* Maximum Mounting Distance (front to rear mounting rails): 950mm

* Minimum Mounting Distance (front to rear mounting rails): 145mm



(1) Free Standing Server Rack

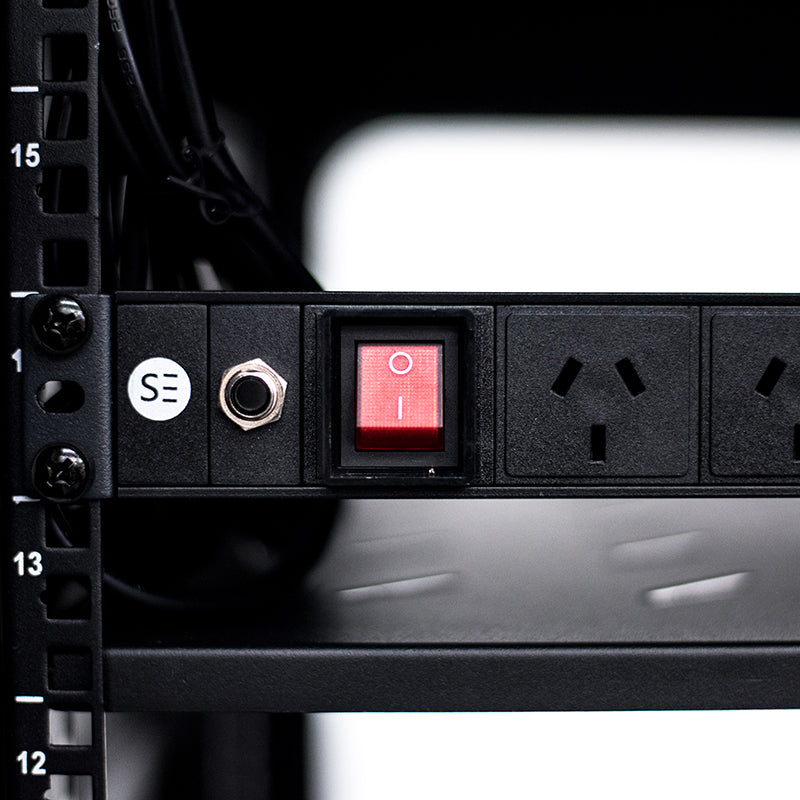

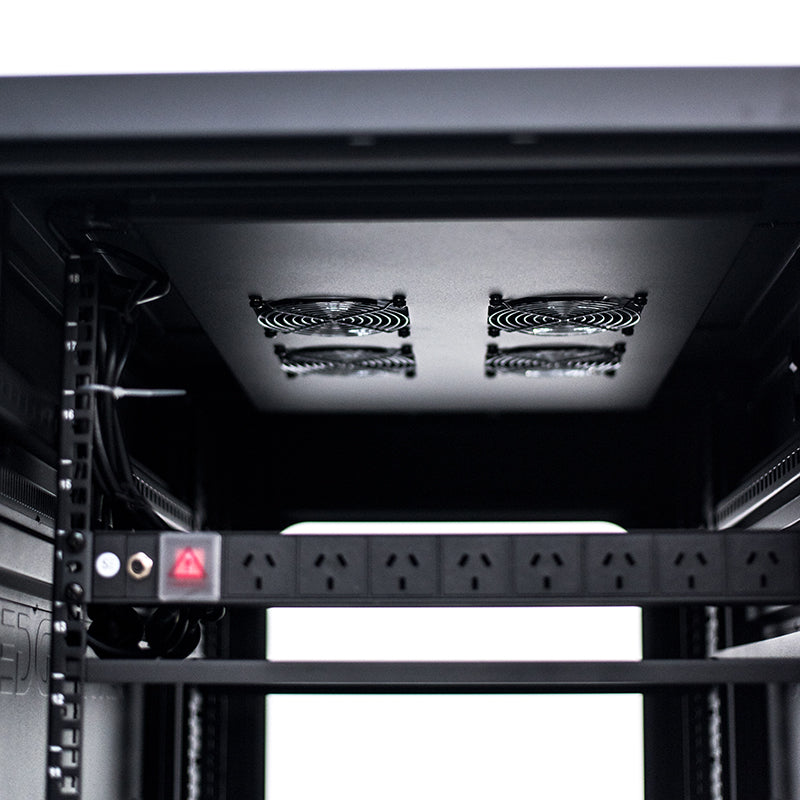

(1) 8 Way Horizontal PDU [8] 3 Pin AUS GPO Output; [1] 3 Pin  Aus Plug Input, 10A, 240V

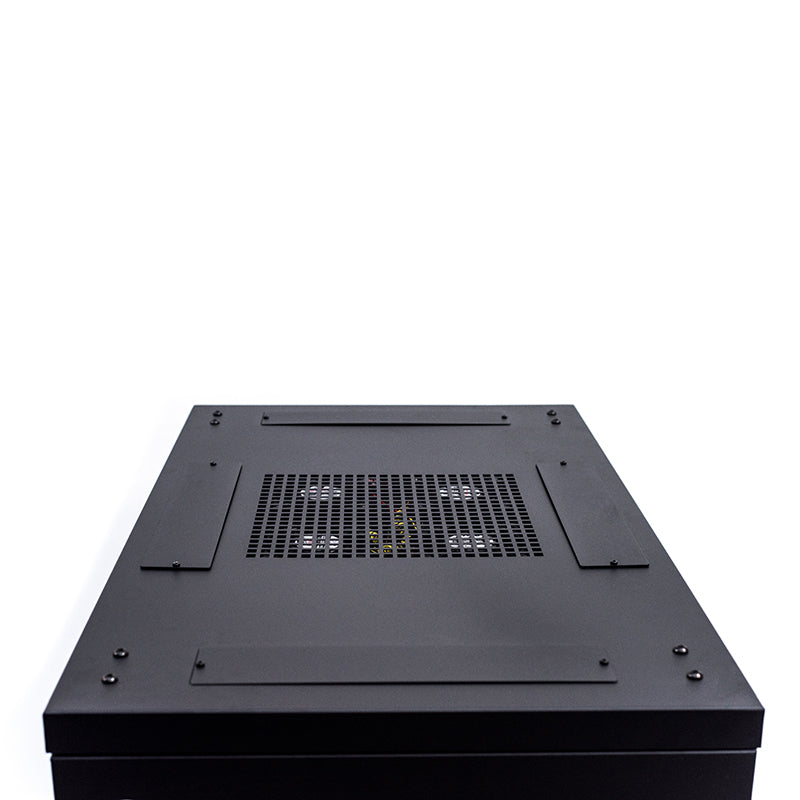

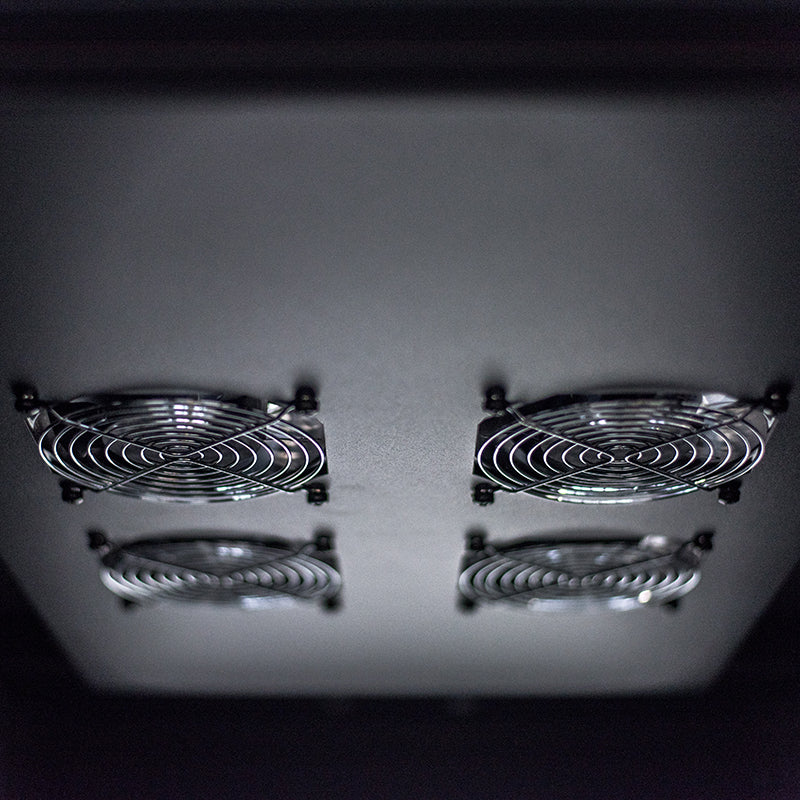

(1) 4 Way Roof Mount Fan

(2) Fixed Shelves (655mm Deep)

(4) Lockable Castors

(4) Stabilizing Feet

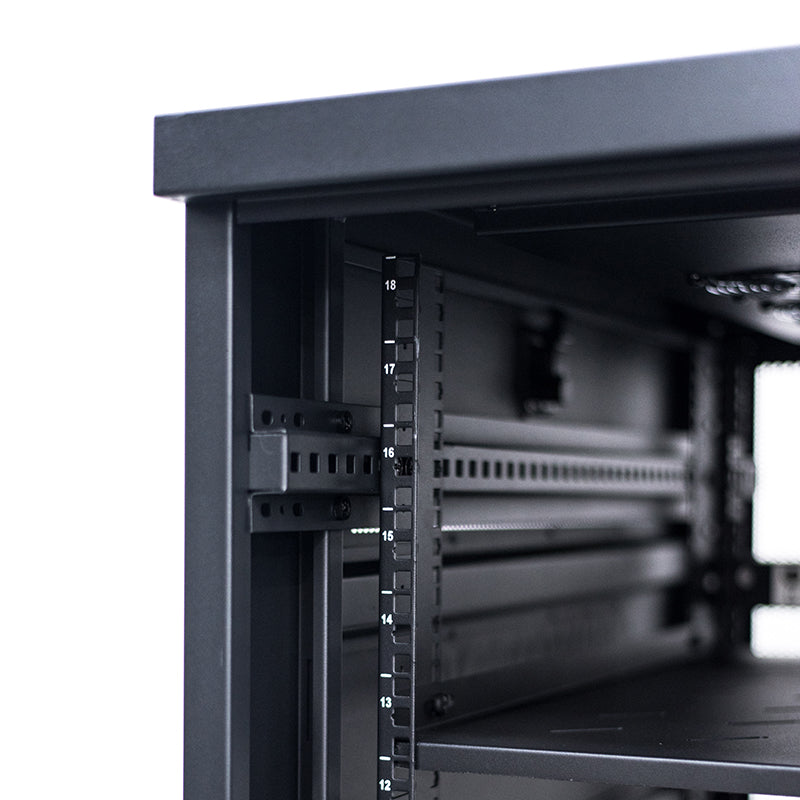

(4) Adjustable 19" Mounting Rails

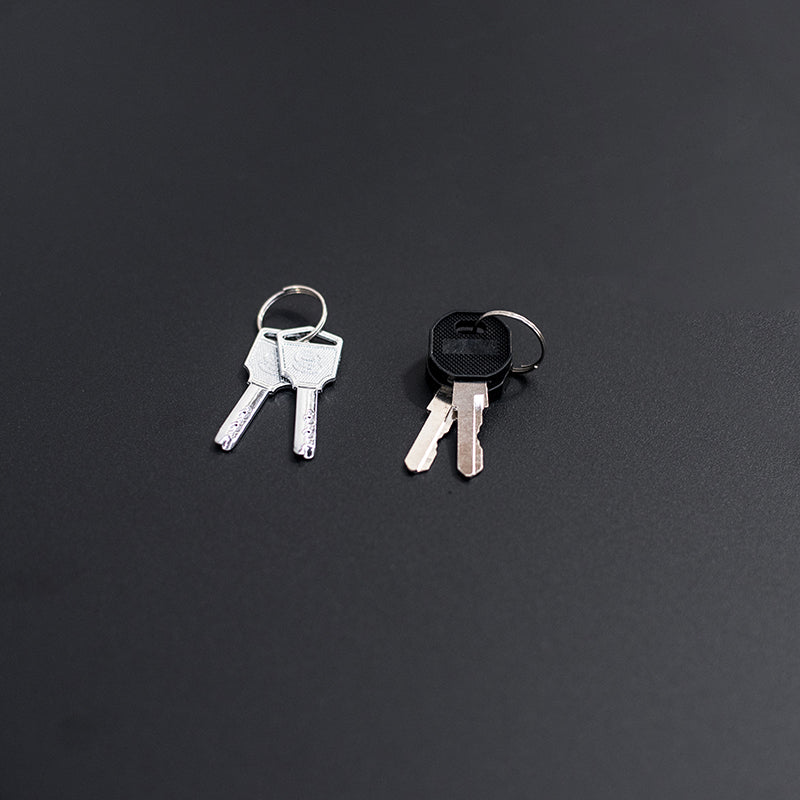

(2) Keys

(40) M6 Cage Nuts

(40) M6 Washers

(40) M6 Screws

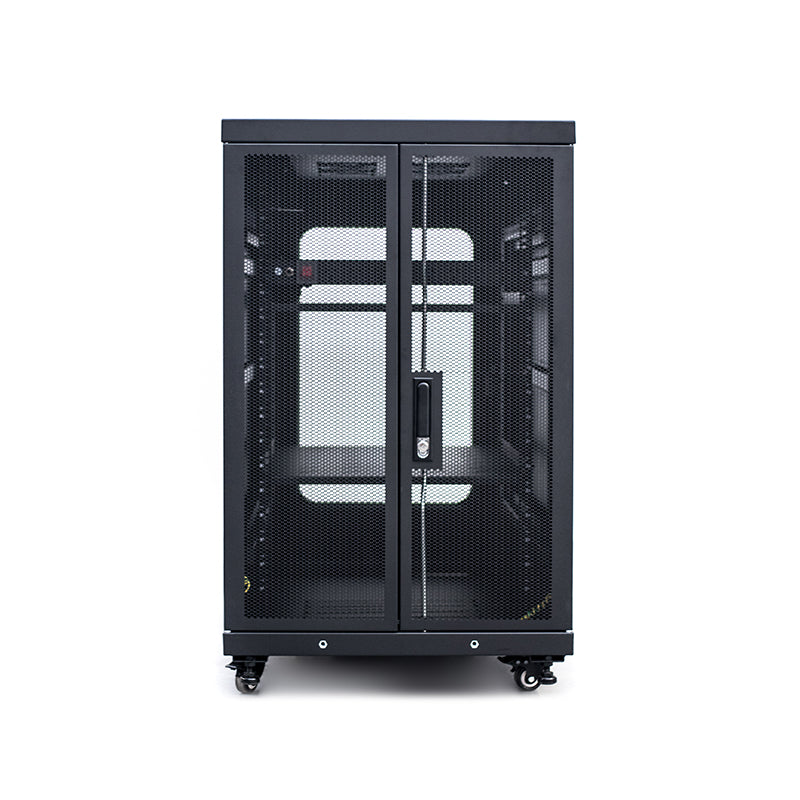

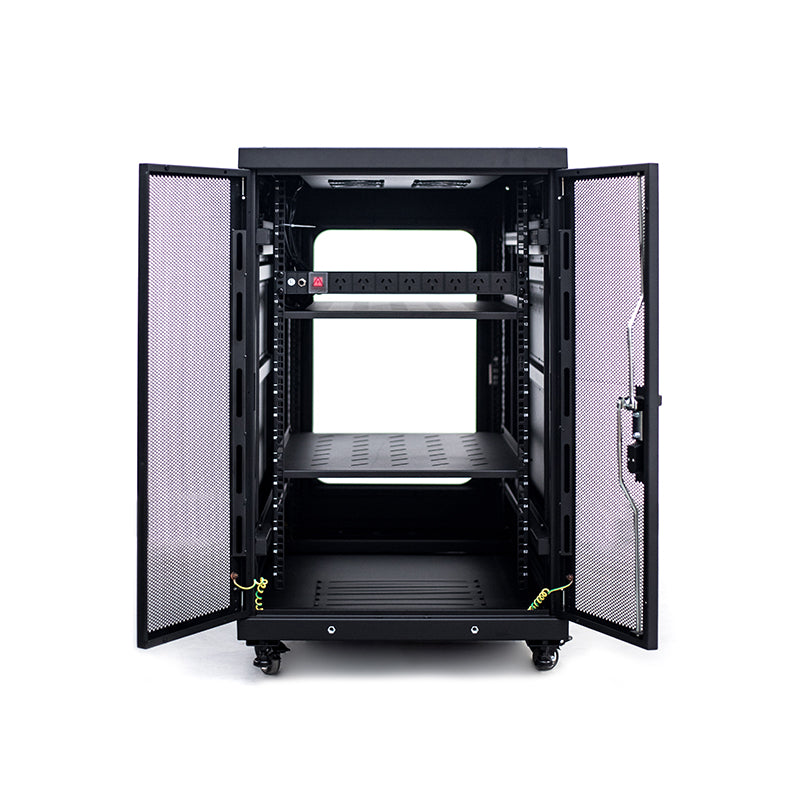

(1) Split Perforated Mesh Door

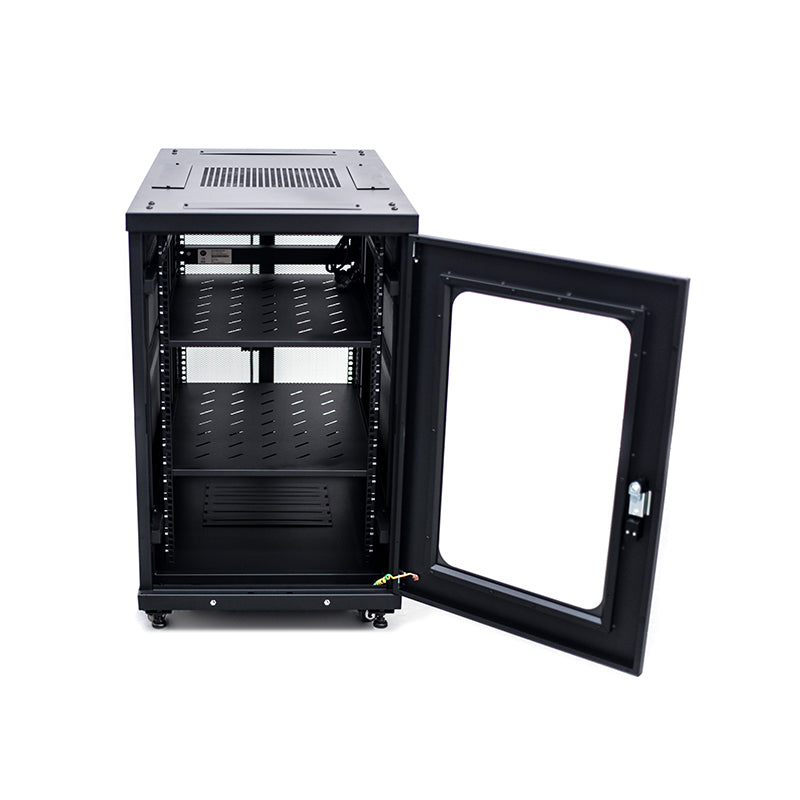

(1) Front Tempered Glass Door

(2) Lockable Side Panels

Grounding Lugs - Front Door, Rear Door, Side Panels

Earth Straps - Front Door & Rear Door
